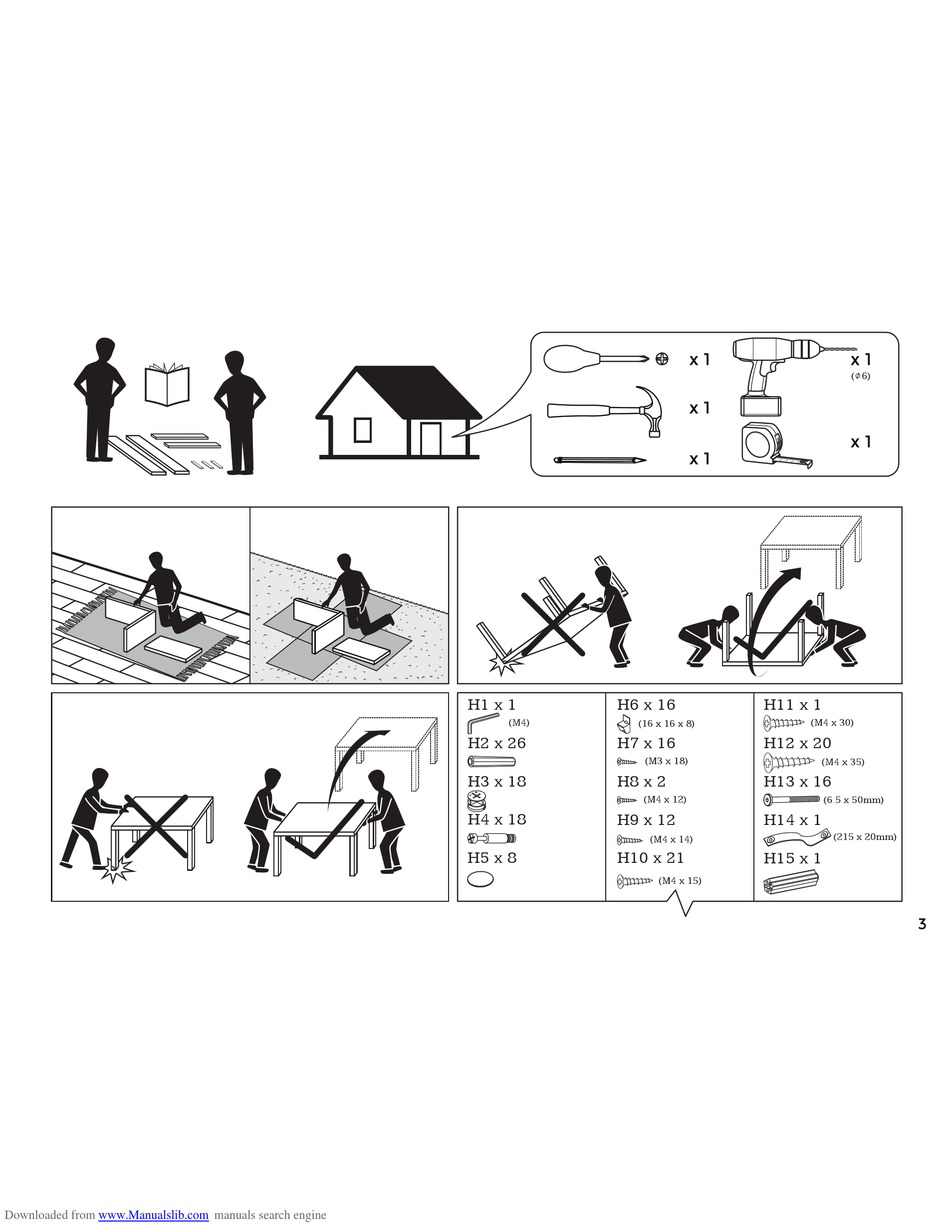

Made ELONA Montageanleitung Seite 3

Downloaded from www.Manualslib.com manuals search engine
H1 x 1 H6 x 16
(M4) (16 x 16 x 8)
H2 x 26 H7 x 16
(M3 x 18)
H3 x 18 H8 x 2
(M4 x 12)
H4 x 18 H9 x 12
H5 x 8 H10 x 21
x 1
x 1
x 1
H11 x 1
(M4 x 30)
H12 x 20
(M4 x 35)
H13 x 16
(6.5 x 50mm)
H14 x 1
(M4 x 14)
H15 x 1
(M4 x 15)
x 1
(∅6)
x 1
(215 x 20mm)
