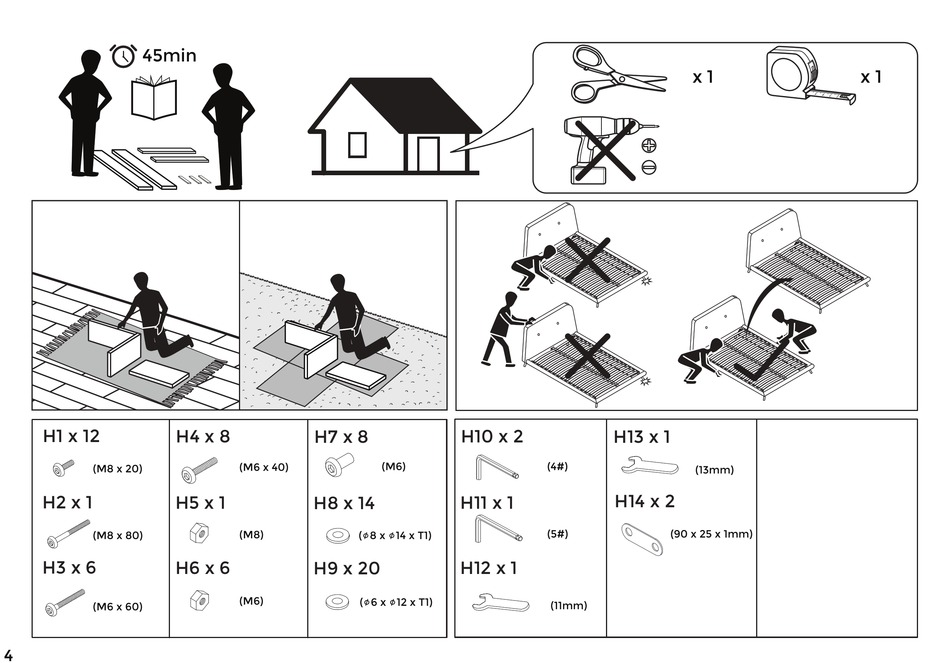

Made TANDY Montageanleitung Seite 4

45min
H1 x 12 H4 x 8
(M8 x 20)
H2 x 1 H5 x 1
(M8 x 80)
H3 x 6 H6 x 6
(M6 x 60)
4
H7 x 8
(M6 x 40) (M6)
H8 x 14
(M8)
(∅8 x ∅14 x T1)
H9 x 20
(M6)
(∅6 x ∅12 x T1)
H10 x 2
H13 x 1
(4#)
H14 x 2
H11 x 1
(5#)
H12 x 1
(11mm)
x 1
(13mm)
(90 x 25 x 1mm)
x 1
