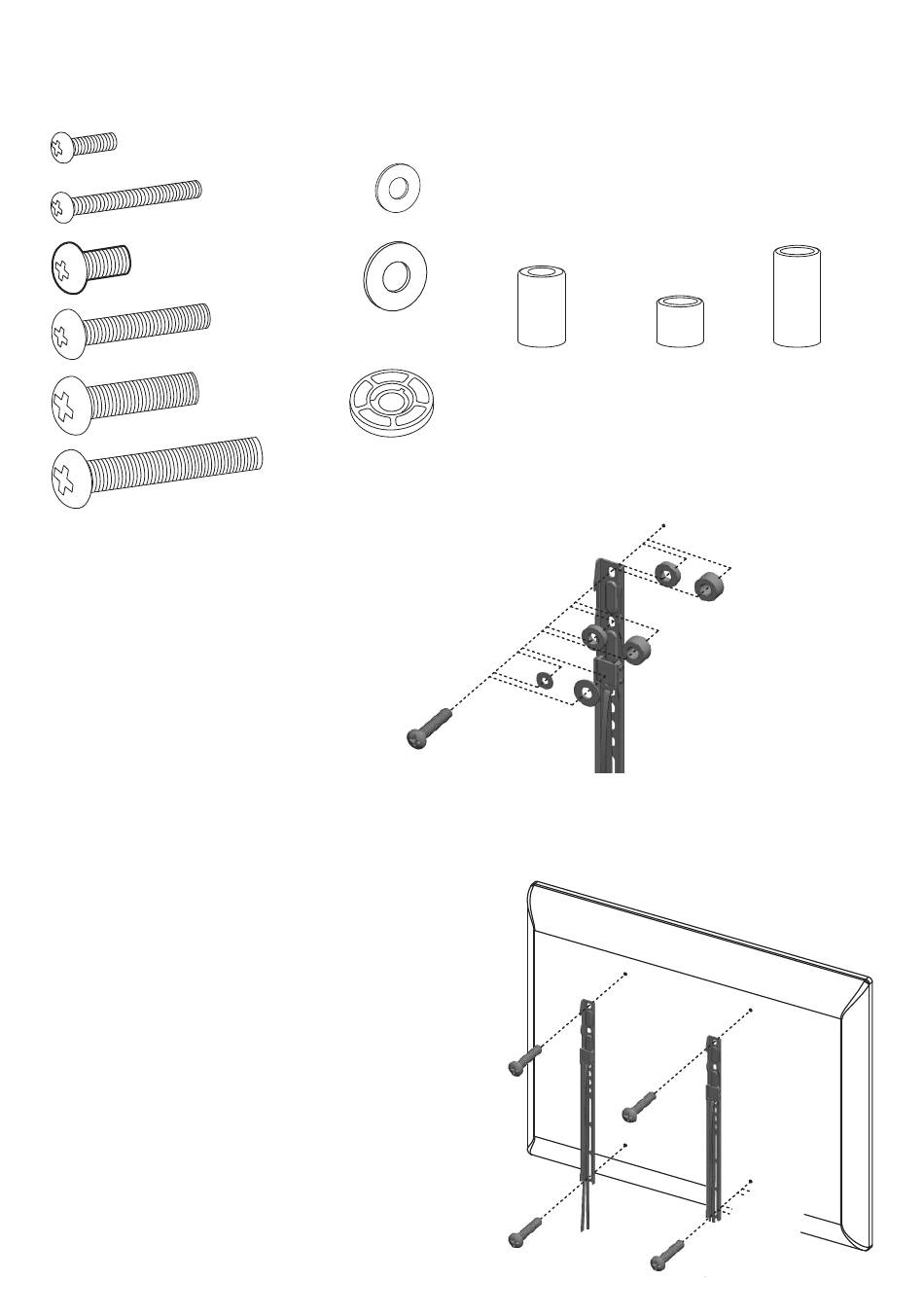

Find the one size screw that fi ts your TV. You will use the 4 screws of that size.
2
Use the 4 washers that fi t your screw size.
Spacers may be used to help screws/brackets attach without interference.
WARNING: When using included M4 hardware with this mount, the maximum weight of the TV/Monitor being
attached must follow VESA MIS-D specifi cation and cannot exceed 30.8 lbs (14 kg).
4x
M4 x 12 mm
4x
M4 x 30 mm
4x
M6 x 12 mm
4x
M6 x 35 mm
4x
M8 x 25 mm
4x
M8 x 50 mm
888-61-163-W-00 rev.D • 10/19
4x
M4
4x
M6
8x
M4/M6/M8 x 2.5 mm
4x
M4/M6 x 17 mm
M8 x 10 mm
4x
4x
M8 x 22 mm
