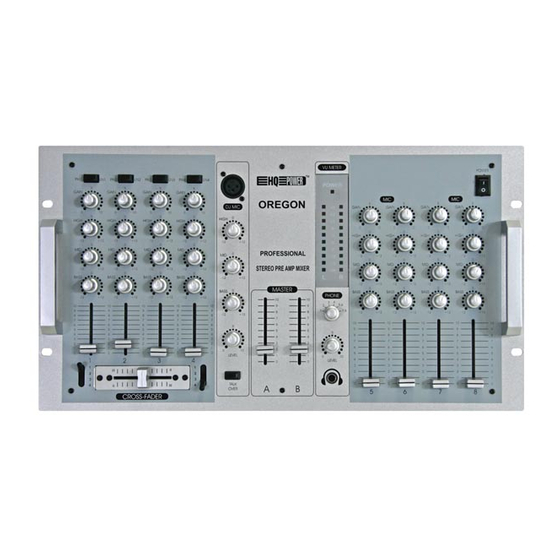

PROMIX902 – OREGON - 8-CHANNEL PROFESSIONAL DISCO MIXER
1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the PROMIX902! Read the manual carefully before bringing the device into service.
Before use, check that everything is inside the box: mixer unit, power cable and this manual.
Its features are:
• Stereo disco mixer with 4 phono/line channels and 4 microphone channels.
• 2 master outputs with separate volume fader.
• 1 DJ microphone input on the front panel with separate tone control and talk-over function.
• LED indications.
• 70mm cross-fader with channel selection.
• Stereo record output (RCA)
• ¼" jack input for a headphone.
2. Safety Instructions
• Do not touch the wires! Touching the wires may result in a dangerous electroshock.
• The manufacturer is not liable for defects or problems caused by the user's disregard of the manual's stipulations.
• Keep this device clear of heating devices.
• Do not switch the device on immediately if it has been exposed to drastic temperature fluctuations. Leave it off
until it has reached room temperature.
• Put the power switch in the OFF position before you connect the device to the mains.
• Do not place beverages near or on top of the device. Disconnect the device from the mains as soon as possible if
a liquid has penetrated the housing. Have the device checked by a qualified technician before using it again.
Damages caused by a liquid penetrating the housing are not covered by the warranty.
• The device falls under protection class II and features protective insulation.
• Never let the power cord come into contact with other cables.
• The available voltage should not exceed the voltage indicated on the AC voltage selector.
• The power cord should never be crimped or damaged by sharp edges. Check the device and the power cord from
time to time.
• Disconnect the device from the mains when not in use or when you are cleaning it.
• Only handle the power cord by the plug. Do NOT pull out the plug by tugging the cord itself.
• Place all faders and volume controls in their minimum position ("0") before activating the device.
• Keep the device clear of children and amateurs.
• An excessive volume can cause hearing damage.
• There are no serviceable parts inside the device. Consult an authorised dealer for maintenance and repairs.
3. General Characteristics
• This device is a professional mixing panel, allowing you to mix audio signals from different music sources. The
operating current is 230VAC / 50-60Hz and the device should only be used indoors.
