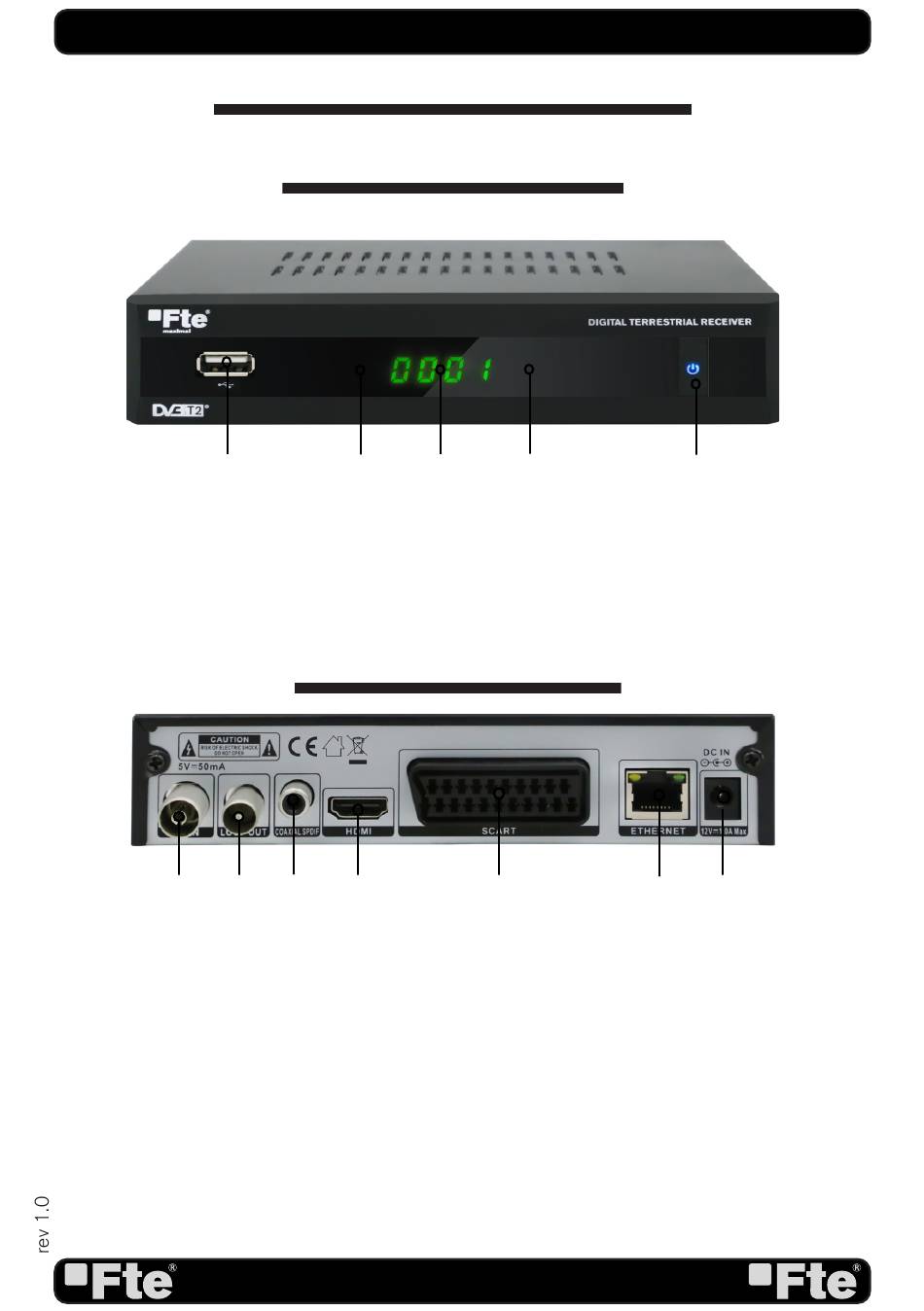

1. PAnel & reMote control descriPtion
1
1. USB: USB Connector 2.0
2. STAND BY LED: Shows the state of the receiver
3. DISPLAY: 4 Digits to display the program numbers.
4. REMOTE SENSOR: Detects the infrared signals from the remote control unit.
5. STANDBY BUTTON. Turn on or set to standby mode the receiver.
1
1. RF IN: Input of the digital tuner.
2. RF OUT: Ouput for cascading to others devices.
3. COAXIAL S/PDIF: Coaxial output for digital audio (AC3)
4. HDMI: HDMI output for connecting to a TV
5. TV SCART: Output SCART for the connection to a TV set.
6. ETHERNET: Network connection of the receiver.
7. DC IN: 12 VDC connection (power supply)
