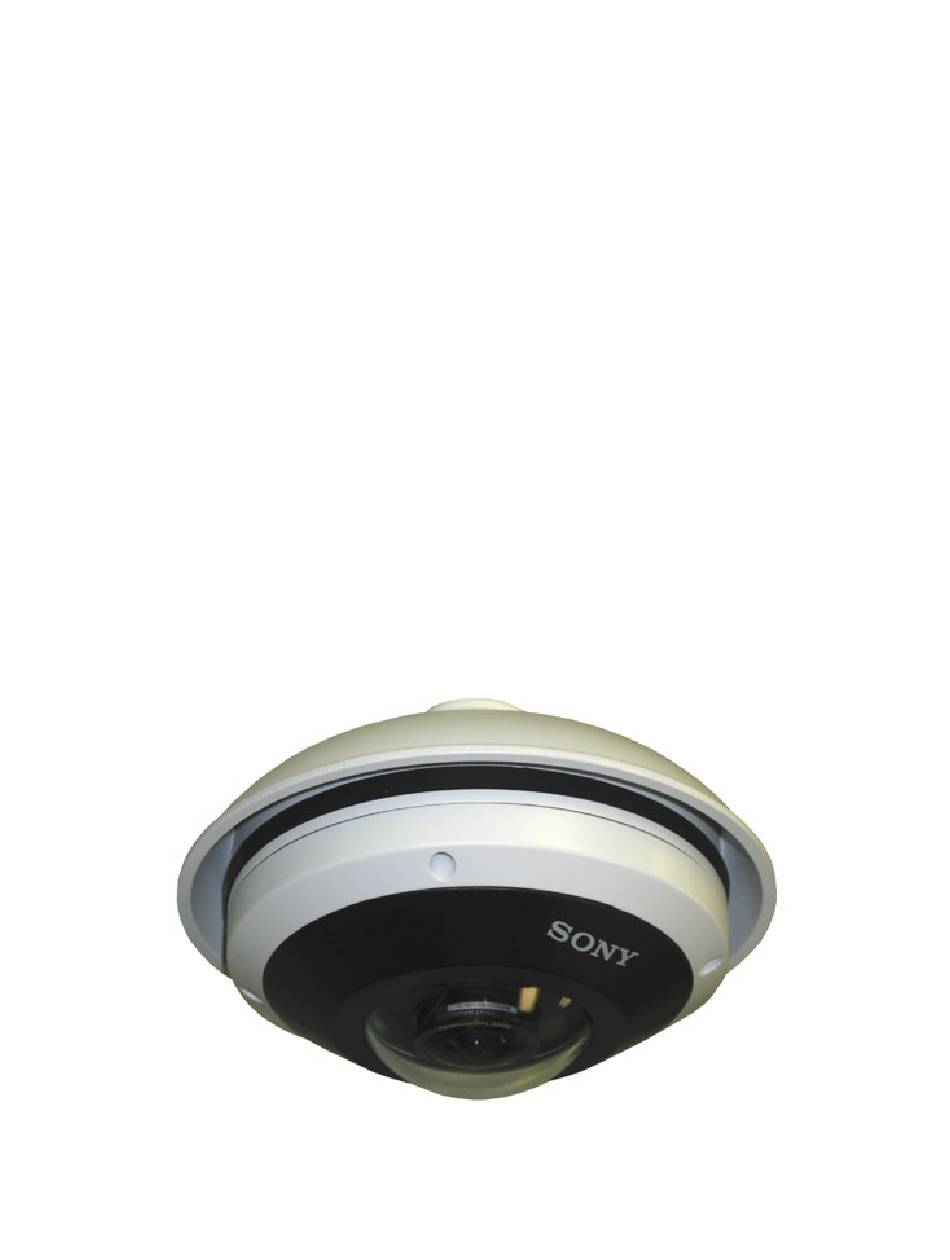

Installation and Operation Instructions for the following model:
UNI-MDPHM
Pendant Bracket
CONTENTS OF BOX:
(1) Pendant top (For use with SNC-HM662 camera model)
(1) Packet assembly
(3) M3 x 10mm bolts
(3) M3 lock washers
(1) 1" conduit locknut
(1) Pole sealing grommet
(1) Housing sealing gasket
(1) Roll of teflon tape
(1) Gasket
Moog
- designed
SONY
exclusively for
81-IN6720
03062014
Werbung
Verwandte Anleitungen für Moog UNI-MDPHM
Inhaltszusammenfassung für Moog UNI-MDPHM
- Seite 1 Moog - designed SONY exclusively for Installation and Operation Instructions for the following model: UNI-MDPHM Pendant Bracket CONTENTS OF BOX: (1) Pendant top (For use with SNC-HM662 camera model) (1) Packet assembly (3) M3 x 10mm bolts (3) M3 lock washers (1) 1”...
-
Seite 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read instructions - All the safety and operating instructions should be read before the unit is CAUTION operated. RISK OF ELECTRIC SHOCK Retain instructions - The safety and operating DO NOT OPEN instructions should be retained for future reference. Heed Warnings - All warnings on the unit and in the CAUTION: TO REDUCE THE RISK OF operating instructions should be adhered to. - Seite 3 Mount 1” NPT pendant pipe in the desired location (NOT supplied). Or use the UNI-WMB4 gooseneck wall mount bracket. Slide pole grommet onto 1” pipe. • Mount 1 "tubería colgante NPT en el lugar deseado (No suministrado). O utilice el cuello de cisne UNI-WMB4 soporte de pared. •...
- Seite 4 Arrow Mark Tighten and align the arrow mark of the pendant cap Tighten 1” nut. towards the center of the area of interest. • Apriete y alinee la marca de la flecha de la tapa pendiente hacia el • Apretar tuerca de 1 ". centro de la zona de interés.
- Seite 5 Attach (3) 3mm screw with lock washers to Remove cover from 360° camera using the tool the housing. provided with the camera. • Coloque el tornillo de (3) 3 mm con arandelas de seguridad • Quite la cubierta de la cámara de 360° utilizando la herramienta proporcionada con la cámara.
- Seite 6 Rotate the camera counterclock wise to hold. Secure 3mm screws and lock washers. • Asegure los tornillos de 3 mm y arandelas de seguridad. • Gire la cámara hacia la izquierda para sostener. • Fixez les vis de 3mm et les rondelles de blocage. •...
- Seite 7 ...
- Seite 8 Warranty For warranty information on this and other Sony Security Systems Products, please visit: http://pro.sony.com/bbsccms/services/files/servicesprograms/SecurityWarranty.pdf...
