Identifikation, Identification
Standardmontage
: PVP til venstre for PVM
Standard installation : PVP to the left of PVM
Normale Montage
: PVP links von PVM
Montage standard
: PVP à gauche de PVM
Montering og orientering af stik
Installation and plug orientation
Montage und Ausrichtung des Steckers
Montage et orientation de la prise
PVB
1
2
3
4
L
82
130
178
226
mm
L
3.23 5.12 7.01 8.90 10.79 12.68 14.57 16.46 18.35 20.24
in
10-2003
INSTRUCTIONS
Proportional Valve PVG 32
5
6
7
8
9
274
322
370
418
466
DKMH.PI.570.D3.93 520L0412
10
514

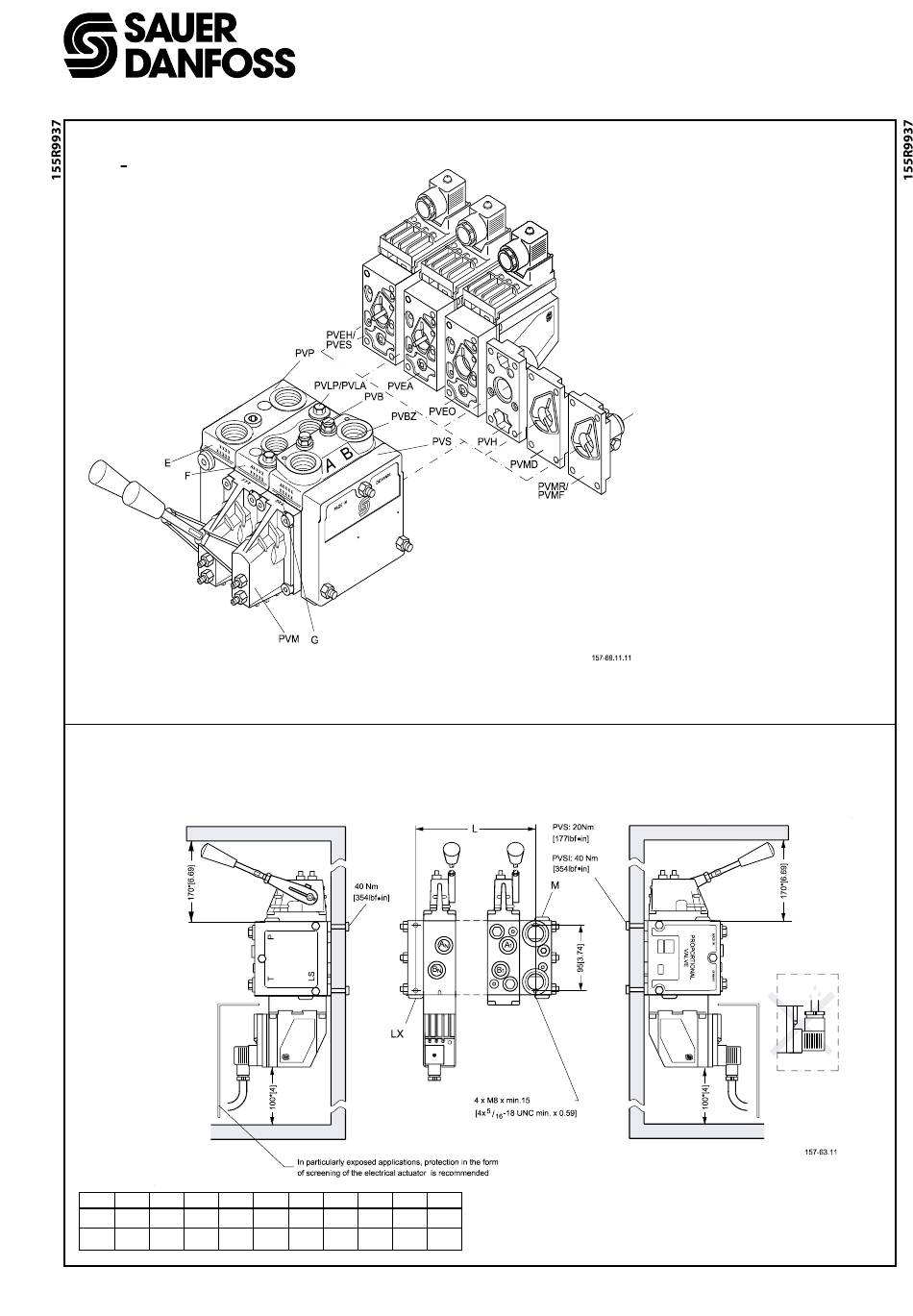

C: PVG-nummer, uge og år for montage
og serienummer
D: PVP-trykindstilling
E: PVP-nummer, uge og år for fremstilling
og serienummer
F: PVB - A-port, nummer, uge og år for
fremstilling og serienummer
G: PVM, uge og år for fremstilling
C: PVG-number, week and year of
installation and series number
D: PVP - pressure setting
E: PVP-number, week and year of
manufacturing and series number
F: PVB - A-port, number, week and year
of manufacturing and series number
G: PVM, week and year for manufacturing
C: PVG-Nummer, Woche und Jahr der
Montage und Seriennummer
D: PVP - Druckeinstellung
E: PVP-Nummer, Woche und Jahr der
Herstellung und Seriennummer
F: PVB - A-Anschluß, Nummer, Woche
und Jahr der Herstellung und Serien-
nummer
G: PVM, Woche und Jahr der Herstellung
C: PVG-numéro, semaine et année de
montage et numéro sériel
D: PVP - réglage de pression
E: PVP-numéro, semaine et année de
fabrication et numéro sériel
F: PVB - orifice-A, numéro, semaine et
année de fabrication et numéro sériel
G: Semaine et année de fabrication
* Plads til demontage
* Room for dismantling
* Platz für Demontage
* Espace pour démontage
