Atlantic Oasis Bedienungsanleitung Seite 3

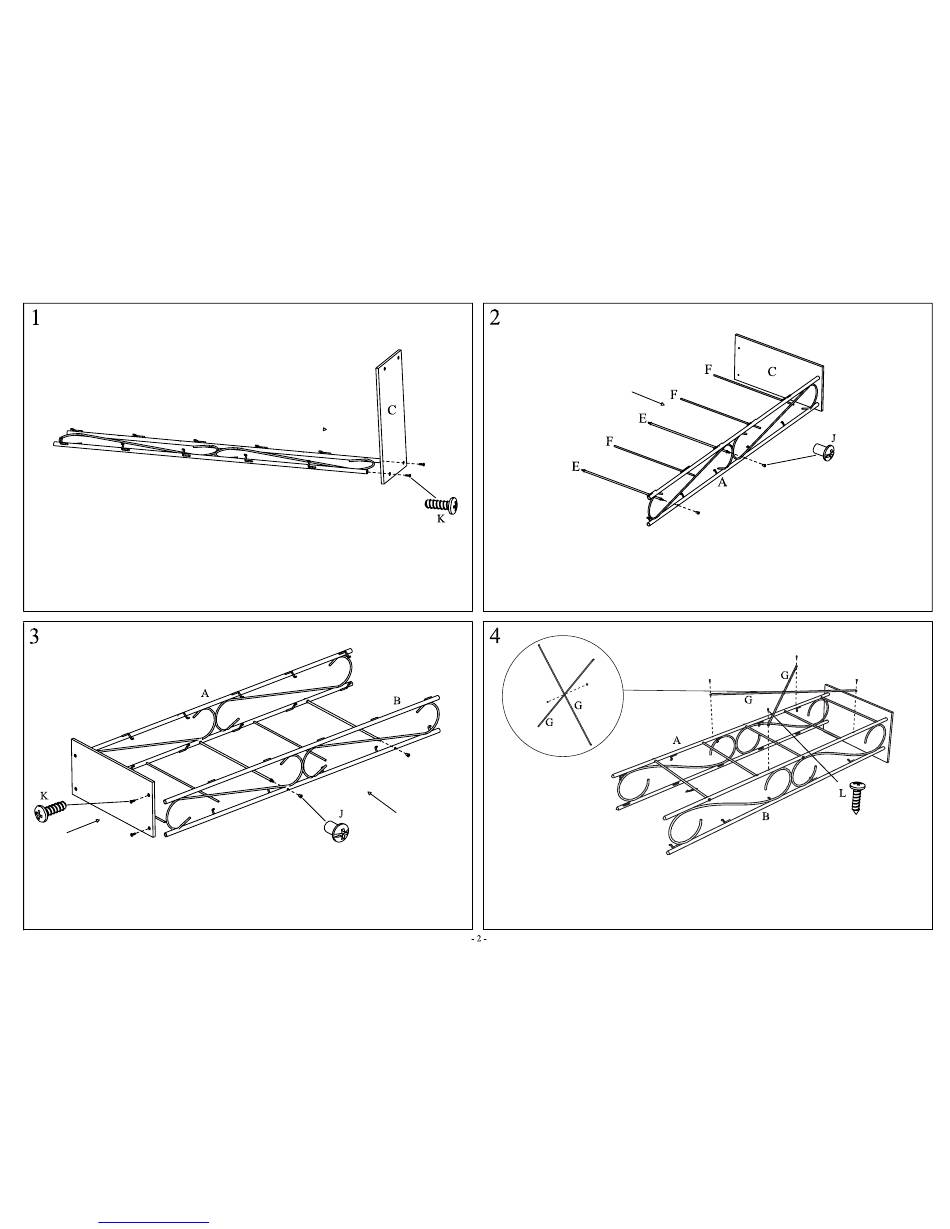

1 – Attach frame (A) to base (C) with screws (K).
3 – Attach frame (B) to rods (E) and (F) with screw nuts (J). Fasten base (C) with screws (K).
Downloaded from www.Manualslib.com manuals search engine
2 – Insert rods (E) and (F) into the holes of frame (A). Screw tubes (E) with screw nut (J).
N
M
4A
4 – Attach brackets (G) together with screw (M) and nut (N) (See 4A). Attach brackets to frames
(A) and (B) with screws (L).
