Teltonika TRB245 Kurzanleitung

Vorschau ausblenden
1
2
3
4
5
6

Werbung

Quicklinks

Diese Anleitung herunterladen
Quick Start Guide v1.2
https://wiki.teltonika-networks.com/

Werbung

loading

Verwandte Anleitungen für Teltonika TRB245

Inhaltszusammenfassung für Teltonika TRB245

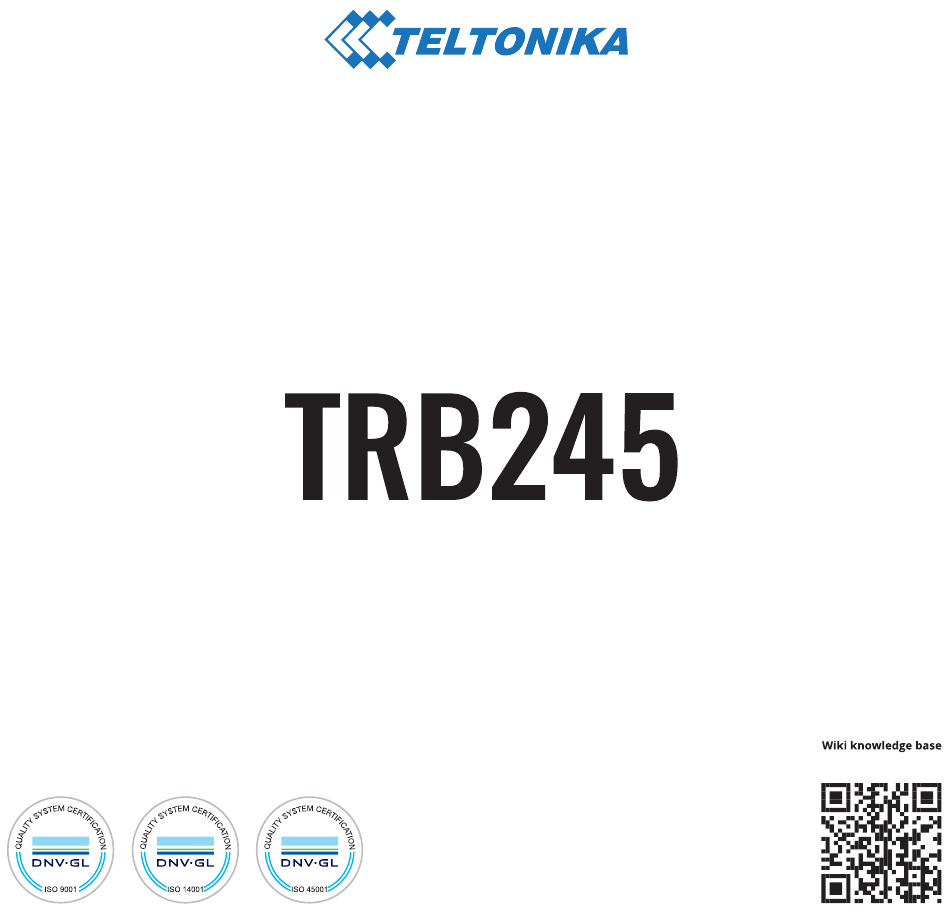

  • Seite 1 Quick Start Guide v1.2 https://wiki.teltonika-networks.com/...

  • Seite 2: Front View

    FRONT VIEW Input/output connector Ethernet port Power LED BACK VIEW Mobile signal strength indication LEDs Mobile network type LEDs GPS antenna connector Reset Mobile antenna connector button...

  • Seite 3: Hardwareinstallation

    + - 9-30 VDC positive power pin 16 PIN CONNECTOR PINOUT D1, D2, D3 - Configurable digital Input/Output pins. Open collector output, max output 30 V, 300 mA or Digital input where 0-6 V detected as logic low and 8-30 V – logic high. CTS - RS232 clear data to send pin (output).

  • Seite 4: Device Configuration

    DEVICE CONFIGURATION 1. Power on the device and connect the Ethernet cable to your computer. 2. Allow the gateway to boot up. This might take up to 60 seconds. 3. To enter the gateway Web interface (WebUI), type http://192.168.1.1 into the URL field of your Internet browser. 4.

  • Seite 5: Safety Information

    SAFETY INFORMATION TRB245 gateway must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments. Hereby, TELTONIKA declares that this TRB245 is in compliance with the essential requirements and other relevant provisions of [EN] English Directive RED.
  • Seite 6 Más información en https://wiki.teltonika-networks.com/ [FI] Käyttöohje: Kytke virtalähde päälle laitteen. Avaa 192.168.1.1 in selaimen määrittää tuotteen. Lisää tietoa https://wiki.teltonika-networks.com/ [FR] Mode d'emploi: Connectez l'adaptateur d'alimentation pour allumer l'appareil. Ouvrez 192.168.1.1 dans un navigateur Web pour configurer le produit. Plus d'informations dans https://wiki.teltonika-networks.com/...
