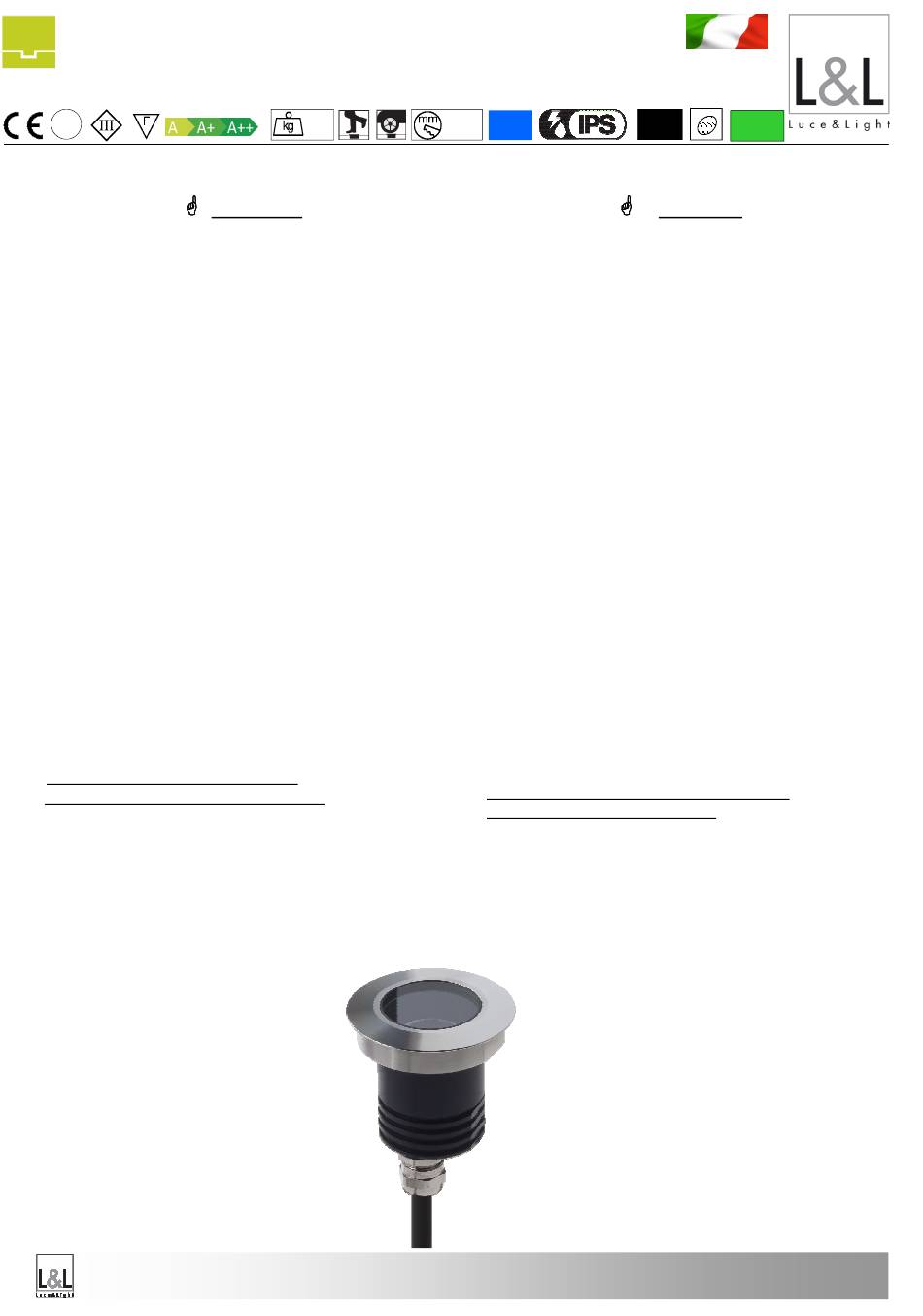

SMOOTHY 1.0
Istruzioni per l'installazione -
LED
TECH
IT
Consigliamo di leggere con attenzione le seguenti istruzioni
e di conservarle.
IMPORTANTE:
Prima di procedere all'installazione o alla manutenzione disinserire
•
sempre l'energia elettrica.
L'apparecchio deve essere installato da personale qualificato.
•
Modifiche o manomissioni del prodotto, non autorizzate dall'azienda,
•
annullano ogni condizione di garanzia.
L'azienda L&L Luce&Light declina ogni responsabilità qualora l'instal-
•
lazione non avvenga secondo le norme vigenti.
Le informazioni contenute nel presente documento possono essere
•
modificare in qualsiasi momento senza preavviso e non comportano
l'assunzione, nemmeno implicita, di alcuna obbligazione da parte della
L&L Luce&Light.
COLLEGAMENTI ELETTRICI:
Le lampade a LED funzionano con corrente costante.
•
Questo prodotto deve essere collegato in serie rispettando la polarità.
•
Per la scelta degli alimentatori fare attenzione alla corrente alla quale
•
vanno alimentati i LED e alla potenza massima assorbita dagli stessi.
Il numero totale dei LED da alimentare va contato per singola
•
lampada (es: 2 faretti a 3 LED da 1W = totale 6 LED da 1W= 6W).
L'impianto va alimentato solo dopo che tutti i faretti sono collegati.
•
Collegare i singoli faretti con alimentatore in tensione può comportare la
rottura del faretto per sovratensione a vuoto.
Lampade e alimentatori devono essere installati in scatole o luoghi con
•
circolazione d'aria per permettere un naturale scambio di calore senza
che vi sia un surriscaldamento dei dispositivi.
L'alimentatore elettronico è stabilizzato in corrente, quindi entro certi
•
limiti compensa automaticamente la caduta di tensione dovuta alla
lunghezza dei cavi; consigliamo comunque di non superare i 30mt.
Utilizzare alimentatori tipo Selv o equivalenti.
•
Non connettere interruttori sul circuito secondario.
•
NOTE:
Per eseguire il collegamento dei cavi utilizzare muffole con
•
resina o nastro autoagglomerante al fine di evitare infiltrazio-
ni d'acqua.
L&L Luce&Light srl
Via Della Tecnica, 42 - 36031 Povolaro di Dueville (VI) - Italy
Tel. +39 0444 360571 - Fax +39 0444 594304
Installation instructions
0.27
ATTENZIONE
www.lucelight.it - lucelight@lucelight.it
Ø48
IP67
EN
Please read the following instructions carefully.
IMPORTANT:
Although LED runs on a very low voltage, always cut off the power sup-
•
ply before installing the LED light or subjecting it to maintenance.
Unauthorised alterations or tampering of the product will invalidate all
•
the conditions of guarantee.
This fixture must be istalled by a qualificate electrician.
•
L&L Luce&Light is not resposable if its fixtures are not installed in
•
according to local safety standards.
Data contained in this document may be changed at any moment with-
•
out prior notice and do not place L&L Luce&Light under any implicit or
explicit obligation.
ELECTRICAL CONNECTIONS:
LED lights run at constant current.
•
LED lights must be connected in series respecting polarities.
•
As for the choice of the power supplies, please consider the current
•
through which they are feeded and the max power consumption of
LEDs you have to install.
The total number of LEDs to be feeded must be counted for each single
•
spot (e.g. 2 spots with 3 LEDs 1W each= 6 LEDs 1W in all= 6W).
The system must be feeded only if all the spots are connected. The
•
connection of the single spots with the power supply in voltage may get
the spot broken due to over-tension in vain.
The power supplies must be installed in aerated rooms, far from heat
•
sources. A situation of overworking or a lack of air circulation will not
permit a natural dissipation.
The electronic power supply is current-stable, therefore it partially com-
•
pensates the voltage-drop problems related to the cable length;
anyhow we suggest not to overcome 30 metres.
Use only Selv type electronic power supply or similar.
•
Never use switches on secondary circuit.
•
NOTES:
Wire connections must be realized with self amalgamating
•
scotch or similar.
OUTDOOR/INDOOR
OUTDOOR/INDOOR
OUTDOOR/INDOOR
Made in Italy
T 40°
RoHS
IK07
compliance
Ta
25°
