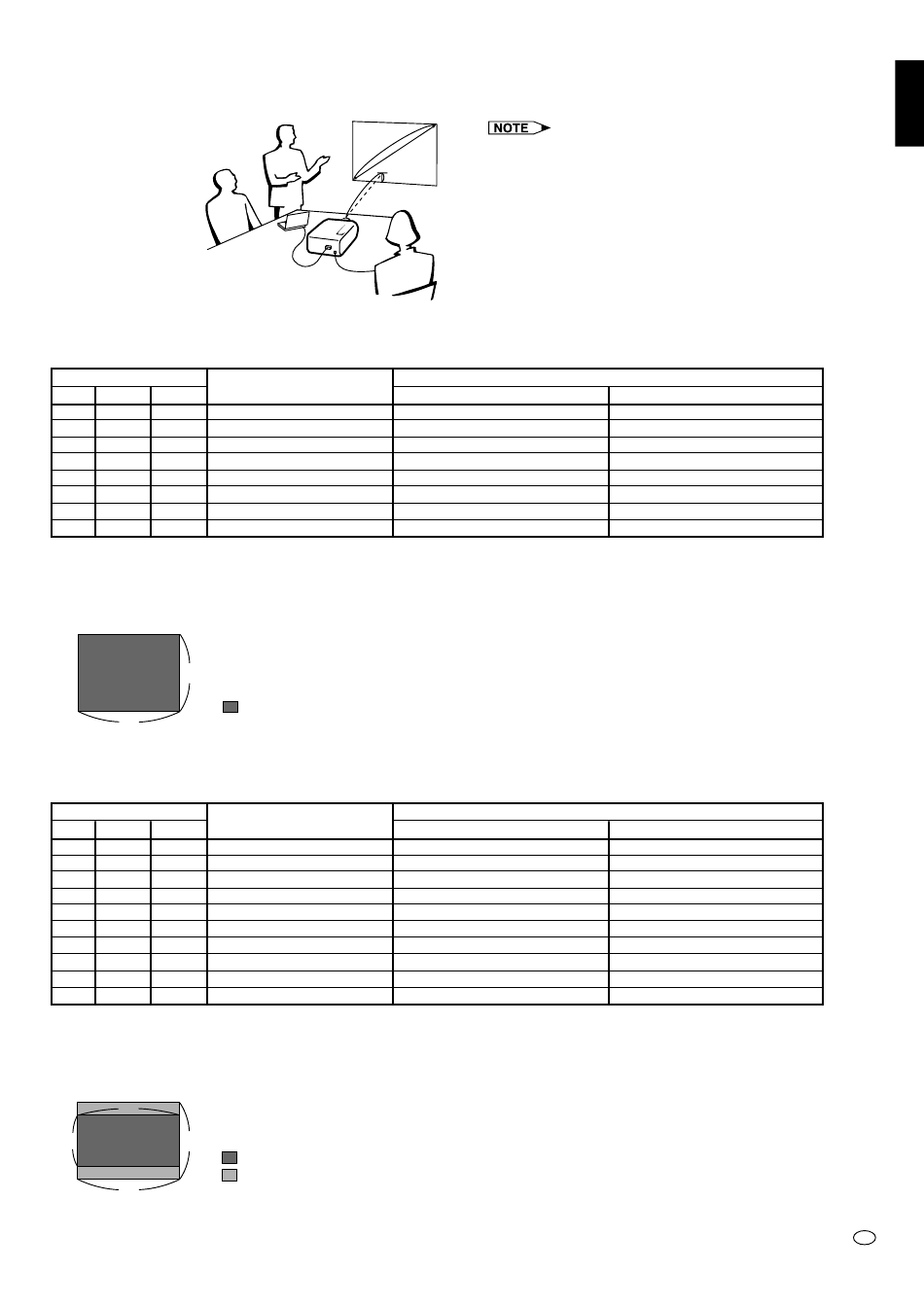

Throw distance chart
Once the lens is installed, set the picture size and the projection distance, referring to the table below.
XG-V10X Series <XGA model>
Computer and Video Input (4:3)
Screen size
Diag.
Width
Height
600"
480.0"
360.0"
500"
400.0"
300.0"
400"
320.0"
240.0"
300"
240.0"
180.0"
200"
160.0"
120.0"
120.0"
150"
90.0"
100"
80.0"
60.0"
84"
67.2"
50.4"
The formula for screen size and projection distance
l=(0.1406x+0.0672)×3.28
h1(Upper lens shift position)=0.3x
h2(Lower lens shift positon)=–0.02x
3
4
Video Input (16:9)
Screen size
Diag.
Width
Height
500"
435.80"
245.15"
400"
348.64"
196.12"
300"
261.47"
147.08"
200"
174.32"
98.05"
150"
130.74"
73.54"
133"
115.92"
65.20"
106"
92.39"
51.97"
100"
87.16"
49.03"
92"
80.18"
45.10"
84"
73.21"
41.18"
The formula for screen size and projection distance
l=(0.1532x+0.0672)×3.28
h1(Upper lens shift position)=0.245x
h2(Lower lens shift positon)=–0.103x
16
9
3
4
X
H
L
Projection distance (L)
276'7" (84.3m)
230'5" (70.2m)
184'4" (56.2m)
138'2" (42.1m)
92'0" (28.1m)
69'0" (21.0m)
45'11" (14.0m)
38'6" (11.7m)
x: Screen size (diag.) (inches)
l: Projection distance (L) (feet)
h: Lens center to the lower edge of the screen (H) (inches)
: Screen size and Picture size
Projection distance (L)
251'1" (76.5m)
200'1" (61.2m)
150'7" (45.9m)
100'3" (30.6m)
75'2" (22.9m)
66'7" (20.3m)
53'1" (16.2m)
50'0" (15.3m)
46'0" (14.0m)
42'0" (12.8m)
x: Screen size (diag.) (inches)
l: Projection distance (L) (feet)
h: Lens center to the lower edge of the screen (H) (inches)
: Screen size and Picture size (16:9)
: Signal mask area
• There is error of ±3% in the formula below.
• Values with a minus (–) sign indicate the distance of
the lens center below the bottom of the screen.
Lens center to the lower edge of the screen (H)
Upper lens shift position (h1)
15'0" (457.2cm)
12'6" (381.0cm)
10'0" (304.8cm)
7'6" (228.6cm)
5'0" (152.4cm)
3'9" (114.3cm)
2'6"
(76.2cm)
2'1"
(64.0cm)
Lens center to the lower edge of the screen (H)
Upper lens shift position (h1)
10'3" (311.3cm)
8'2" (249.1cm)
6'2" (186.8cm)
4'1" (124.5cm)
3'1"
(93.4cm)
2'9"
(82.8cm)
2'2"
(66.0cm)
2'1"
(62.3cm)
1'11"
(57.3cm)
1'9"
(52.3cm)
Lower lens shift position (h2)
–11.7" (–29.8cm)
–9.8" (–24.8cm)
–7.8" (–19.8cm)
–5.9" (–14.9cm)
–3.9"
(–9.9cm)
–2.9"
(–7.4cm)
–2.0"
(–5.0cm)
–1.7"
(–4.2cm)
Lower lens shift position (h2)
–4'4" (–131.4cm)
–3'5" (–105.2cm)
–2'7" (–78.9cm)
–1'9" (–52.6cm)
–1'4" (–39.4cm)
–1'2" (–35.0cm)
–11.0" (–27.9cm)
–10.4" (–26.3cm)
–9.5"
(–24.2cm)
–8.7"
(–22.1cm)
3
