7. Description of the instrument
5
4
1

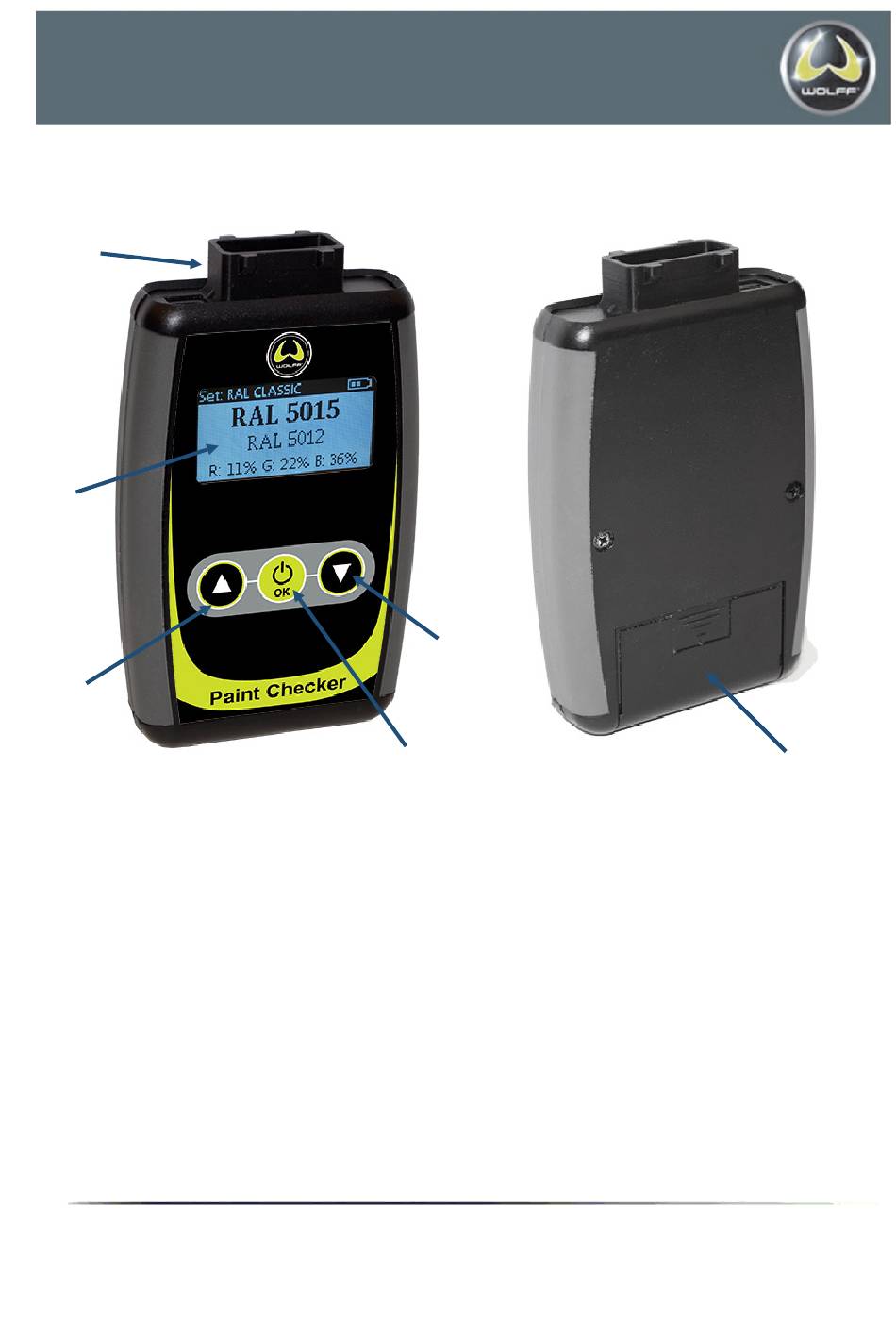

Figure 2. Front panel
1. Menu navigation button – scrolling up;
2. Turn-on/off button; menu option confirmation;
3. Menu navigation button – scrolling down;
4. LED display that shows:
a. color closest to the sample under examination,
b. color second closest to the sample under examination,
c. percentage of components in the RGB color space,
d. currently selected color palette,
e. battery charge indicator;
5. Color sensor;
6. Battery shutdown.
