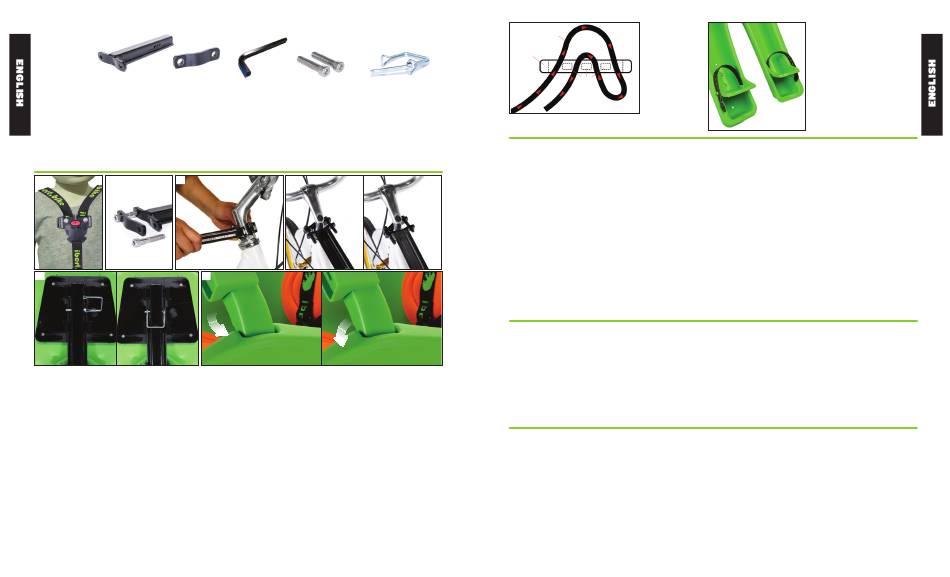

PARTS LIST:

A: T-Bar
B: Bracket
C: Hex Key
A B
D: Cap Screws
E: Locking Pin
ALL PICTURES SHOWN ARE FOR REFERENCE PURPOSE ONLY. ACTUAL PRODUCT SIZE AND APPEARANCE
MAY VARY. RETAIN TOOLS FOR FUTURE USE TO PROPERLY MAINTAIN THE PRODUCT.
WARNING: For safety the iBert by Kazam child carrier must be installed in strict accordance with the instructions
provided. The instructions should be read carefully and each step followed carefully and completely. Check the
product regularly to be certain all fasteners are tightened securely and all components are in working condition and
function as intended. Proper care and maintenance are essential to product safety.
1 2 3
5 6
ASSEMBLY INSTRUCTIONS:
1. Remove the seat from the box and set it on a carpeted floor. Place your child in the seat and adjust the height of the 3
point buckle so the buckle is 2 inches below the child's chin. Adjust each shoulder strap so that it is snug on the child's
shoulders and lock the shoulder strap into place with the two buckles to hold the child securely in the seat.
2. Take the child out of the seat. Looking at the bottom of the seat, remove the assembled T-bar and bracket from the
seat plate by removing the ring pin and clip. Then remove 1 cap screw and remove from the bracket.
3. Place the partially assembled pieces around
(It may be necessary to raise the handle bar stem to accommodate the T-bar assembly.)
4. Tighten both screws the same length with the hex key so there is even pressure on the bracket. Before tightening the
screws completely, make sure the T-bar is aligned with the tire and frame. DO NOT OVERTIGHTEN!
5. Slide seat onto the T-bar as far forward as possible. Secure the T-bar to the seat plate by sliding the locking pin through
the holes and rotating the clip around and then snapping it over the end of the pin.
6. Snap the right side of the lap bar assembly firmly into the two holes in the seat recess. You can then pivot the lap bar
assembly down and snap it into place.
7. Holding onto the bike, unlock the lap bar and pivot it up. Put the child in the seat and pull each strap over the child's
shoulders and lock into the buckle. Push down the lap bar until it locks.
8. ENJOY YOUR RIDE!!!
NOTE: If you have difficulty in assembling the seat, have a bike shop finish the assembly for you.
E
C D
4
CORRECT INCORRECT
PIVOT
the handlebar stem and insert the other

HARNESS ADJUSTMENT:

Harness Webbing
Buckle
(Cross Section)
Tabs
Red arrows
indicated how webbing
travels through buckle.
It is important to properly thread the seat harness
through the two rear buckles as indicated to
ensure that there is no slippage while riding.
PLEASE READ & FOLLOW THESE INSTRUCTIONS
FOR SAFETY WHEN USING YOUR IBERT BY KAZAM BICYCLE CHILD CARRIER
WARNING:
1. This child carrier is designed to carry children that weigh up to 38 lbs. - 17 kgs. DO NOT carry a child that weighs
more than this weight or a child unable to support itself in the seat.
2. THE RIDER AND THE CHILD BEING CARRIED SHOULD WEAR HELMETS THAT MEET NATIONALLY
RECOGNIZED STANDARDS FOR BICYCLE HELMETS.
3. DO NOT carry a child, who is less than 12 months of age, in this child carrier. To be a passenger, the child must
be able to sit up straight with the head held upright WHILE WEARING A BICYCLE HELMET. A doctor should be
consulted about any child who of questionable development age.
4. DO NOT us this child carrier on rough or off - road conditions.
5. DO NOT make any modifications to this child carrier.
6. DO NOT permit any part of the child's body or clothing, shoelaces, etc. to come in contact with the moving parts
of the bicycle.
7. DO NOT permit the child to carry refreshments, food or toys while riding in the child carrier. These items may
distract the cyclist and if thrown by the child, they may cause loss of control of the bicycle.
8. ALWAYS attach the security harness snugly around the child.
9. DO NOT leave the child unattended in the iBert by Kazam seat.
10. DO NOT leave the child in the seat when an adult is not present and the bicycle is supported only by the
kickstand.
CAUTION:
1. AVOID riding in inclement weather or hazardous conditions, including temperatures below freezing that could
cause the child to suffer frostbite or other injuries.
SNAP 2. Additional luggage or accessories should not be attached to the bicycle child carrier. If additional loads are to be
carried on the bicycle, they should be placed only in carriers designed specifically for that purpose.
3. When the child carrier is not in use, buckle the security straps together to prevent the straps from dangling or
presenting a hazard to the bicyclist.
4. Before each ride, ensure that the mounted child carrier does not interfere with the cyclist's ability to brake, pedal
or steer the bicycle.
NOTE: WHEN RIDING THE BIKE WITHOUT THE SEAT ATTACHED WE
STRONGLY RECOMMEND THAT YOU REMOVE THE T-BAR FROM THE BIKE.
screw.
NOTICE:
1. Any load added to a bicycle will lessen the stability of the bicycle and alter its riding characteristics. Do not
attempt to carry a load that is heavier than you can readily control. Match the load to your weight, strength, and
size.
2. Keep these instructions handy for reference when moving the bicycle child carrier to another bicycle or doing
maintenance or making adjustments to the bicycle.
3. The bicycle, to which the child carrier is attached, must be in good working order, of a type appropriate for the
additional load and of a proper size and adjustment for the rider. The cyclist should consult the information
supplied with the bicycle or obtain information from the manufacturer or supplier of the bicycle to determine how
to make the necessary adjustments. A properly sized and adjusted bicycle will improve both the comfort and
safety of the ride.
4. Before each use, check to determine that all fasteners are in place and secure. Check them frequently and ensure
that they have not loosened due to vibration.
5. Always remove the child carrier from the bicycle when the bicycle is being transported on a motor vehicle. This
is necessary because the force of the high wind on the child carrier, may degrade or damage the carrier to the
point where it may not perform reliably. This carrier has been designed for easy and rapid removal from the
bicycle. When reattaching the child carrier, check all fasteners and tighten as required.
FOOT CUP ADJUSTMENT:
1. With child removed from
carrier, unscrew both
locking screws from one
leg of the seat.
2. Align foot cup to desired
position.
3. Reinsert and tighten
screws. Verify foot cups
are stable for passenger.
Do not overtighten.
4. Repeat steps 1-3 with
opposite foot cup.
