ESC Setup
1
Setup Before Starting
Important!
You must set up the ESC before running the first time. Initial setup, it is not required before every run.

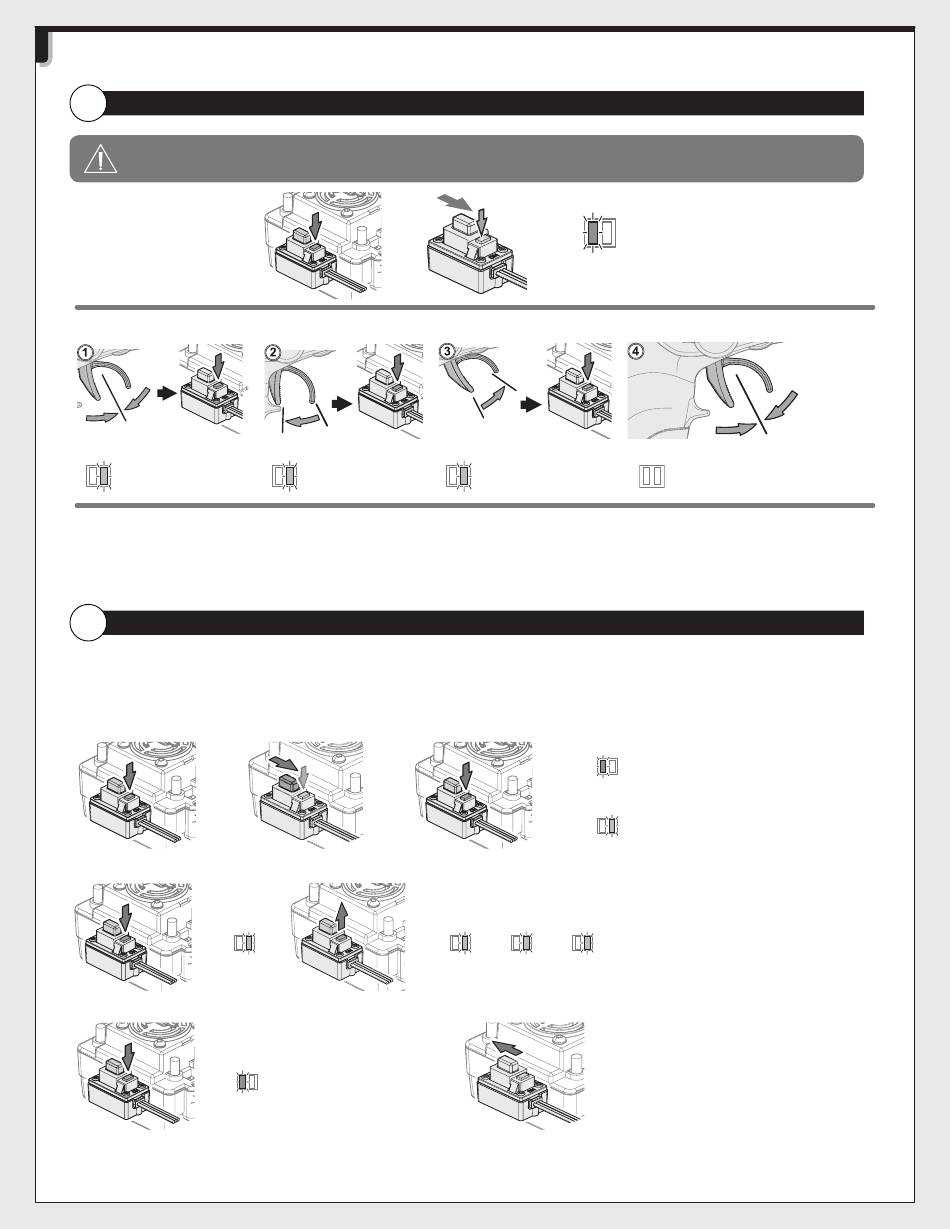

Hold down the setup button while
turning on the ESC.
Leave the trigger in the neutral
position. Press the setup button.
Green LED
LED LED
flashes and a Beep
sound comes from the
motor.
If the LED on the speed control does not work as described below, the speed control may not be setup correctly. Repeat the above process.
THE LED STATUS IN NORMAL RUNNING:
a) In normal use, if the throttle stick is in the neutral range,neither the red nor green LED will light.
b) The red LED lights when the car is run forward or backwards and will flash quickly when the car is braking.
c) The green LED lights when the throttle stick is moved to the top point of the forward zone (full throttle).
2
Changing the settings
The ESC
has a number of programmable modes that can be altered to suite a variety of functions. Each set of green LED flashes/beeps represents the programmable mode
(1 flash = Running mode, 2 flashes = Drag brake force and 3 flahes = Auto-lipo settings etc..) and each set of red LED flashes/beeps represents that modes value. See the table
below for all the programmable modes and their values. When you enter the setup mode you need to keep the button pressed until you enter the desired programme mode
(green flashes/beeps). Once you reach that mode release the button and that will allow you to change the mode value (red flashes/beeps). You need to switch off the ESC to
save the settings then re-do the process to change to a different mode or mode value setting. If you lose your way with setup then you can return the unit to default settings by
turning on the ESC, keeping the transmitter in neutral and pressing the setup button for 3 seconds. Both red and green LED's will flash together 3 times to confirm this.
While switching on the ESC hold down the setup button. Continue to hold the setup button while the red LED flashes. Continue to hold the setup button until the green LED starts to flash.
LED
Each green LED flash represents the programmable mode number. Release the setup button when you reach the desired mode. You are now in the program mode setting.
LED LED
Press the setup button to change the mode value. Each mode value will have
different amounts of red LED flashes.
Move the trigger to full throttle. Move the trigger to full brake.
Press the setup button. Press the setup button.
Green LED
LED LED
flashes twice. Beeps
twice from the motor.
LED
1 red LED flash
represents the
"No Protection" setting
LED LED
Green LED
LED LED LED
flashes three times.
Beeps three times from
the motor.
LED LED
LED
LED LED LED LED LED
3 green LED flashes represent the Low Voltage Cut-Off
setting for example.
In order to save the changes and settings you must switch off the ESC. When you next
switch it back on it will have saved your new settings. To make further alterations you
need to re-enter the mode values again.
2
Release the setup button once the Red
LED starts to flash
When the process has finished, motor
control will be activated in 3 seconds
LED
No LED Lighting
Red LED flashes for 4 seconds.
LED
Green LED will begin to flash.
LED
