QUICK INSTALLATION GUIDE
2-PORT/ 4-PORT DUAL MONITORS HDMI2.0 DP1.2 USB
KVM SWITCH W/ AUDIO & MIC
62642I/62644I
Thank you for purchasing the 2-Port Dual Monitors HDMI2.0 DP1.2
USB KVM Switch! With our highly reliable and quality product,
user can enjoy countless benefits from using it.
INTRODUCTION
The Dual Monitors HDMI2.0 DP1.2 KVM Switch is designed spe-
cifically for sharing two monitors/ flat panel displays between two/
four multimedia computers with dual head HDMI/DP display [1x
HDMI , 1x DP]. With KVM-Switch, you can fully control two/ four
dual head PCs using only one keyboard, mouse and dual moni-
tor/ flat panel displays. This dual monitor HDMI / DP KVM switch
supports 3840 x 2160/4K 60Hz for your maximum convenience in
adapting to your display requirements.
With the TTU Emulation Technology, which embodies itself within
a new ASIC chip, the dual monitors HDMI/DP USB KVM switch
is capable of a complete versatility in dealing with the functional
requirements of all types of advanced keyboards and mice. It fea-
tures two channels stereo sound for theater audio experience and
its audio&mic switching function offers you uninterrupted multi-
media experience while performing KVM switching. Multi-platform
support for PC and Mac is available.
Package content:
1x KVM switch unit 2-port / 4-port
2x KVM cable set for 62642I / 4x cable set for 62644I
1x Quick Installation Guide
1x Power Adapter DC9V
INSTALLATION
1. Connect the shared USB keyboard, mouse, two monitors,
speaker/headphone and microphone to corresponding ports
on console section of the KVM Switch. Note that the two left
side white USB ports are for keyboard and mouse and two
blue USB 3.0 ports for other USB devices.

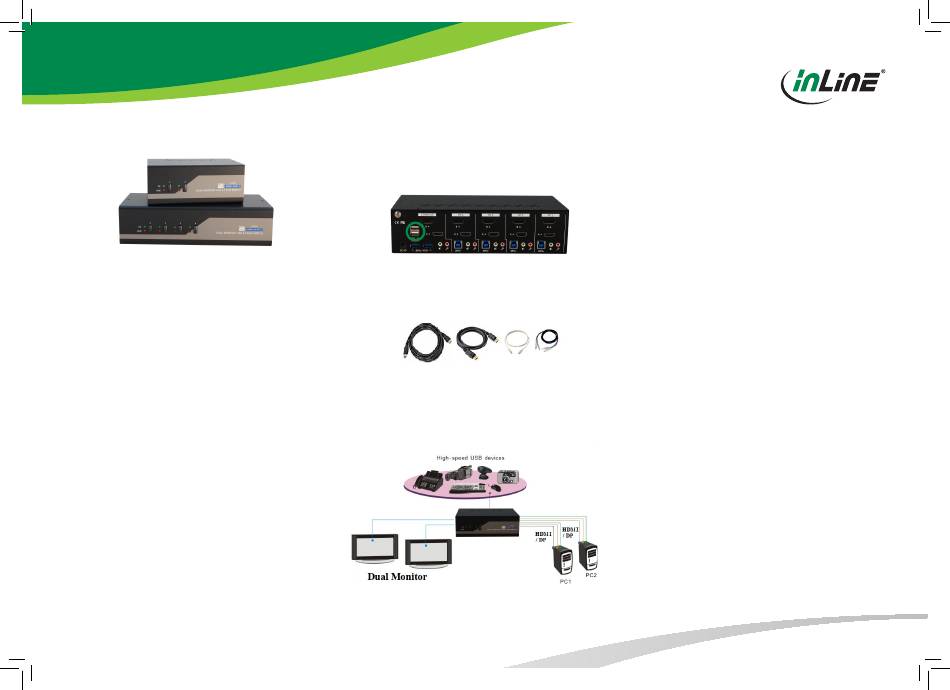

62644I – Rear View
2. Connect each KVM PC port to a computer, using one HDMI2.0
video cable (Male to Male) and one DP1.2 video cable (Male
to Male), one USB cable (type A to type B) and one audio&mic
combo cable (male to male).
3. Connect each of your USB devices to the USB hub ports (on
the left).
4. Power up you KVM Switch by connecting the external power
adapter to it.
You can now begin to use the KVM switch.
Connection Illustration
EASY OPERATION
A keyboard hotkey sequence consists of at least three specific ke-
ystrokes: See Quick Reference Sheet
Hotkey sequence = [ScrLk]* + [ScrLk] * + Command key(s)
* User-definable = SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK
Hotkey preceding sequence configuration: For users who want to
use a preceding sequence other than two consecutive Scroll Locks,
there is also one convenient way to configure it.
(1) Hit ScrollLock + ScrollLock + H, then two beeps will signal rea-
diness for new preceding sequence selection [or Press and hold
down the last front-panel button (Button 2 or Button 4) until you hear
two beeps, then release the button.]
(2) Select and press the key you would like to use as your preceding
sequence (SCROLL LOCK, CAPS, ESC, F12 or NUM LOCK) keys
are available for selection and you'll hear a beep for selection con-
firmation. Now you can use the new preceding sequence to execute
your hotkey commands.
Note: Each keystroke within a hotkey sequence should be pres-
sed within two seconds. Otherwise, the hotkey sequence will not
be validated.
