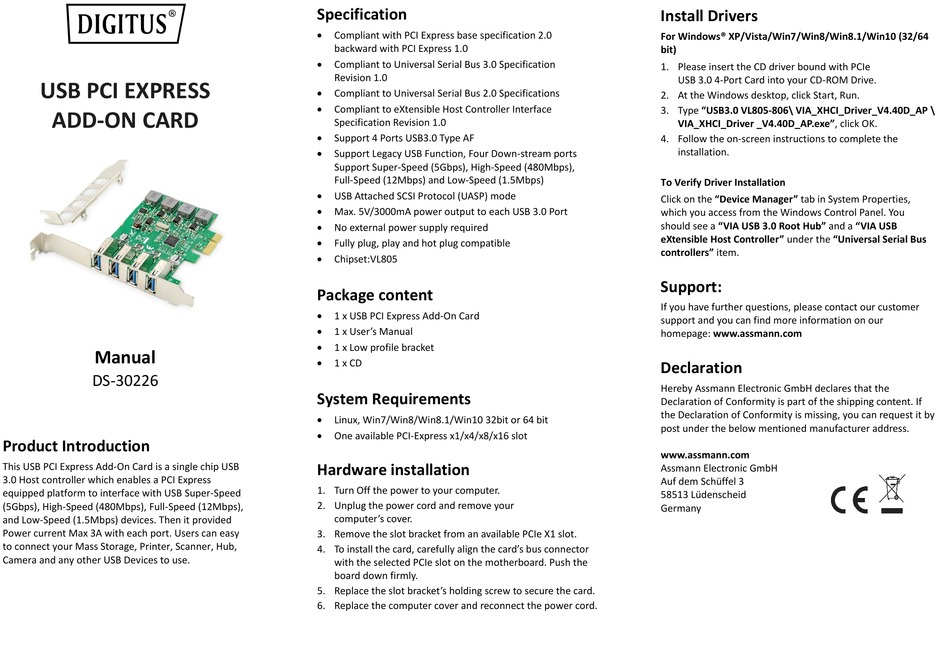

Digitus DS-30226 Benutzerhandbuch

USB PCI EXPRESS
ADD-ON CARD
Manual
DS-30226
Product Introduction
This USB PCI Express Add-On Card is a single chip USB
3.0 Host controller which enables a PCI Express
equipped platform to interface with USB Super-Speed
(5Gbps), High-Speed (480Mbps), Full-Speed (12Mbps),
and Low-Speed (1.5Mbps) devices. Then it provided
Power current Max 3A with each port. Users can easy
to connect your Mass Storage, Printer, Scanner, Hub,
Camera and any other USB Devices to use.
Specification

Compliant with PCI Express base specification 2.0
backward with PCI Express 1.0

Compliant to Universal Serial Bus 3.0 Specification
Revision 1.0

Compliant to Universal Serial Bus 2.0 Specifications

Compliant to eXtensible Host Controller Interface
Specification Revision 1.0

Support 4 Ports USB3.0 Type AF

Support Legacy USB Function, Four Down-stream ports
Support Super-Speed (5Gbps), High-Speed (480Mbps),
Full-Speed (12Mbps) and Low-Speed (1.5Mbps)

USB Attached SCSI Protocol (UASP) mode

Max. 5V/3000mA power output to each USB 3.0 Port

No external power supply required

Fully plug, play and hot plug compatible

Chipset:VL805
Package content

1 x USB PCI Express Add-On Card

1 x User's Manual

1 x Low profile bracket

1 x CD
System Requirements

Linux, Win7/Win8/Win8.1/Win10 32bit or 64 bit

One available PCI-Express x1/x4/x8/x16 slot
Hardware installation
1. Turn Off the power to your computer.
2. Unplug the power cord and remove your
computer's cover.
3. Remove the slot bracket from an available PCIe X1 slot.
4. To install the card, carefully align the card's bus connector
with the selected PCIe slot on the motherboard. Push the
board down firmly.
5. Replace the slot bracket's holding screw to secure the card.
6. Replace the computer cover and reconnect the power cord.
Install Drivers
For Windows® XP/Vista/Win7/Win8/Win8.1/Win10 (32/64
bit)
1. Please insert the CD driver bound with PCIe
USB 3.0 4-Port Card into your CD-ROM Drive.
2. At the Windows desktop, click Start, Run.
3. Type "USB3.0 VL805-806\ VIA_XHCI_Driver_V4.40D_AP \
VIA_XHCI_Driver _V4.40D_AP.exe", click OK.
4. Follow the on-screen instructions to complete the
installation.
To Verify Driver Installation
Click on the "Device Manager" tab in System Properties,
which you access from the Windows Control Panel. You
should see a "VIA USB 3.0 Root Hub" and a "VIA USB
eXtensible Host Controller" under the "Universal Serial Bus
controllers" item.
Support:
If you have further questions, please contact our customer
support and you can find more information on our
homepage: www.assmann.com
Declaration
Hereby Assmann Electronic GmbH declares that the
Declaration of Conformity is part of the shipping content. If
the Declaration of Conformity is missing, you can request it by
post under the below mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
