Conceptronic CKVM2P Schnellinstallationsanleitung Seite 7

ENGLISH
2. The Conceptronic 2-port PS/2-KVM Switch explained

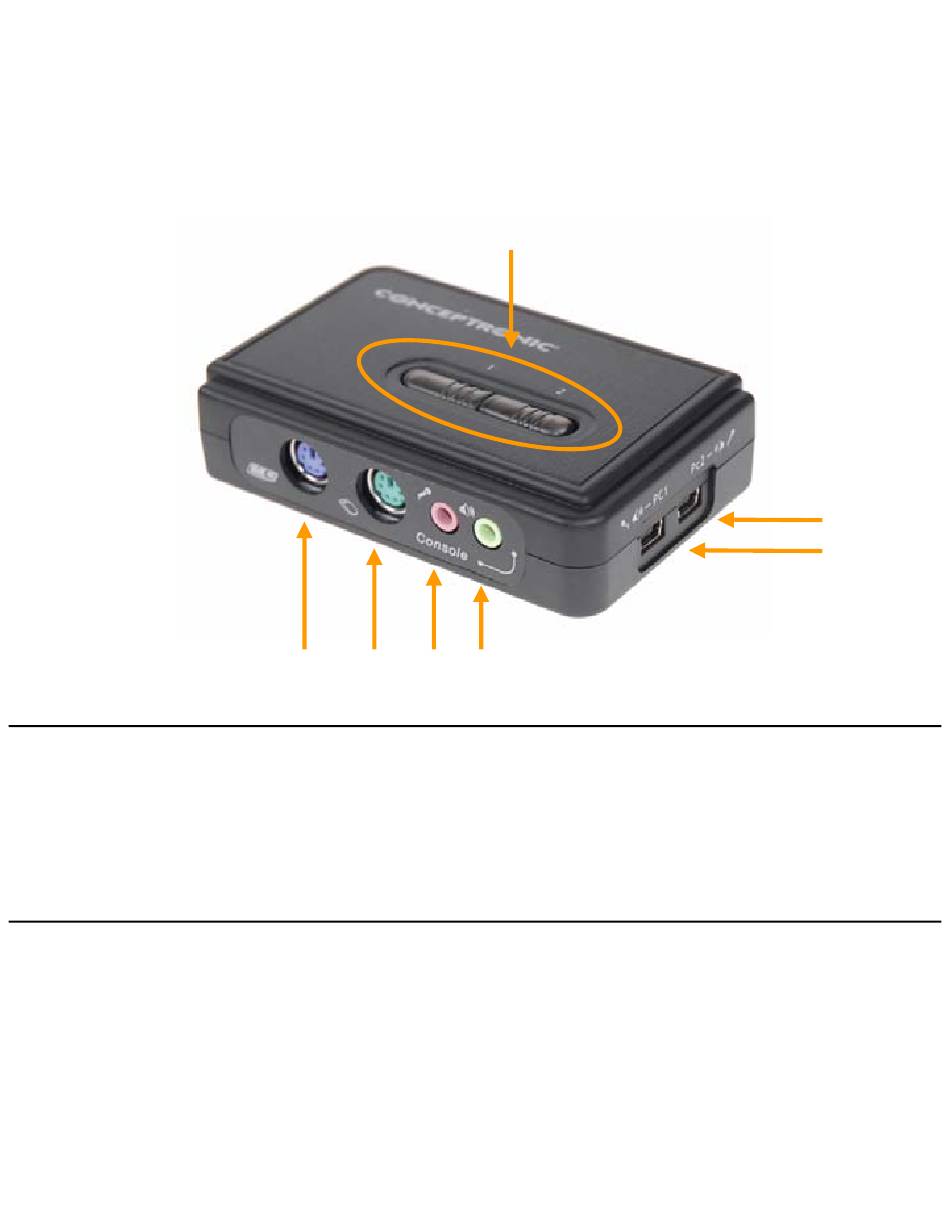

2.1 Device Explanation Front Side
Nr Description
1. PS/2 keyboard connection
2. PS/2 mouse connection
3. Microphone (MIC) input connection
4. Speaker (SPK) output connection
5. USB mini B output to PC-1 Microphone (MIC)/ Speaker (SPK) connection
6. USB mini B output to PC-2 Microphone (MIC)/ Speaker (SPK) connection
7. PC selection switches (PC 1 ~ 2)
4
1 2 3
7
7
6
5
