3 Connect the test leads to the input terminals 5 4 Turn on the multimeter 5 5 Select a function 6 6 Set the range 6 7 Using the secondary display 6 8 Math operation 7 9 For more information 8 U3401A Quick Start Guide...

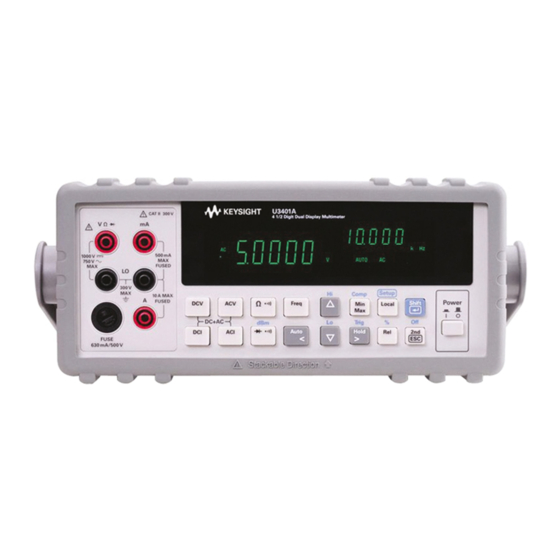

Getting Started The Front Panel at a Glance Primary display Secondary display Input terminals Measurement Math Shift Power Autoranging, and current fuse function operation on/off manual range, keypads keypads switch and comparator operation U3401A Quick Start Guide...
Annunciator Description Primary display Reading rate: Slow. Not applicable for the U3401A. Reading rate: Medium. Not applicable for the U3401A. Reading rate: Fast. Not applicable for the U3401A. PEAK Peak measurement. Not applicable for the U3401A.
Seite 9
Duty cycle measurement Voltage unit: mV, V μmA Current unit: μA, mA, A Shift mode Resistance unit: Ω, kΩ, MΩ MkΩ Secondary display is enabled. Not applicable for the U3401A. AUTO Autoranging Direct current Alternating current DCAC AC + DC...
The line voltage switch and fuse are set at the factory according to the country of N O T E destination. Adjust the carrying handle Grasp the handle by the sides and pull outward as indicated by the red arrows below. Then, adjust the handle to the desired position. U3401A Quick Start Guide...
10 A RMS Turn on the multimeter Push to turn on the multimeter. The front- panel display illuminates while the multimeter performs its power- on self- test. The multimeter powers up in the DC voltage function with autoranging U3401A Quick Start Guide...
Selects a higher range and disable autoranging. Selects a lower range and disable autoranging. Using the secondary display Press followed by a specified function keys such a to enable the secondary display mode. U3401A Quick Start Guide...
N O T E mode. You may need to press the selected key until the multimeter responses. Math operation The U3401A has six math operations — dBm, Rel (relative), MinMax, Comp (compare), Hold and Percentage (%). Press to select dBm measurement.
For a detailed operation procedure of each math operation, refer to the Keysight U3401A User’s and Service Guide. For more information The Keysight U3401A User’s and Service Guide contains more detailed information on the front panel, measurement functions, math operations, and the setup menu (allows you to customize the instrument settings).
