RAVPower RP-PB007 Bedienungsanleitung

EN
Package Contents

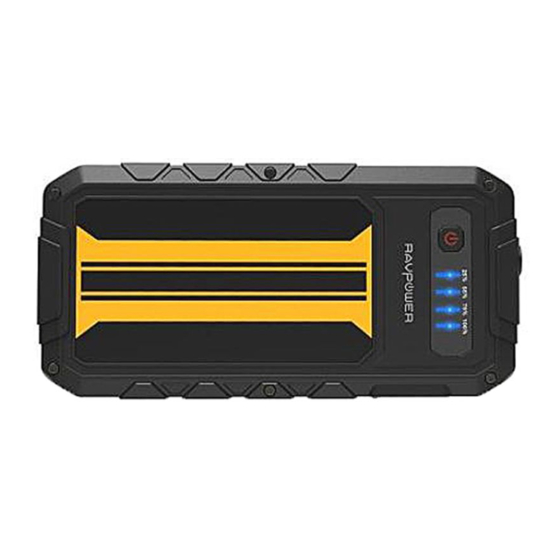

• 1 x RAVPower Car Jump Starter (Model: RP-PB007)
• 1 x User Guide
• 1 x Jumper Cable
• 1 x USB Charging Cable (60 cm / 24 in)
Specifications
Model
Battery Capacity
Input
Quick Charge Output
Starting Current
Peak Current
Recharging Time
Operating Temperature
Net Weight (Battery Pack)
Dimensions
RP-PB007
8000mAh (29.6Wh)
5V / 2A Max
5V / 2.4A; 9V / 2A Max
150A
300A
3-4 Hours
20 °C to 60 °C
68 °F to 140 °F
250 g / 8.8 oz
17 x 8.1 x 2.0 cm
6.7 x 3.2 x 0.8 in
Battery Indicator
There are 4 battery indicators that will light up as you turn on the
jump starter to show the battery level.
Battery Indicator
When the jump starter is being charged, the battery will
progressively flash and turn solid when the correspondent battery
level has been achieved. All indicators will turn off when charging is
completed or stopped.
Charging the Car Jump Starter
There are two ways to charge the jump starter:
• Connect the jump starter to a power outlet using a 5V / 2A power
adapter.
• Connect the jump starter to the car cigarette lighter using the
included USB cable.
Jump Starting Cars
The car jump starter can be used to jump start gasoline powered
engines with a 12V battery.
1. Insert the blue plug fully into the host, and make sure the
indicators on the jumper are off.
2. Connect the red clamp to the positive (+) battery terminal, and the
black clamp to the negative (-) battery terminal.
reverse
Battery Level
0 - 25%
26% - 50%
51% - 75%
76% - 100%
reverse correct BOOST
correct BOOST
01/02
