Noise Gate 10/2018 GIT0036603-000 Bedienungsanleitung User Manual...
Seite 2
Wichtige Sicherheitshinweise! Bitte vor Anschluss lesen! • Stellen Sie sicher, dass die Netzspannung nicht höher als die auf dem Gehäuse angegebene Spannung ist. RISK OF ELECTRIC SHOCK DO NOT OPEN • Bei einer Fehlfunktion des Gerätes kontaktieren Sie bitte Ihren Händler und stellen Sie den Betrieb des Gerätes unverzüglich ein.
Herzlichen Glückwunsch zu Ihrem neuen Fame Noise Gate ! Vielen Dank, dass Sie sich für ein Produkt von Fame entschieden haben. Durch effi ziente Entwicklung und ökonomische Produktion ermöglicht Fame hochwertige Produkte zu einem fantastischen Preis. Bitte lesen Sie die Bedienungsanleitung sorgfältig, um über sämtliche Funktionen dieses Produktes informiert zu sein und...
Sicherheitshinweise: GEFAHR! (Für Babys und Kinder) Verpackungen, Kunststofffolien und sonstiges Verpackungsmaterial ist ordnungsgemäß aufzubewahren oder zu entsorgen. Es ist aufgrund von Erstickungsgefahr außerhalb der Reichweite von Babys und Kindern aufzubewahren Stellen Sie sicher, dass Kinder niemals unbeaufsichtigt das Gerät benutzen! Vergewissern Sie sich außerdem, dass Kinder keine (Klein-)Teile vom Gerät ent- fernen, da sie durch Verschlucken daran ersticken könnten! GEFAHR! (Elektrischer Schlag durch hohe Spannungen im Gerät)
Hinweis! (Stromversorgung) Überprüfen Sie unbedingt die Übereinstimmung der Gerätespannung mit Ihrer örtlichen Netzspannung. Die Absicherung Ihrer Netzsteckdose mit einem Fehlerstromschutzschalter (FI) wird unbedingt empfohlen. Sollten Sie ihr Gerät länger nicht benutzen trennen Sie das Gerät vom Netz um Gefahren zu minimieren. Dasselbe gilt für Unwetterbedingungen wie z.B.

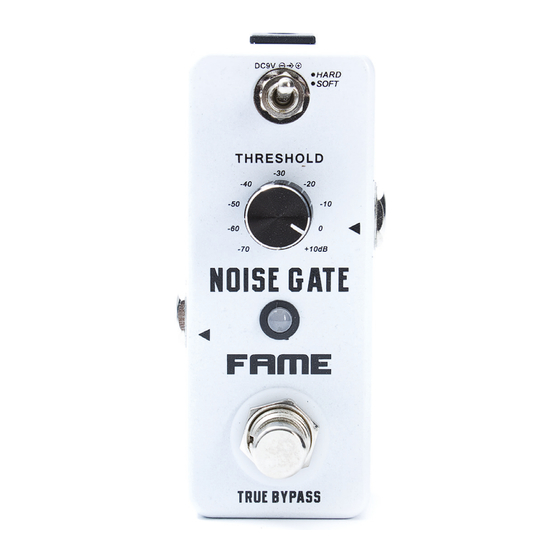

Inbetriebnahme: Sämtliche Verbindungen des Gerätes sollten vor dem Einschalten erfolgen. Benutzen Sie für die Verbindungen ausschließlich hochwertige, möglichst kurze Kabel. Anschlüsse und Bedienelemente: Nummer Funktion Beschreibung TRUE BYPASS Fußschalter zum Aktivieren bzw. Deaktivieren der Pedalfunktion. Leuchtet wenn Effektpedal in Betrieb ist. THRESHOLD Regler Regelt Grad der Störgeräusch Reduzierung.
Komponenten und Funktionen: Stecker- und Anschlußbelegung: Konfi guration 6,3 mm Mono Klinkensteckers: Spezifi kationen: Model Fame Noise Gate Eingangsimpedanz 1 MΩ Ausgangsimpedanz 100 Ω Stromaufnahme 26 mA Stromversorgung DC 9V Netzteil (-) innen Abmessungen (BxTxH) 95 x 45 x 48 mm...
Öffnen Sie niemals eigenständig das Gerät! Symptom Fehlerbehebung Keine Funktion Überprüfen Sie die korrekte Stromversorgung des Noise Gate. Überprüfen Sie die Kabelverbindungen von Instrument zum Gerät Kein Ausgangssignal und weiter zum Verstärker. Sollten die angegebenen Fehlerbehebungen nicht zum erfolg geführt haben, kontaktieren Sie bitte unsere Service Mitarbeiter.
Umweltschutz: Die Firma Music Store professional GmbH bemüht sich stets die Belastung durch Verpackun- gen auf ein Minimum zu reduzieren. Die Verwendung von umweltfreundlichen und wie- derverwertbaren Materialen ist dabei stets von elementarer Bedeutung. Bitte führen sie die Verpackungen nach Gebrauch den entsprechenden Verwertungen zu. Entsorgung von Verpackungen: Sorgen Sie dafür, dass Papierverpackungen, Kunststoffmaterial, etc.
Seite 10
Safety Instructions! Please read before connection and operation! • Ensure that the supply voltage does not exceed the RISK OF ELECTRIC SHOCK. voltage capacity indicated on the housing of the device. DO NOT OPEN! • In case of failure of the device, please contact the distri- WARNING: To prevent the risk of electrocution, do not butor and stop all operations of the device immediately.
Congratulations on your new Fame Noise Gate! Thank you for choosing a Fame product. Thanks to effi cient development and economical production, Fame makes high-quality products at a fantastic price possible. Please read these operating instructions carefully to be informed about all functions of this...
Safety instructions: DANGER! (For Babies and Children) Wrapping, plastic foils and other packaging material must be properly stored or disposed of. It should be kept out of the reach of babies and children due to the risk of suffocation. Ensure that children never use the device unattended! Also make sure that children do not remove any (small) parts from the device, as they could suffocate if swallowed! DANGER! (electric shock due to high voltages in the device)
Seite 13
Warning! (Power Supply) Make sure that the device voltage matches your local mains voltage. It is strongly recommended to protect your mains socket with a residual current circuit breaker (RCD). If you do not use your device for a longer period of time, disconnect the device from the mains to minimize dangers.
Operation: All connections of the device should be made before switching on. Use only high-quality cables that are as short as possible for the connections. Connections and Control Elements: Number Function Description TRUE BYPASS Foot switch for activating or deactivating the pedal function.
Seite 15
Components and functions: Plug and connection assignment: Confi guration 6,35 mm mono jack: Ground, shielding Specifi cations: Model Fame Noise Gate Input impedance 1 MΩ Output impedance 100 Ω Current consumption 26 mA Power supply DC 9V power supply (-) inside...
Symptoms Troubleshooting No Function Check the correct power supply of the Noise Gate. Check the cable connections from the instrument to the unit and No output on to the amplifi er. If the above troubleshooting has not been successful, please contact our service staff.
Environmental Protection: Music Store professional GmbH always endeavours to reduce the burden of packaging to a minimum. The use of environmentally friendly and recyclable materials is always of funda- mental importance. Please recycle the packaging after use. Disposal of packaging: Ensure that paper packaging, plastic material, etc.
