Stanley S150 Bedienungsanleitung

S150
STHT77404

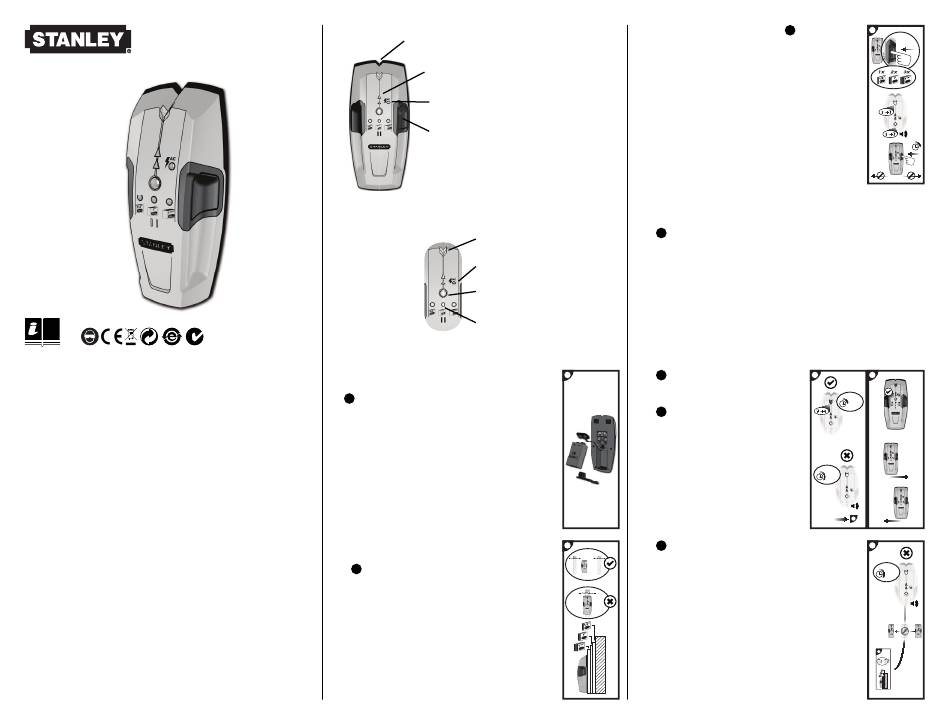

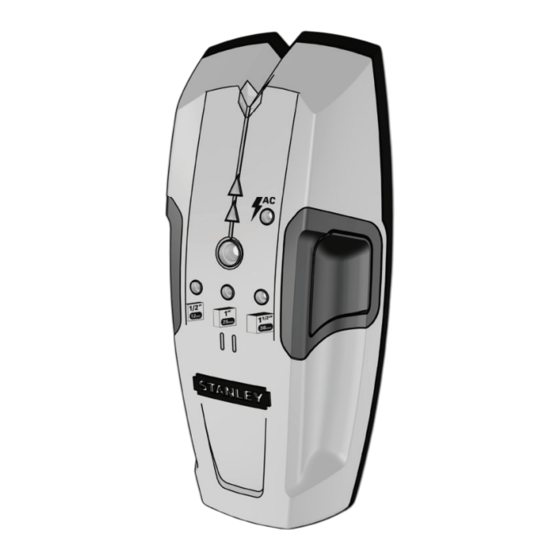

Stanley Stud Sensor 150
The Stud Sensor 150 uses electronic signals to locate the edges of studs, joists
or live AC wires through drywall or other common building materials. Depth
detection selected by activation button for 1/2 inch, 1 inch and 1-1/2 inch. Once
the edge of a stud has been detected, the Stud Sensor 150 displays red LED's
and sounds an audible tone. A marking channel allows you to easily note the
stud edges on the wall.
Note: Read all instructions prior to operating the Stud Sensor 150 and DO NOT
remove any labels from the tool.
WARNING:
Protect Your Eyes, Wear Safety Goggles.
1
77404
• Marking Channel
• LED Display
• Live Wire Warning LED
• Activation Button
REV A 08
OPERATING INSTRUCTIONS
Battery
1
Open door on back of unit and connect a 9 volt battery
(not included) to clip. Put battery back into case and close
back battery door.
Note: Recommend to replace a new 9 volt battery
when low battery - fl ashing green LED.
Usage
Detecting Wood / Metal Studs
2
Hold the Stud Sensor 150 fl at against the surface,
making fi rm contact.
Selecting Scanner Depth Mode
• Depress and hold activation button once (1x) to
• Double click (depress two times - 2x) and hold
• Triple click (depress three times - 3x) and hold
3
• STUD Detected
Note: The unit cannot be moved before calibration is complete.
• Live Wire Detected
• Self-Calibration Complete /
Low Battery Indicator
• Depth Detection Mode
4
1
is calibrated.
5
during all of the following procedures.
Note: Once the Activation button is
released, the unit shuts off.
2 11
to a different location and try again. Releasing the
activation button will turn off the sensor.
Note: While calibrating, the Stud Sensor 150 must not
be placed directly over a stud, dense material such as
metal, or over a wet or newly painted area, or it will not
properly calibrate.
3
select to 1/2" read depth detection. The 1/2" mode
LED will illuminate.
activation to select to 1" read depth detection. The
1" mode LED will illuminate.
activation button to select 1-1/2" read depth
detection. The 1-1/2" mode LED will illuminate.
Note: For best results the depth mode selected should be based on the
thickness of the surface material being scanned.
The green and top red LED will light.
When the red LED goes off, the unit 4
Keep holding the activation button
> 3
sec
If the red LED stays lit, move the Stud Sensor 150
3
5
≤ 3
sec
11
11
>3
sec
2
