Technical Information
Type
Voltage
Amperage
Frequency
Insulation class
Power
1
RPM
2
(On Load)
3
1
Max. Drill Diameter
2
Stone
3
1
Max. Drill Diameter
2
Concrete
3
Collar
Drill connection
Weight
Due to continuous product development and technical improvements, technical information may be changed without prior
notice.
General preventative measures and encl safety instructions has to be followed

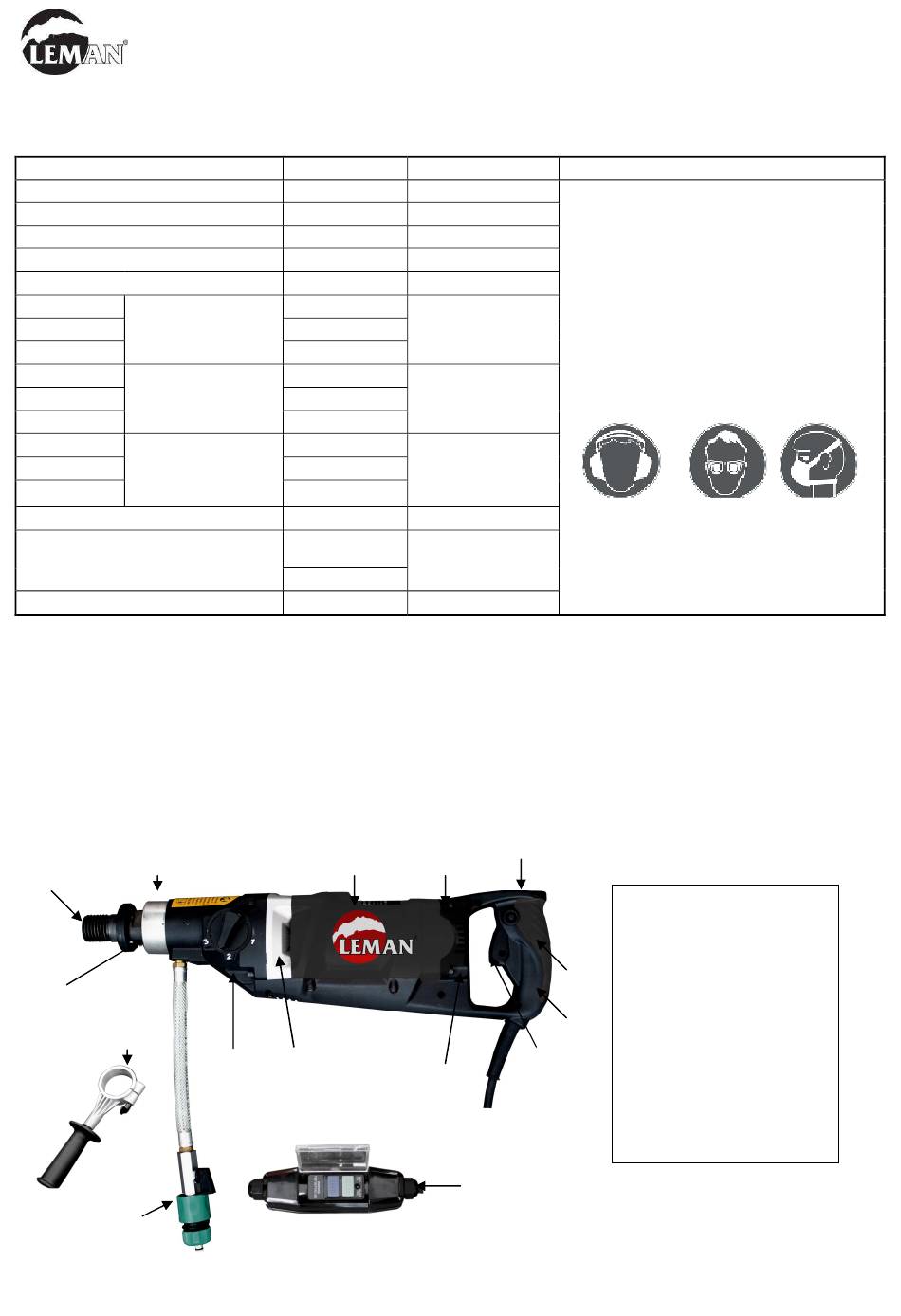

Technical Description
The CAR201 is an insulated diamond core drilling machine for WET and DRY use in combination with diamond core drilling for
drilling holes in stony materials and concrete. The drilling machine can be used manually as well as in combination with a drill
platform. This machine is suited for right as well as left handed personnel.
Voltage
The drill machine may only be connected to the voltage which is stated on the type illustration and only works with 1-phase.
The machine is insulated according to European Guidelines and consequently may only be used via a trip switch (PRCD) with an
under voltage safety level of < 10 mA on an earthed electrical mains.
Main components
12
13
14
1
11
CAR201
220/240
9.5
50/60
I
2000
560
910
2560
200
120
80
150
80
40
60
½'' G x 5/4''
UNC
7.6
3
10
9
Noise Emissions and Vibrations
Acoustic pressure measured is 97 DB (A)
V
Measured acoustic pressure permitted is 108 dB
A
Acceleration bears < 2,5 m/s
Hz
W
MIN-1
Ø mm
Ø mm
Wear
Ø mm
Hearing
protection
Female x Male
kg
3
2
5
6
7
4
8
2
Wear a dust
Wear Eye
protection
mask
1 Side handle
2 Overload indication
3 Water level
4 Switch
5 Softgrip
6 Spade grip
7 Cooling grooves
8 PRCD
9 Air outlet
10 Gear switch
11 Water connection (wet
drilling)
12 Collar 60 mm
13 Drill connection
14 Spanner insert – 32 mm
