2. Product Overview

2.1 Front Panel

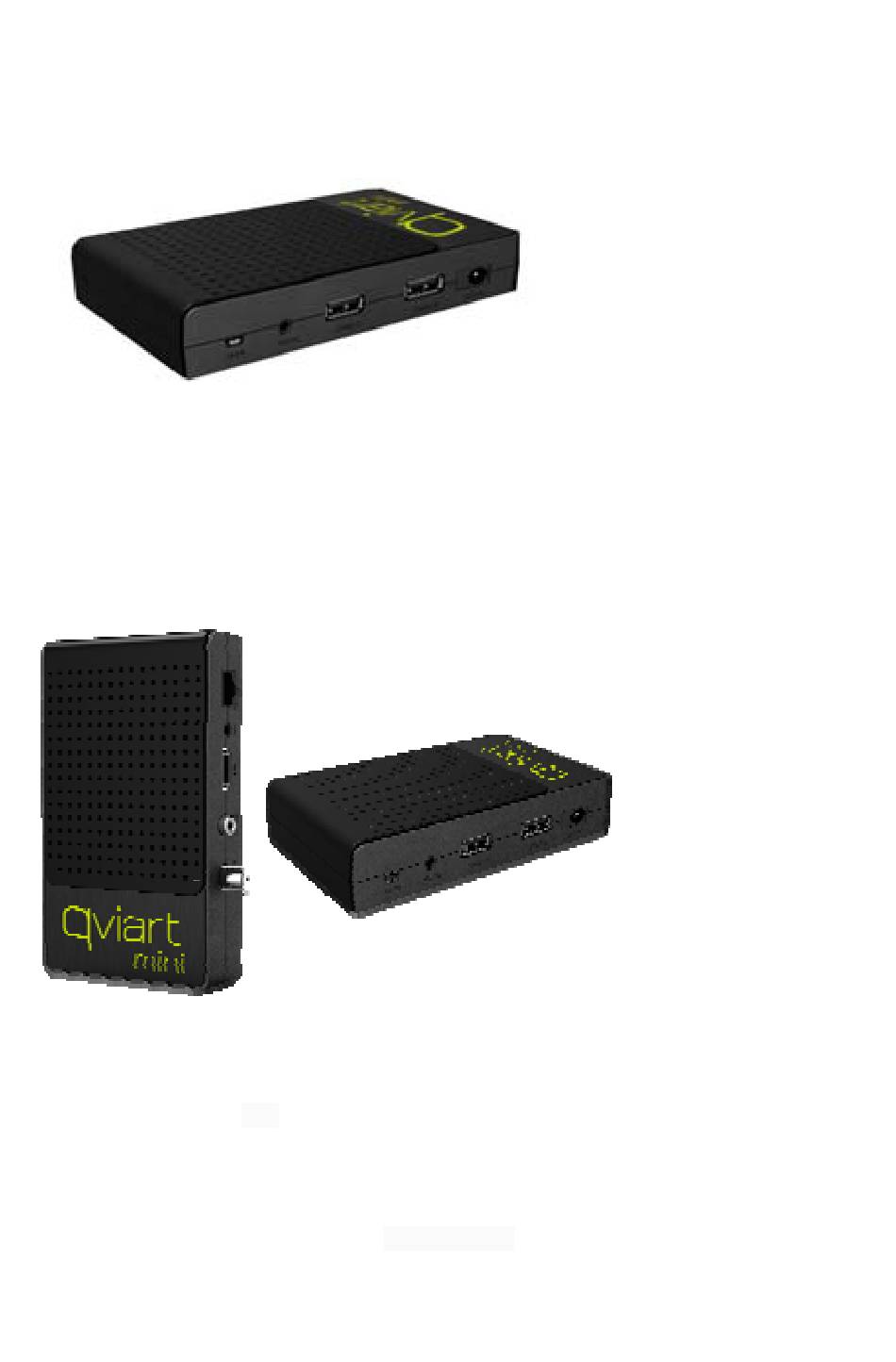

Figure 1. Front Pane
l

2.2 Rear Panel

Figure 2. Rear Panel
1. LNB IN Connect the satellite antenna cable.
2.USB2.0 Connect USB disk.
3. RS232 Connect to the computer using a serial line.
4. COAXIAL Digital Audio output (Coaxial).
5. HDMI Connect to the TV using an HDMI cable.
6. CA CA interface.
7. LAN Connect to the Ethernet using a Network cable.
