Issued / Herausgegeben / Publicado / Publication
Publicatto / Udgivet / Afgegeven / Utgiven
Instruction Leaflet
Bedienungsanleitung
Hojas de instrucciones
Feuille d'instructions
Foglio d'instruzioni
Betjeningsvejledning
Instructies
Instruktionsfolder

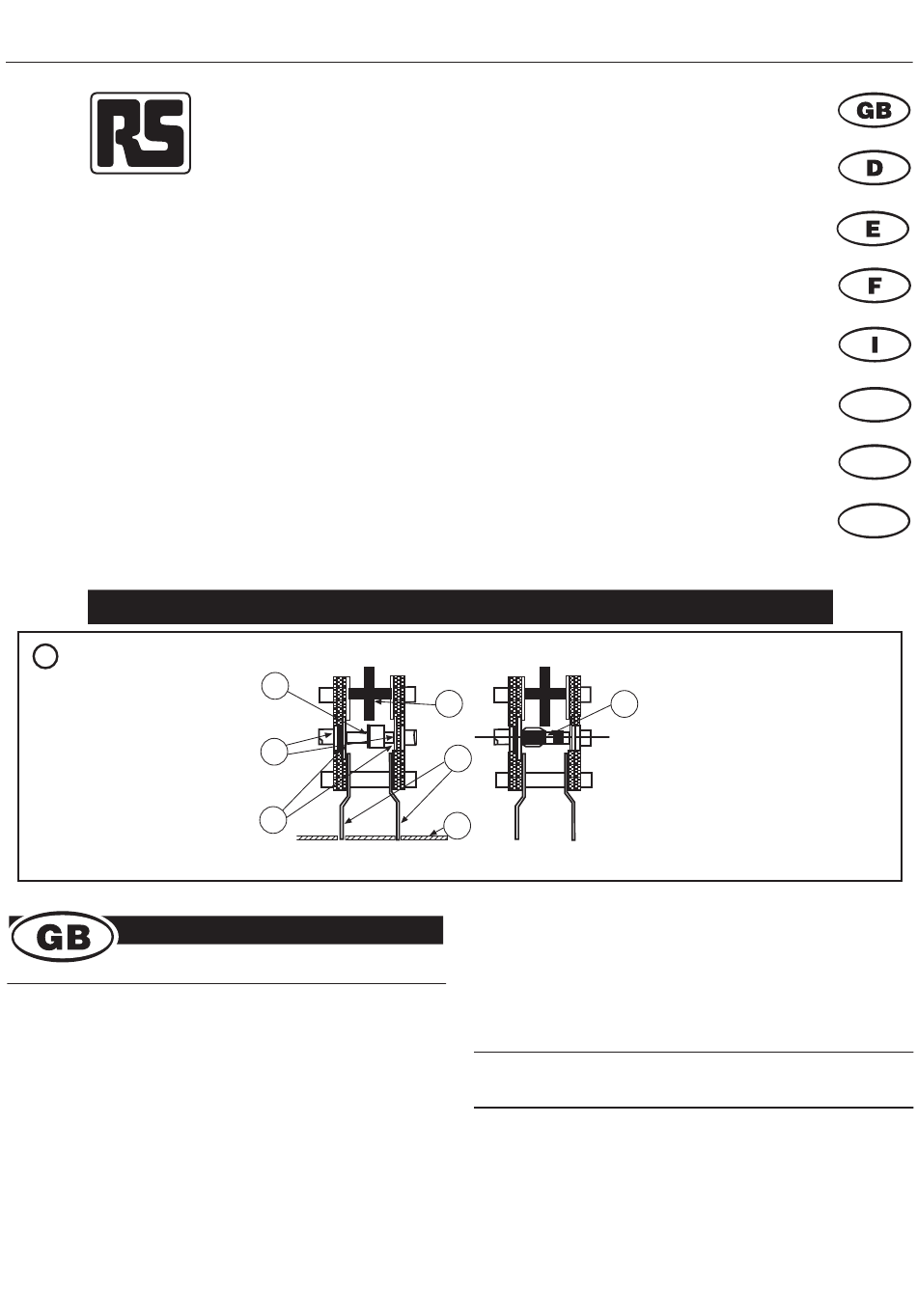

Figures / Abbildung / Figura / Figurer / Afbeeldingen
1
A simple to use hand tool for precise bending of component leads to aid
insertion in P.C.B.'s etc. Perfect 90° bends are achieved with minimum
of effort. Tool incorporate pointers to allow fast and accurate setting of
spacing between board holes, easily adjusted via thumbwheel. A
centralising also fitted which offsets or centralises the body of the
component. accommodates without re-adjustment a wide range of lead
diameters and scratching is avoided by use of resilient pads.
Instructions for use
1. Line up pointers (b) with holes in the printed circuit board (f) by
means of the thumbwheel (a). This facility ensures fast and
accurate reproduction of lead spacing onto the component.
2. Place component (g) on top of tool with leads in slots (e). The
centralising finger (c) should be set according to the required
positioning of the component body.
3. With light pressure on tool handle the component is drawn down
forming perfect 90° bends in the leads.
Biegewerkzeug für Komponentenleiter
Outil à plier les broches de composants
Componente Utensile per la curvatura
Gereedschap voor het buigen van kabels
c
d
e
RS Stock No.
545-086
Component lead bending tool
Herramienta para doblar patillas
Komponent Bukkeværktøj
Komponent Bockningsverktyg
a
b
f
Additional data
Lead diameter capacity: ______________________ 0.25mm to 1mm
Maximum length of bend: ______________________________35mm
Minimum length of bend: ______________________________9.5mm
Minimum distance of bend from component body:
Maximum component body diameter: ____________________13mm
RS Components shall not be liable for any liability or loss of any nature (howsoever
caused and whether or not due to RS Components' negligence) which may result
from the use of any information provided in RS technical literature.
11/2000
de componentes
dei conduttori
g
V3806
DK
NL
SE
__________1mm
