CONTENTS OF THE CARTON:
•
Subwoofer with built-in mixer and amplifier
•
2x Top (top) speakers

FEATURES AND FUNCTIONS:

•
4 channel mixer
•
Built-in bass & top amplifier
•
2x XLR mic inputs
•
2x 6.3mm Jack line inputs
•
2x 6.3mm Jack mic inputs
•
2x RCA (stereo) line inputs

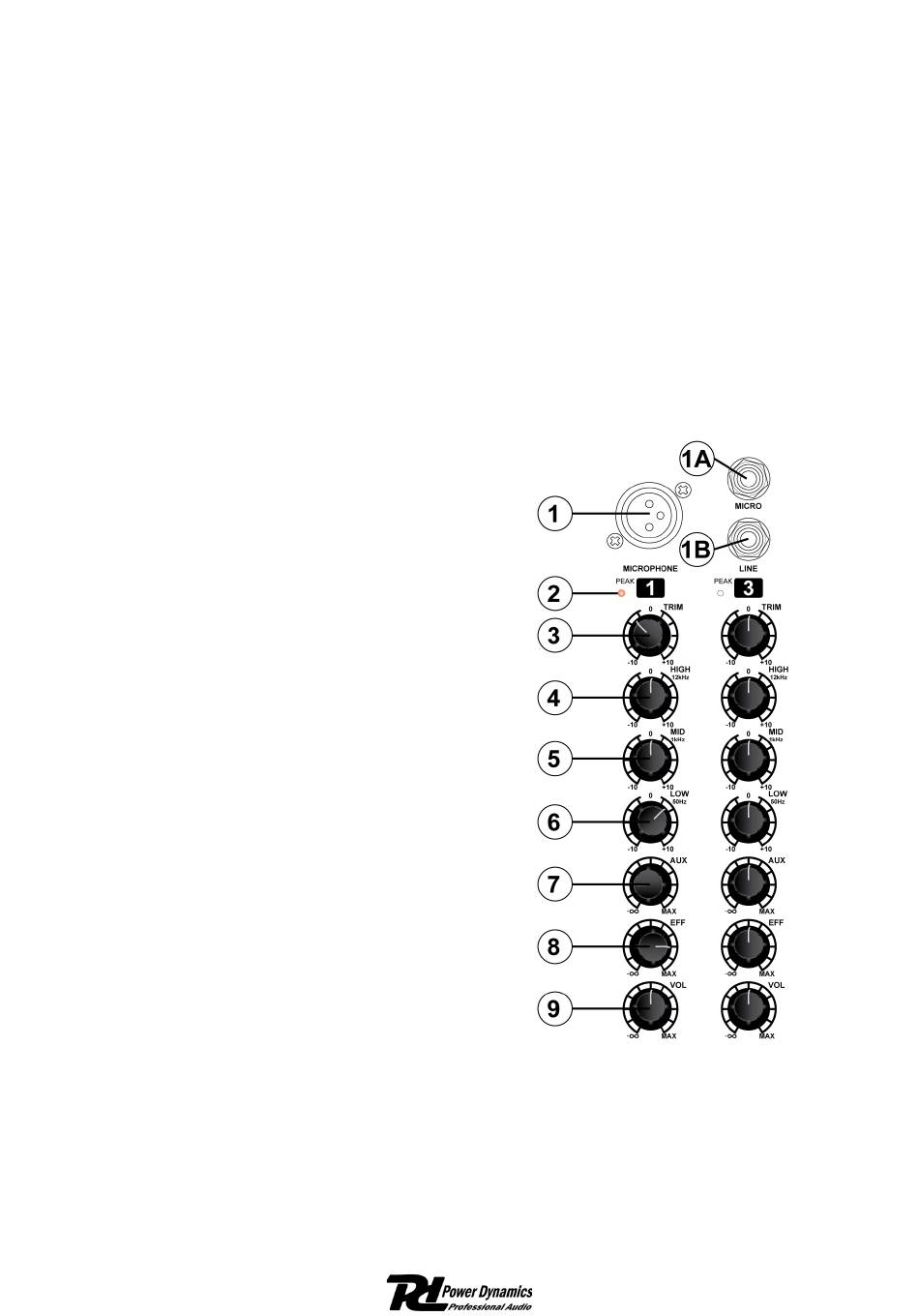

1. LINE/MIC
Line/mic inputs. Channel 1 & 2 fitted with a balanced
XLR input (1). Channel 3 & 4 fitted with a separate
6.3mm Jack line (1a) & microphone (1b) input
2. PEAK Indication
Peak LED should not light continue. If LED is blinking
frequently turn down TRIM control.
3. TRIM Control
Every channel is fitted with a TRIM control to
compensate different input volume levels.
4. HIGH - EQ Control
Controls the high frequencies
5. MID - EQ Control
Controls the midrange frequencies
6. LOW - EQ Control
Controls the low frequencies
7. AUX Send
Controls the strength of the signal sent to the AUX
output (10)
8. EFF Send
Controls the strength of the signal to the echo effect
9. VOL. Control
Sets the volume of the channel.
•
2x speaker cables
•
Mains lead
•
3-band EQ on every channel
•
AUX Send adjustable per channel
•
EFF Send adjustable per channel
•
Built-in echo effect
•
Subwoofer sound level and frequency
range
