Inhaltszusammenfassung für Sunmax SolarPoint SM-SP-40

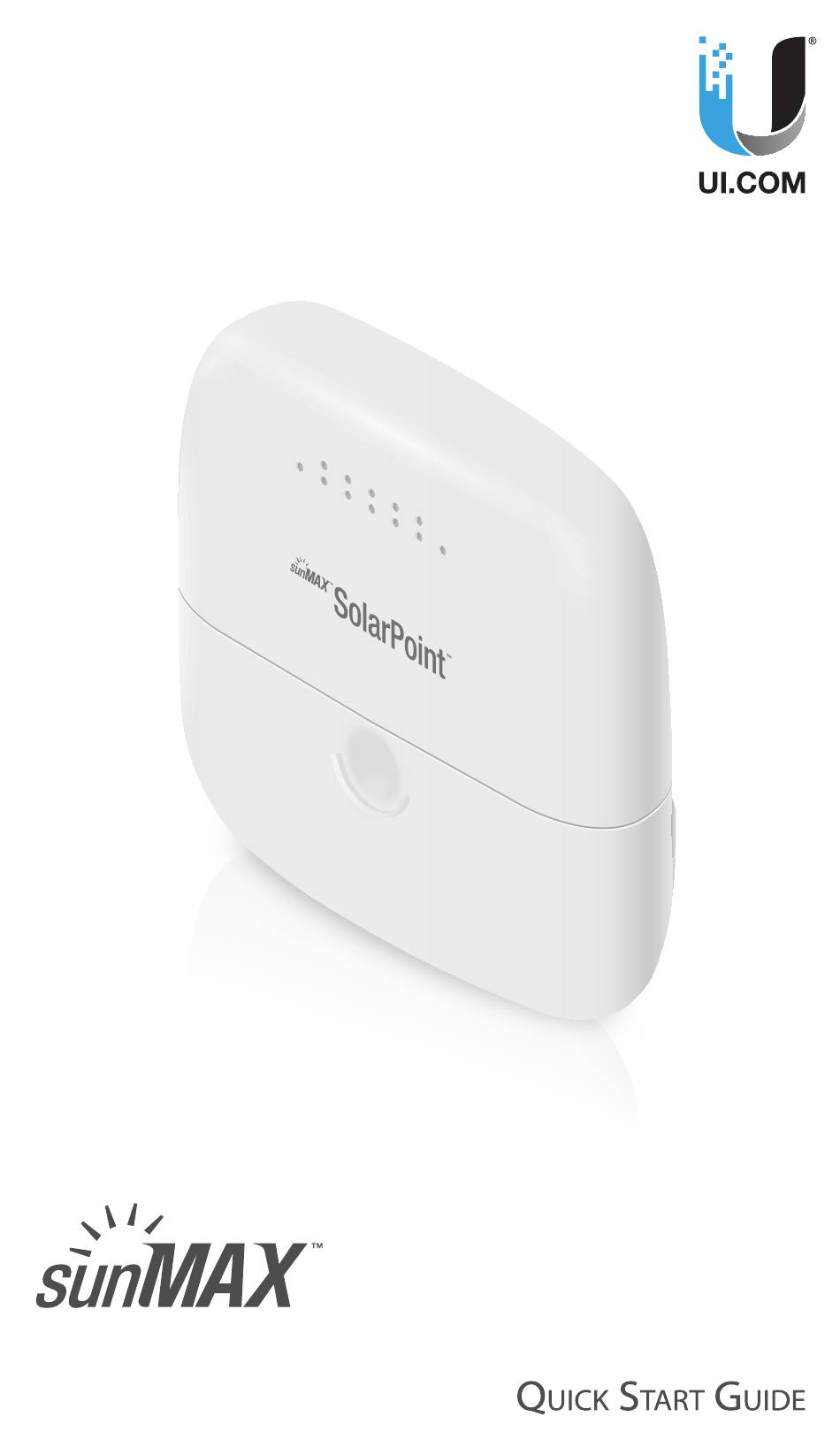

- Seite 1 SolarPoint 4x PoE Smart MPPT Charger Model: SM-SP-40...
-
Seite 2: Package Contents
Introduction Thank you for purchasing the Ubiquiti® SolarPoint MPPT ™ Charger. This Quick Start Guide is designed to guide you through installation and includes the warranty terms. Package Contents SolarPoint H4 Connector Ferrules Metal Strap Removal Tool (Qty. 6) Wall Mount Kit Screw Kit NTC Thermistor Zip Tie... -
Seite 3: Hardware Overview
Hardware Overview PV Panel Ethernet System Battery Ports Terminal Terminal Output PV Panel Reset Power Terminal Button Terminal Description Interface Steady on when system is powered on; System LED Red when battery polarity is reversed. Press and hold the Reset button for 10 seconds to restore factory default settings. -
Seite 4: Hardware Installation
Hardware Installation Note: Prior to use, it is recommended to write down the factory default password for this device. The password can be found on the sticker located under the SolarPoint cover. Pole Mounting 1. Open the Metal Strap and feed it through the mounting slots on the back of the SolarPoint. -
Seite 5: Wall Mounting
Wall Mounting 1. Attach the two wall mount brackets to the back of the SolarPoint. 2. Install the wall mount level securely to the wall. - Seite 6 3. Align the wall mount brackets over the wall mount level and slide it down until it is secure.
- Seite 7 Opening the Port Cover 1. Press down and slide the port cover forward. 2. Lift the port cover up.
- Seite 8 3. Remove the four-pin connector from the battery terminal block. 4. Crimp a ferrule on one end of the wire. 5. Insert the crimped wire into the appropriate slot on the four-pin connector. Using a flathead screwdriver, secure the wire to the connector by tightening the screw until it stops.
- Seite 9 6. Repeat steps four and five until the connector is fully occupied with all four wires. 7. Attach the NTC and battery cable using the four-pin connector. 8. Attach the PV panel cables.
- Seite 10 Connecting Ethernet 1. Connect Ethernet cable(s) to the Ethernet port(s). Note: PoE is disabled by default and can be enabled using the configuration interface. 2. When you are finished, close the port cover.
-
Seite 11: User Interface
Configuration Connect to your LAN via Ethernet or Wi-Fi. Ethernet If connected to the LAN via Ethernet, the SolarPoint will attempt to obtain an IP address automatically from a DHCP server. Use the Ubiquiti Device Discovery Tool to determine its IP address. If there is no DHCP server on the LAN, the SolarPoint will fall back to the following IP address: 192.168.1.20 Wi-Fi... - Seite 12 4. Click Set Device Location to set the location for your solar system installation. 5. Click Power on the Settings screen and fill out the battery and solar panel information. Enabling PoE To enable PoE on the SolarPoint: 1. Click Output on the Settings screen. 2.
-
Seite 13: Specifications
Specifications SM-SP-40 Dimensions 202 x 186 x 50 mm (7.95 x 7.32 x 1.97") Weight 650 g (1.43 lb) Enclosure Characteristics UV-Resistant Polycarbonate, Outdoor Use Max. Power Consumption Networking Interface (4) 10/100 Fast Ethernet Ports Management Interface Ethernet Wi-Fi (2.4 GHz) Button Reset LEDs... -
Seite 14: Safety Notices
Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm. - Seite 15 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
- Seite 16 IMPORTANT NOTE: Radiation Exposure Statement: • This equipment complies with radiation exposure limits set forth for an uncontrolled environment. • This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. • This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
- Seite 17 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
-
Seite 18: Declaration Of Conformity
Français La directive européenne 2012/19/UE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages. - Seite 19 Nederlands [Dutch] Hierbij verklaart UBIQUITI, dat deze SM-SP-40 apparaat, in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijnen 2014/53/EU, 2014/30/EU, 2014/35/EU. De volledige tekst van de EU-conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: ui.com/compliance English Hereby, UBIQUITI, declares that this SM-SP-40 device, is in compliance with the essential requirements and other relevant provisions of Directives...
- Seite 20 Lietuvių kalba [Lithuanian] UBIQUITI deklaruoja, kad šis SM-SP-40 įrenginys atitinka esminius reikalavimus ir kitas 2014/53/ES, 2014/30/ES, 2014/35/ES Direktyvų nuostatas. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: ui.com/compliance Malti [Maltese] Hawnhekk, UBIQUITI, tiddikjara li dan il-mezz SM-SP-40 huwa konformi mar-rekwiżiti essenzjali u dispożizzjonijiet rilevanti oħrajn ta ‘Direttivi 2014/53/UE, 2014/30/UE, 2014/35/UE.
- Seite 21 ©2019 Ubiquiti Inc. All rights reserved. Ubiquiti, the Ubiquiti U logo, the Ubiquiti beam logo, sunMAX, SolarPoint, TOUGHCable, and UNMS are trademarks or registered trademarks of Ubiquiti Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
