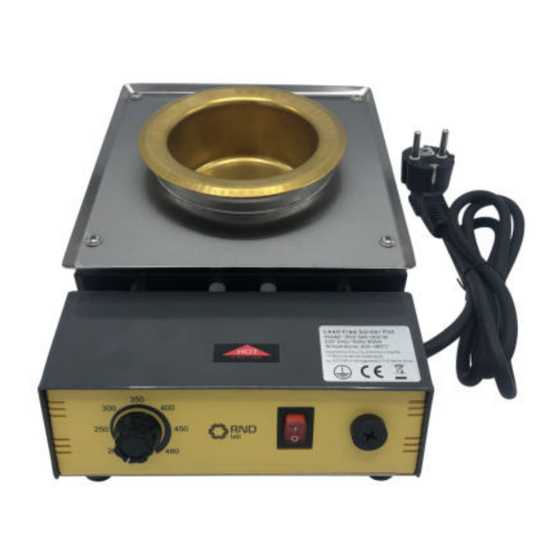

RND lab 560-00218 Bedienungsanleitung

Lead Free Solder Pot
Features:
Made of imported corrosion and heat resistant alloy materials with long life

Suitable for lead free work

Rapid temperature rising and good heat transfer

Accurate and stable temperature control

Specifications:
Rating power: 300W
Temperature range: 200-420℃
Melting time : 10-30 minutes
Max solder weight :1350g
Solder pot size: 80mm diameter
Input voltage : AC220V-240V 50Hz
Operating Instructions:
Make sure the pot is properly earthed. Do not put any other liquid in the pot.

After power it up, turn the knob to the high temperature setting to melt the tin. When the

tin turns into liquid, turn the knob back to your desired temperature. The best working
temperature for liquid tin is 300-350℃
Do not set the pot temperature too high, for this will shorten its life. When under high

temperature, the liquid tin will also turn black or yellow, and the pot may get leaked.
Attention:
The manufacturer assumes no liability for uses other than those described in the operating

instructions or for unauthorized alterations.
The operating instructions and cautions should be read carefully and kept in an easily visible

location near the solder pot. Non-compliance to the cautions can result in accidents, injury
or other health risks.
The power cord should only be used with compatible sockets or adapters.

 Before use, the pot should be carefully inspected for damage. Make sure that all power
connections are properly secured. Damaged parts must be repaired or replaced by a
qualified technician.
 When the solder pot is used for the first time, there will be wisps of smoke. It is normal and
non-hazardous.
RND is a trademark of Dätwyler Schweiz AG, Gotthardstrasse 31, 6460 Altdorf, Switzerland, info@rnd-electronics.com
