CARS7500 – REGULATED SWITCHING MODE CAR ADAPTER 150W
1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the CARS7500! It is designed to convert an 11-16VDC input (car plug) to a 15-24VDC output,
as required by most current notebook computers. It features overload and short circuit protection to avoid damage.
Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't
install or use it and contact your dealer.
2. Voltage & Polarity
The importer will not be held responsible for damaged or lost software or damage to a connected device.
Before connecting a device you should make sure that both the voltage and polarity are correct. Do not
change either voltage or polarity during operation. Contact your local dealer when in doubt.
a. Voltage
7 voltages are available: 15, 16, 18, 19, 20, 22 and 24VDC for a maximum consumption of 8.5A. Select the correct
voltage before connecting to your notebook. Note that an incorrect voltage cannot power up or may damage your
notebook. Consult with your local dealer if in doubt.
b. Polarity
The CARS7500 comes with 9 different adapter plugs.
Plug Dimensions and plug type
A 2.1 x 5.5mm / right angle
B 2.5 x 5.5mm / right angle
C 1.7 x 4.75mm / straight
D 3.0 x 6.3mm / straight
E 1.4 x 6.5mm / straight
F Dell plug
®
G 1.0 x 5.5mm / straight
H 1.9 x 5.5mm / straight
K 5.1 x 7.4mm / straight new Dell

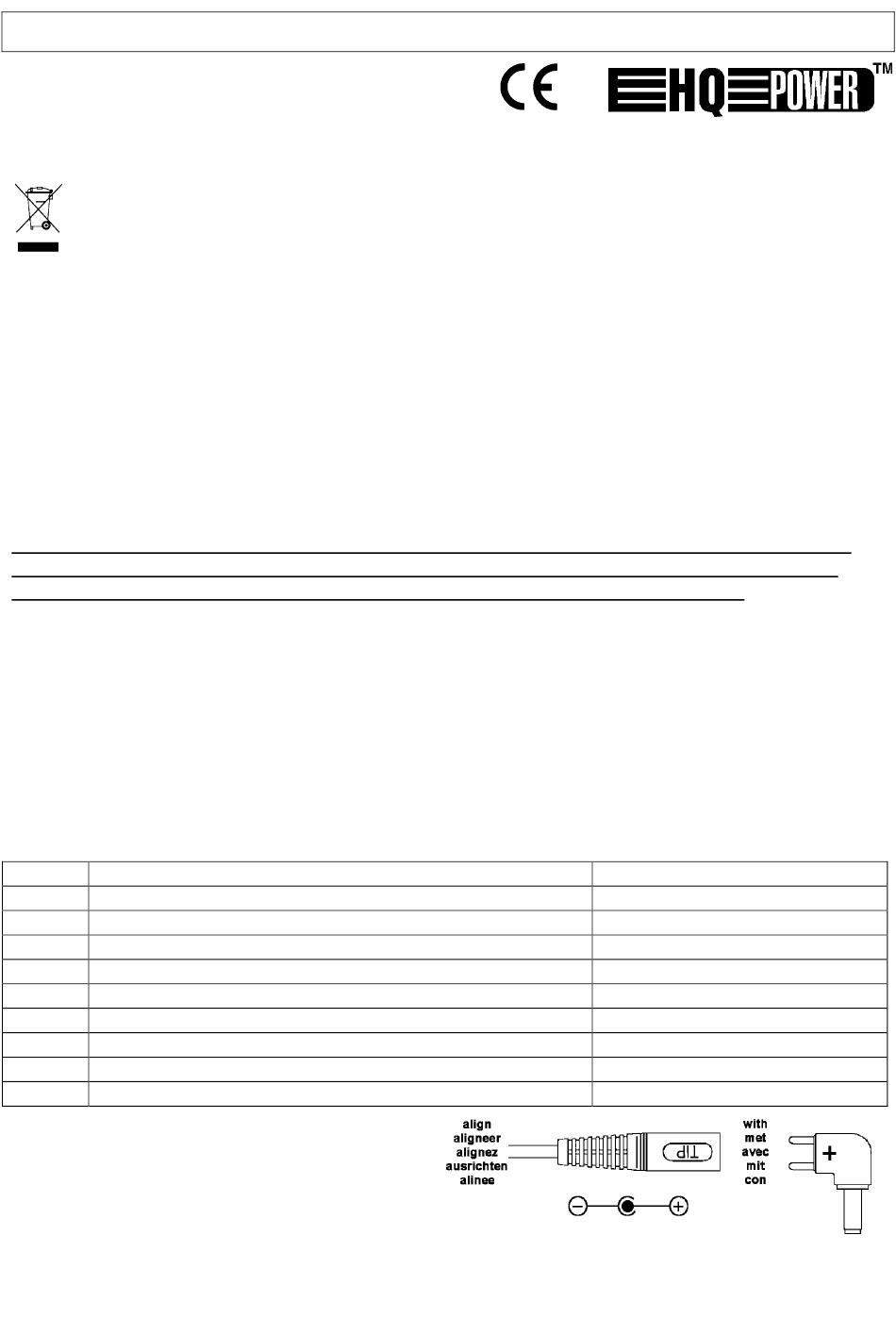

Select the one you need and connect it to the cable
end. The plugs can only be connected so as to obtain a
positive tip voltage. This is the most common type of
voltage supply connection for notebook computers.
Make sure to use the correct polarity with your notebook. A wrong polarity can damage the connected
device. Consult with your local dealer if in doubt.
CARS7500
plug
®
1
Tip colour
Orange
Red
Yellow
Black
Black
Yellow
Black
Black
