Operating Instructions

Initial operation

4 Initial operation
6
1
5
2
4
3

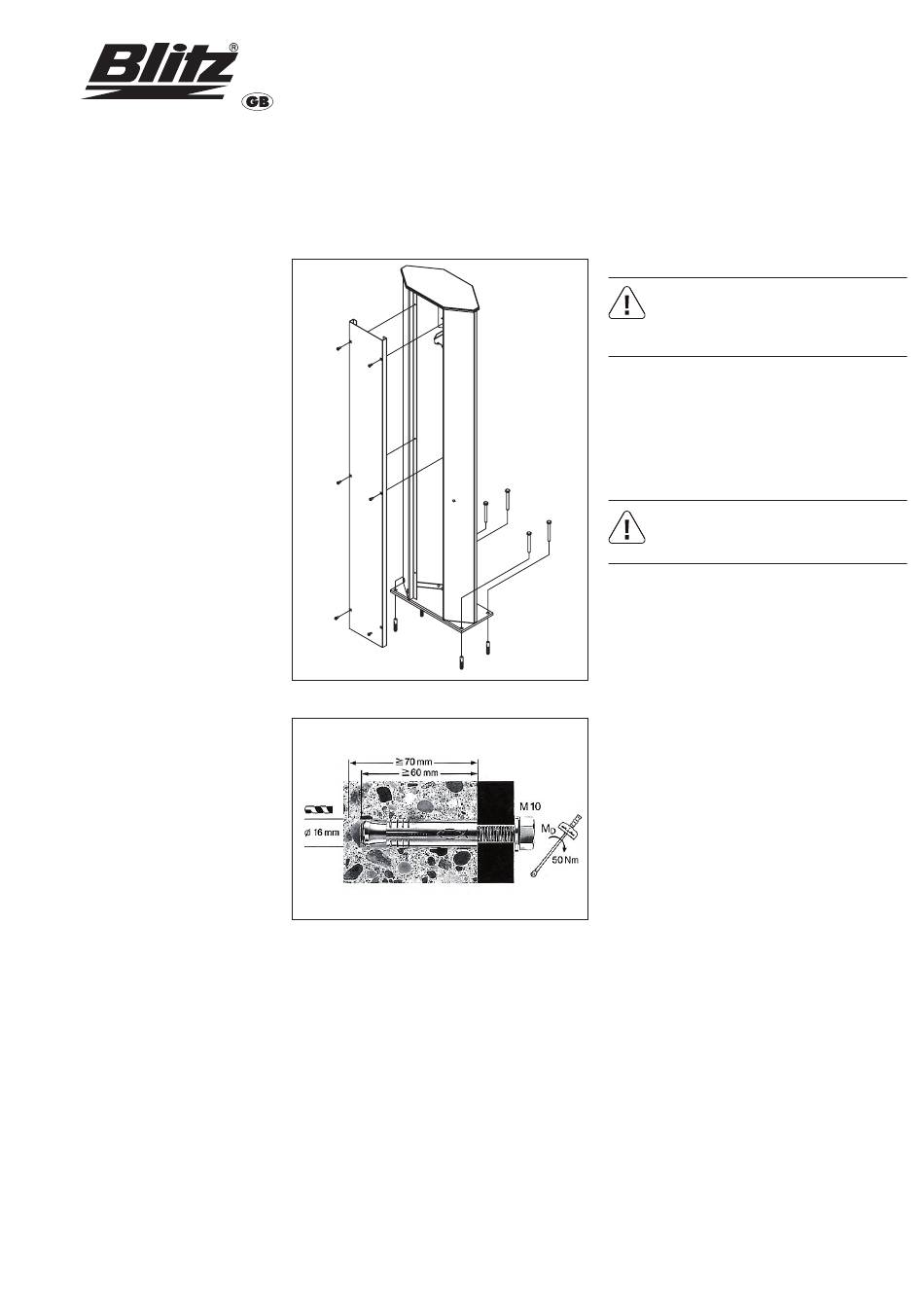

Fig. 3:
Fig. 4:
109493 07/11
4.1

Opening the floor stand

(Fig. 3)
Caution
Please note that the rear wall needs
to be separated from the housing to
attach and service the unit.
Remove the screws 1 to 6.

Remove rear wall

4.2

Opening the wall-mounted unit

(Fig. 1)
Caution
The power supply has to be connected
to the socket in the unit. Caution !
Loosen screws 1 to 4 to open the housing

After connecting the unit to a compressed-air
supply (pmin = 7 bar, pmax = 16 bar), the po-
wer supply can be established (230 v, 50 Hz).
The readiness for operation is indicated by
the display of the initial setpoint value of 2.0
bar in the upper LC display. The setting of the
pressure reducer to 6 bar should be checked.
Every time the unit is switched on, an ambient
pressure compensation is carried out by the
filling hose. For this reason, the unit must not
be connected to a tyre before switching on
(fault message E –5).
9
