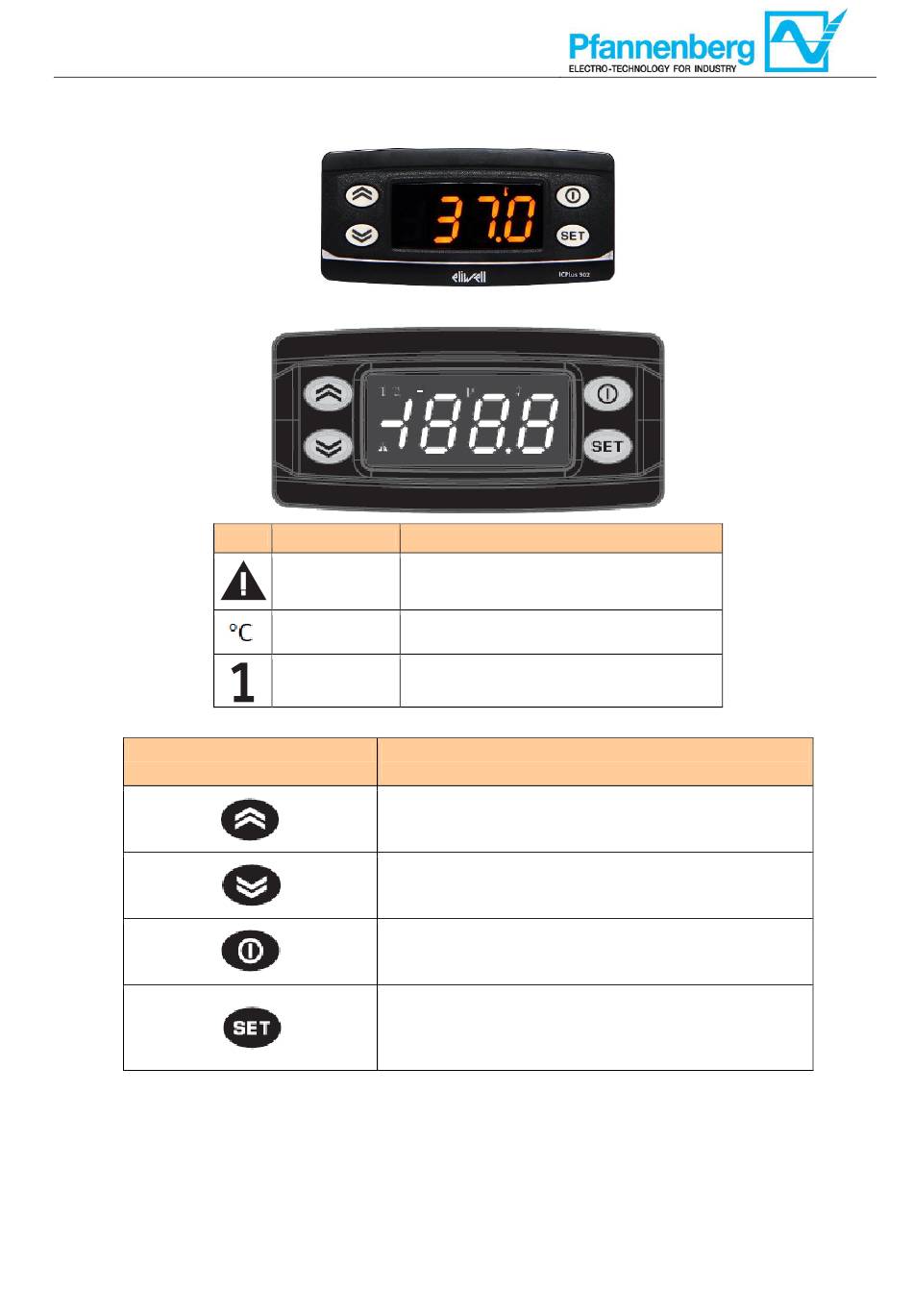

1. Main view

In main view, the target display shows the value measured by the thermoregulation probe.
Following table explains the meaning associated to LEDs.
Icon

2. Keys

Description
Alarm ON for an active alarm
°C With temperature value displayed
Relay of
Compressor is active
compressor
key
UP
Scroll menu items
Increases values
DOWN
Scroll menu items
Decrease values
STAND-BY (ESC)
Returns to the previous menu level
Confirms parameter value
SET (ENTER)
Displays alarms (if active)
Opens Machine Status menu
Confirm commands
