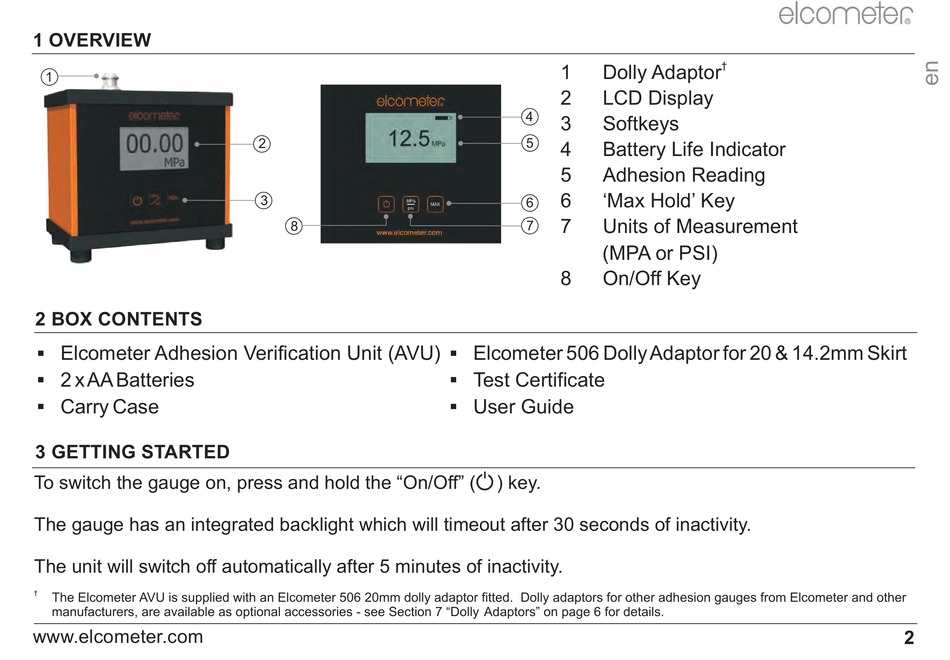

1 OVERVIEW

1

2 BOX CONTENTS

Elcometer Adhesion Verification Unit (AVU)
<
2 x AA Batteries
<
Carry Case
<

3 GETTING STARTED

To switch the gauge on, press and hold the "On/Off" (
The gauge has an integrated backlight which will timeout after 30 seconds of inactivity.
The unit will switch off automatically after 5 minutes of inactivity.
†
The Elcometer AVU is supplied with an Elcometer 506 20mm dolly adaptor fitted. Dolly adaptors for other adhesion gauges from Elcometer and other
manufacturers, are available as optional accessories - see Section 7 "Dolly Adaptors" on page 6 for details.
www.elcometer.com
2
3
8
1 Dolly Adaptor
2 LCD Display
4
3 Softkeys
5
4 Battery Life Indicator
5 Adhesion Reading
6 'Max Hold' Key
6
7 Units of Measurement
7
(MPA or PSI)
8 On/Off Key
Elcometer 506 Dolly Adaptor for 20 & 14.2mm Skirt
<
Test Certificate
<
User Guide
<
) key.
†
R
