EN
Channel Function
Control
54 (5 second activation
delay)
15

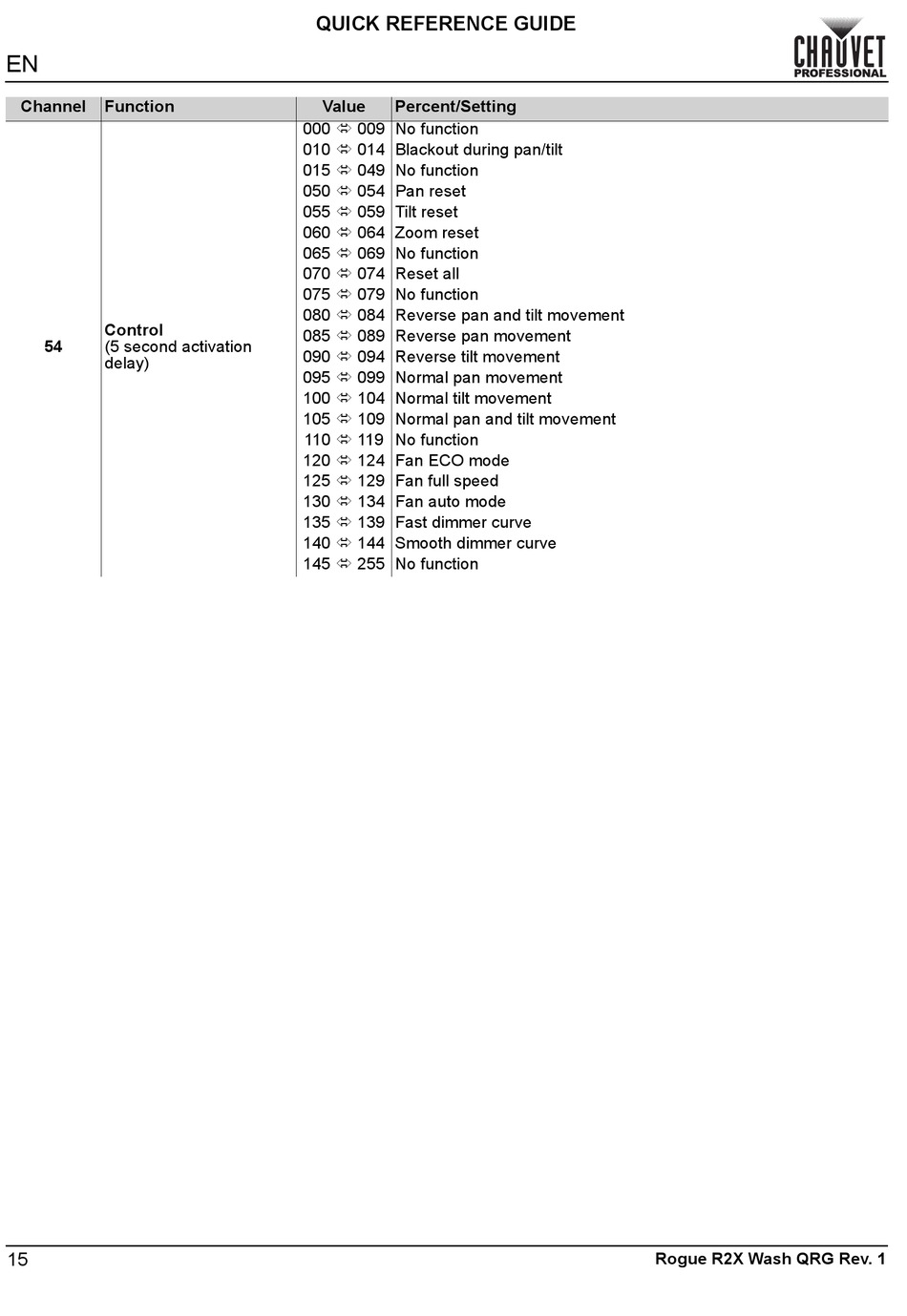

QUICK REFERENCE GUIDE
Value Percent/Setting
000  009 No function
010  014 Blackout during pan/tilt
015  049 No function
050  054 Pan reset
055  059 Tilt reset
060  064 Zoom reset
065  069 No function
070  074 Reset all
075  079 No function
080  084 Reverse pan and tilt movement
085  089 Reverse pan movement
090  094 Reverse tilt movement
095  099 Normal pan movement
100  104 Normal tilt movement
105  109 Normal pan and tilt movement
110  119 No function
120  124 Fan ECO mode
125  129 Fan full speed
130  134 Fan auto mode
135  139 Fast dimmer curve
140  144 Smooth dimmer curve
145  255 No function
Rogue R2X Wash QRG Rev. 1
