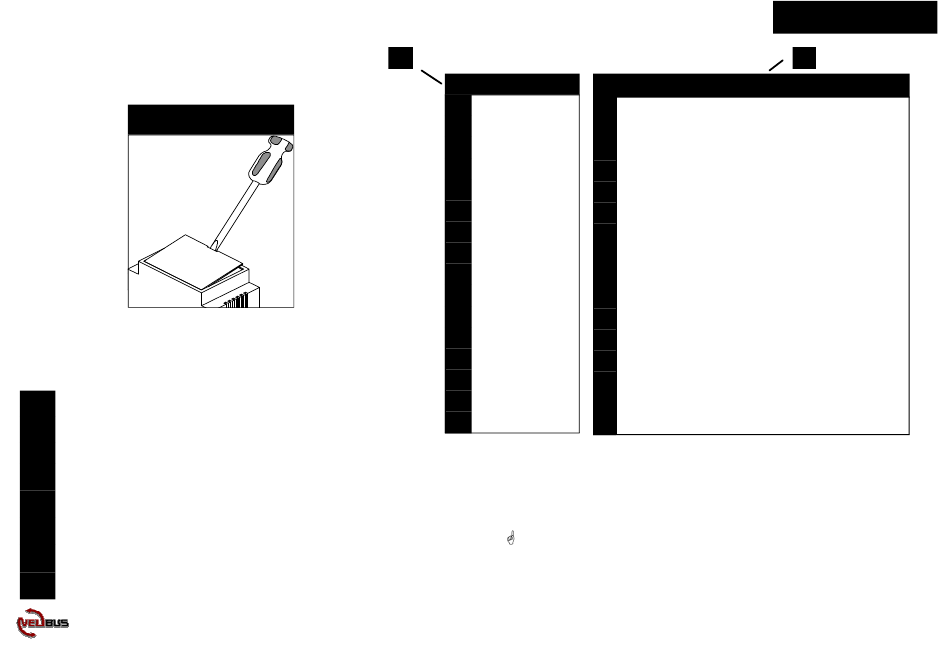

Removing the front
Operation mode setting channel 1
28
Operation mode setting channel 2
29
30 Operation mode setting channel 3
31 Operation mode setting channel 4
32 Time setting channel 1
Time setting channel 2
33
34 Time setting channel 3
35 Time setting channel 4
37
TIME 1
0 Momentary
1 5s
2 10s
3 15s
4 30s
5 1'
6 2'
5'
7
10'
8
9 15'
A 30'
B 1h
C 2h
D 5h
1day
E
On/Off
F
See also connection examples on page 32 & 33 !
MODE / TIME 2
0 Start-stop timer
1 Staircase timer
2 Non retriggerable timer
3 Turn off delay
4 Turn on delay
Trigger on release timer
5
Blinking timer
6
7 2-way timer (time 2 = 5')
8 2-way timer (time 2 = 10')
9 2-way timer (time 2 = 15')
A 2-way timer (time 2 = 30')
B 2-way timer (time 2 = 1h)
2-way timer (time 2 = 2h)
C
2-way timer (time 2 = 5h)
D
2-way timer (time 2 = 1 day)
E
2-way timer (time 2 = On/Off)
F
ENGLISH
36
