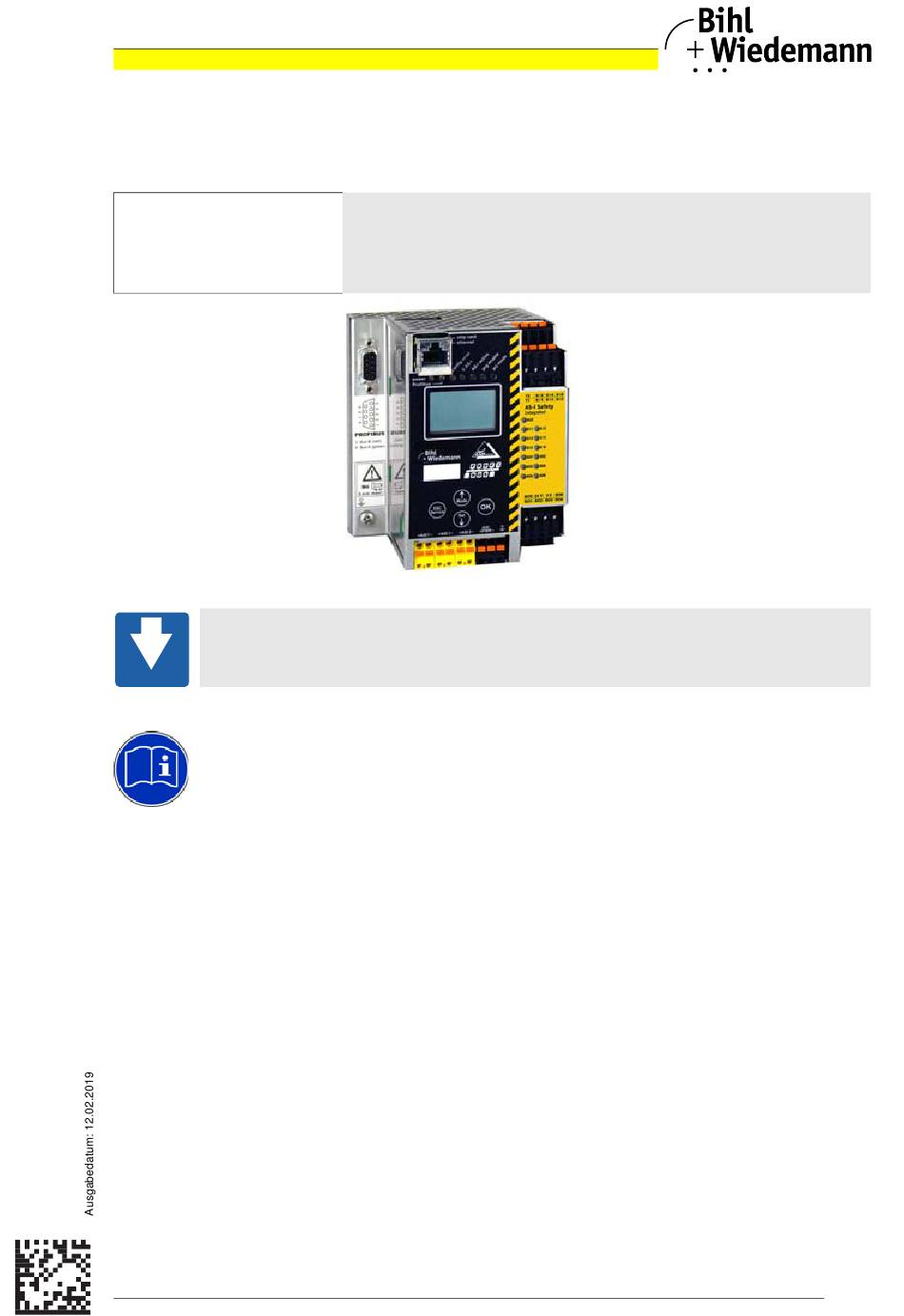

ASi-3 PROFIBUS Gateway mit integriertem Sicherheitsmonitor
Montageanweisung // Installation Instructions // ...
Montageanweisung // Installation Instructions // Notice de montage //
Istruzioni per il montaggio // Instrucciones de montaje
BWU2822
(Abbildung ähnlich // figure similar // figure similaire // figura simile // figura similar)
Login:
https://www.bihl-wiedemann.de
download
Anleitung lesen:
Bevor Sie mit dem Gerät arbeiten: Lesen Sie diese Anleitung komplett durch. Alle Sicherheitshinweise und
Vorgaben des Gerätehandbuchs und des Handbuchs zur Konfigurationssoftware sind einzuhalten! //
Read instruction:
Before working with this unit: read these instructions carefully and completely. All notes on safety and speci-
fications of the device manual and the manual for the configuration software are to be considered! //
Lire les instructions:
Avant de travailler avec ce module, veuillez lire l'intégralité de ces instructions. Observez les consignes de
sécurité et les instructions du manuel d'utilisation de l'appareil et du guide utilisateur du logiciel de
configuration. //
Leggere attentamente le istruzioni:
Prima di iniziare a operare sull'apparecchio, leggere attentamente le seguenti istruzioni. Si prega di tenere
conto anche delle indicazioni di sicurezza e delle istruzioni del manuale d'uso dell'apparecchio e del man-
uale per l'utente per il software di configurazione. //
Lea las instrucciones:
Antes de trabajar con el equipo lea por completo el manual de instrucciones. Todas las notas de seguridad
y especificaciones del manual del equipo y del manual del software de configuración deben ser respetadas.
Subject to technical modifications; no responsibility is accepted for the accuracy of this information
Internet: www.bihl-wiedemann.de • Flosswoerthstr. 41 • D-68199 Mannheim
ASi-3 PROFIBUS Gateway mit integriertem Sicherheitsmonitor
ASi-3 PROFIBUS Gateway with integrated Safety Monitor
Passerelle ASi-3 PROFIBUS avec moniteur de sécurité intégré
Gateway ASi-3 PROFIBUS con monitor di sicurezza integrato
Pasarela ASi-3 PROFIBUS con monitor de seguridad integrado
© Bihl+Wiedemann GmbH
phone: +49 621 33 996-0 • fax: +49 621 33 922 399
1
