Changing Coil Cables
TIPS FOR NUCLEUS® SOUND PROCESSORS
Changing coil cables is something you should only have to do occasionally, if you are fitting a microphone
cover sleeve or if you are replacing a coil cable. Remember when storing your processor overnight in the
Dry & Store unit, you should leave the coil connected and the microphone cover sleeve on (if fitted).
Using the correct method for changing coil cables reduces the risk of accidentally damaging the coil cable
and the coil cable sockets in the processing unit and the coil.

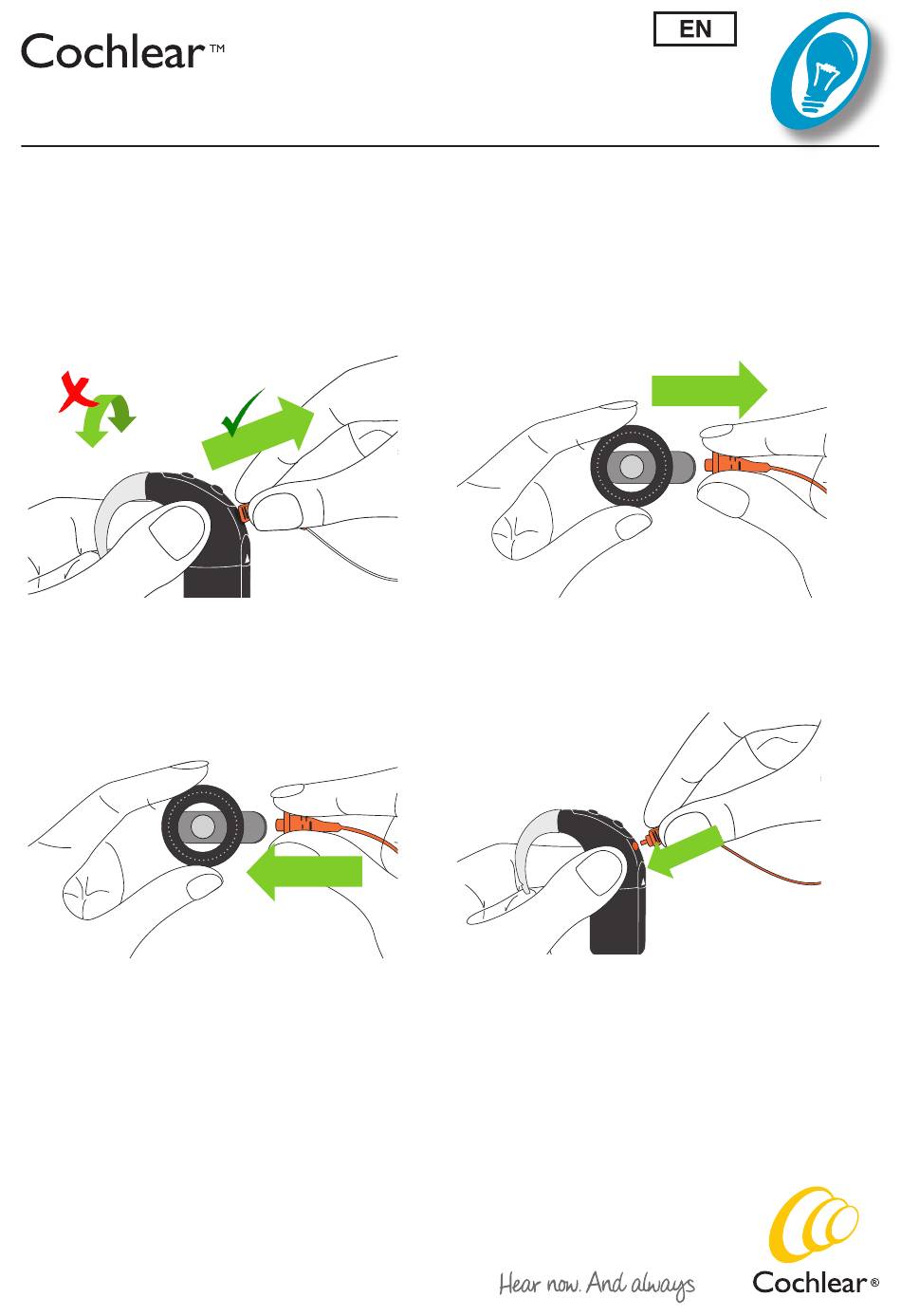

1.
Hold the coil cable by the grips and firmly
pull it straight out of the socket on the
processing unit. Do not twist.
3.
(If your coil and cable are a one-piece
unit, go to step 4.)
To attach the new coil cable, push
the coil cable plug into the coil until
it clicks into place.
To avoid breaking the coil cable, do not pull on the coil cable and do not twist the coil cable plug.
For more information, see your sound processor's User Guide.
Cochlear, Hear now. And always, Nucleus, and the elliptical logo are either
trademarks or registered trademarks of Cochlear Limited.
©Cochlear Limited 2014 588807 ISS2 AUG15
2.
(If your coil and cable are a one-piece unit,
go to step 4.)
Hold the base of the plug and firmly pull
the coil cable straight out of the coil.
4.
Push the coil cable into the coil cable
socket on the processing unit until it
clicks into place.
