Transmitter

Your Merlin Transmitter is an advanced controller designed for the beginner to be easy to use and tune. You will need to follow the steps below to
ensure you prepare the controller correctly for use and understand the adjustment possibilities available.

Preparing the transmitter

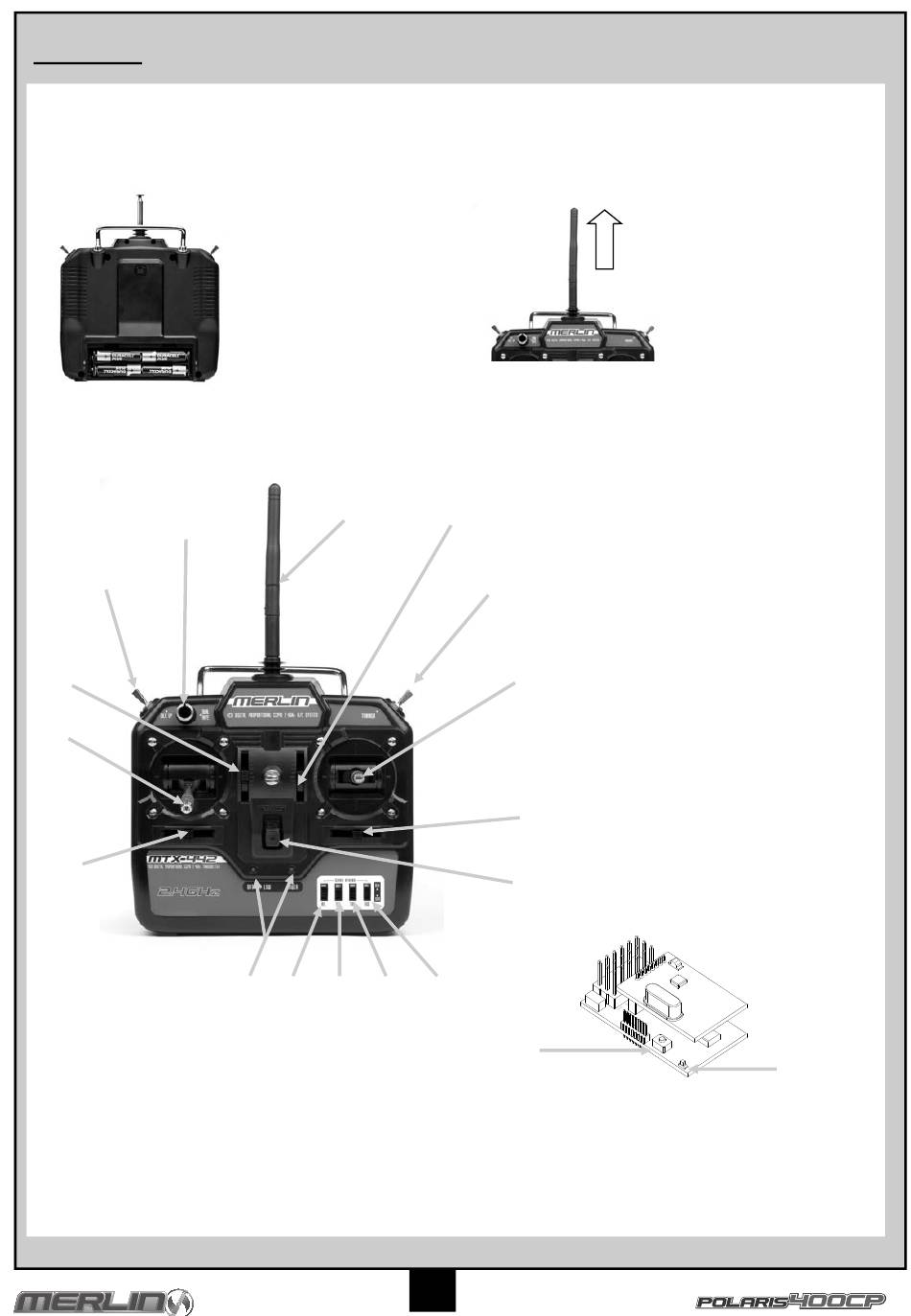

Transmitter Controls

16
14
2
5
13
Binding the transmitter to the model.
1. Switch on the transmitter, ensuring that the throttle control stick at its lowest position.
2. Connect the receiver battery to the receiver and wait until the Power Indicator LED on the receiver glows solid green.
3. Press and hold the Binding Button on the receiver for approximately 2 seconds until the Binding Indicator LED on the receiver goes solid
green, indicating the binding finished.
Open the battery holding tray to
expose the empty battery slots.
Insert 4 AA batteries into the
marked spaces. Please note the
correct direction of the batteries.
Incorrect battery insertion could
lead to damage.
1
8 10 12 11
4
1.
2.
3.
15
4.
5.
6.
7.
8.
9.
6
10.
11.
12.
13.
14.
15.
16.
3
17.
18.
7
9
17
3
Make sure the aerial on the
transmitter is fully upright before
switching the transmitter on.
Aerial
Throttle Trim
Cyclic L/R Trim
Cyclic F/B Trim
Throttle Stick
Cyclic Control Stick
Power Switch
Battery level indicator
Rudder reverse switch
Aileron reverse switch
Throttle reverse switch
Elevator reverse switch
Rudder Trim
Idle up switch
Training switch
Dual Rate
Binding Button
LED
18
