Video Server Max
Installation Guide
Ref No. VSERVER-MAX01 V01

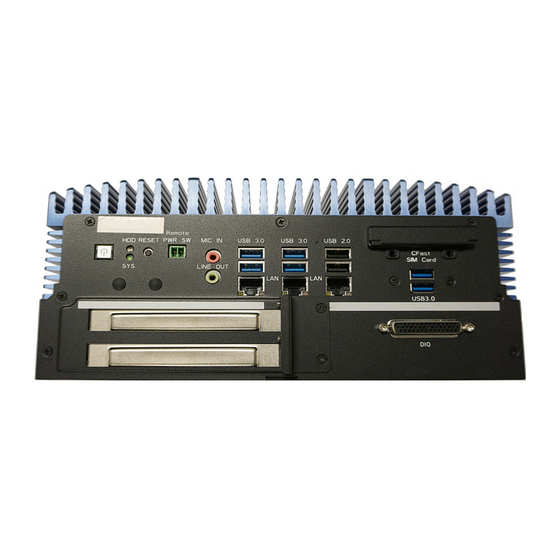

See below for labelled connection points on the Video Server Max.
Fig 1:
Set Up Instructions
1.
Connect 19V DC power supply
to socket marked "DC IN 9-36V"
using power supply and cable
provided
2.
Connect Video Server Max to the
network using one of the LAN
ports with an RJ45 LAN/Ethernet
patch cable (not provided).
3.
Ports "HDMI 1" and "HDMI
2" are for connection to
external display, to be used for
monitoring of output or setup of
Video Server Max (not provided).
4.
USB ports for use to load
content onto internal storage of
Video Server Max.
5.
A USB TV tuner is supplied with
the Video Server Max. This can
be connected to any available
USB port on the Video Server
Max.
6.
For terrestrial TV signals utilise
the supplied USB TV adapter.
The USB TV tuner adapter can
be used with external antenna
signals utilising the "Belling-Lee
connector" on the end of the
USB adapter.
7.
For Composite Video or S-Video
connection you will neeed to
connect the adapter provided
to the USB TV Tuner utilising the
port on the side of the device.
8.
For S-Video connect the
external device to the S-Video
connector on the USB TV Tuner.
9.
For Composite Video connect
the video feed to the "Yellow"
plug and the left and right audio
signal to the "Red" and the
"White" plugs.
10.
For HDMI connect the HDMI
input source to the "HDMI
IN" port. (Only applicable to
VSERVER-MAX-901)
Avire Ltd
Unit 1, The Switchback
Gardner Road
Maidenhead
Berkshire
SL6 7RJ, UK
Fig 2:
Caution:
1.
Risk of electric shock. Never
remove the casing of the unit
2.
Ensure that the Power Supply
is connected properly and that
the voltage is correct before
turning on the System
3.
Ensure that the unit is handled
with care. Do not place heavy
items on top of the unit. Do not
have major movement on the unit
when the system is in operation
4.
Do not block or allow dust to
accumulate in the cooling vents
T:
01628 540100
F:
01628 621947
E:
sales.uk@avire-global.com
W:
www.avire-global.com
