4.2.
(SEt folder)

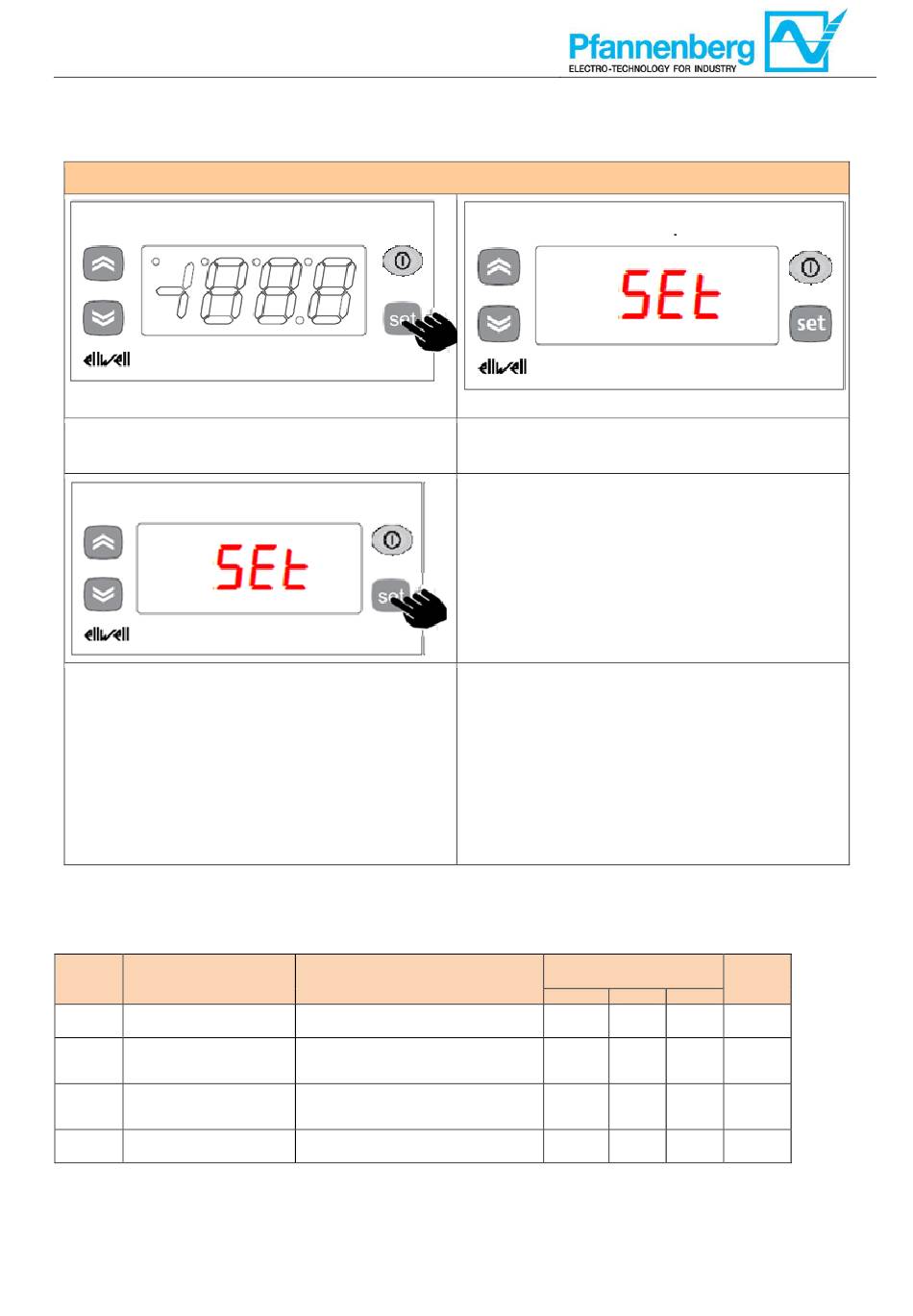

In main view, press the set key to access the

Status / Setpoint menu.

Press set key again to view the value of selected
parameter. To modify this value Press the "up"
and "down" keys. Press the set key once you
have entered the required value.* Press the esc
key to exit this display and go back to the
previous level.
*
N.B. pressing the set key will confirm the value entered;
Pressing the esc key will take you back to the previous level
without saving the value entered.

5. Errors table

Label Description
Water Temperature Probe
E1
Fault
Alarm for HIGH
AH1/2 Water Temperature Probe
temperature
Alarm for LOW
AL1/2 Water Temperature Probe
temperature
EA External alarm
6. Max Temperature Alarm (with installed option)
The regulator gets the temperature measure from the thermoregulation probe; the setpoint of Max temperature Alarm is
40°C for Rack units.
6
Status / Setpoint menu
Status menu
Reset
Automatic (after replacing/repairing of the
probe)
AUTO (after temperature drops)
AUTO (after temperature drops)
Manual High Pressure Pressure switch
(PC2500 option)
70040-125_01-_.docx
folder "SEt" will appears
Stops
Comp. Fan
OFF OFF
-
-
OFF OFF
Type of
Error
Pump
- Alarm
- - Warning
- - Warning
- Alarm
