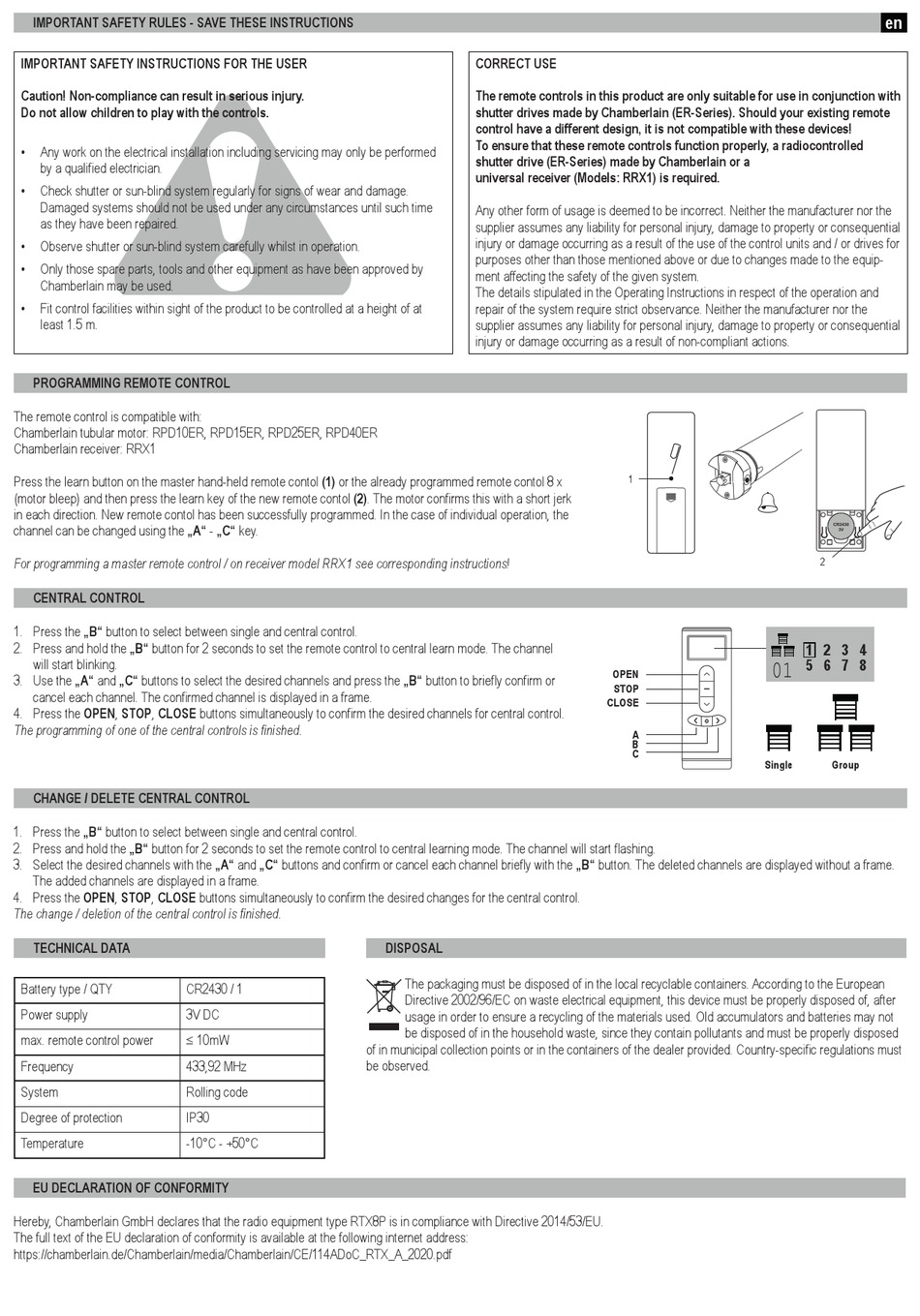

Chanberlain RTX8P Bedienungsanleitung Seite 2

IMPORTANT SAFETY RULES - SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS FOR THE USER
Caution! Non-compliance can result in serious injury.
Do not allow children to play with the controls.
• Any work on the electrical installation including servicing may only be performed
by a qualified electrician.
• Check shutter or sun-blind system regularly for signs of wear and damage.
Damaged systems should not be used under any circumstances until such time
as they have been repaired.
• Observe shutter or sun-blind system carefully whilst in operation.
• Only those spare parts, tools and other equipment as have been approved by
Chamberlain may be used.
• Fit control facilities within sight of the product to be controlled at a height of at
least 1.5 m.
PROGRAMMING REMOTE CONTROL
The remote control is compatible with:
Chamberlain tubular motor: RPD10ER, RPD15ER, RPD25ER, RPD40ER
Chamberlain receiver: RRX1
Press the learn button on the master hand-held remote contol (1) or the already programmed remote contol 8 x
(motor bleep) and then press the learn key of the new remote contol (2). The motor confirms this with a short jerk
in each direction. New remote contol has been successfully programmed. In the case of individual operation, the
channel can be changed using the „A" - „C" key.
For programming a master remote control / on receiver model RRX1 see corresponding instructions!
CENTRAL CONTROL
1. Press the „B" button to select between single and central control.
2. Press and hold the „B" button for 2 seconds to set the remote control to central learn mode. The channel
will start blinking.
3. Use the „A" and „C" buttons to select the desired channels and press the „B" button to briefly confirm or
cancel each channel. The confirmed channel is displayed in a frame.
4. Press the OPEN, STOP, CLOSE buttons simultaneously to confirm the desired channels for central control.
The programming of one of the central controls is finished.
CHANGE / DELETE CENTRAL CONTROL
1. Press the „B" button to select between single and central control.
2. Press and hold the „B" button for 2 seconds to set the remote control to central learning mode. The channel will start flashing.
3. Select the desired channels with the „A" and „C" buttons and confirm or cancel each channel briefly with the „B" button. The deleted channels are displayed without a frame.
The added channels are displayed in a frame.
4. Press the OPEN, STOP, CLOSE buttons simultaneously to confirm the desired changes for the central control.
The change / deletion of the central control is finished.
TECHNICAL DATA
Battery type / QTY CR2430 / 1
Power supply 3V DC
max. remote control power ≤ 10mW
Frequency 433,92 MHz
System Rolling code
Degree of protection IP30
Temperature -10°C - +50°C
EU DECLARATION OF CONFORMITY
Hereby, Chamberlain GmbH declares that the radio equipment type RTX8P is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
https://chamberlain.de/Chamberlain/media/Chamberlain/CE/114ADoC_RTX_A_2020.pdf
CORRECT USE
The remote controls in this product are only suitable for use in conjunction with
shutter drives made by Chamberlain (ER-Series). Should your existing remote
control have a different design, it is not compatible with these devices!
To ensure that these remote controls function properly, a radiocontrolled
shutter drive (ER-Series) made by Chamberlain or a
universal receiver (Models: RRX1) is required.
Any other form of usage is deemed to be incorrect. Neither the manufacturer nor the
supplier assumes any liability for personal injury, damage to property or consequential
injury or damage occurring as a result of the use of the control units and / or drives for
purposes other than those mentioned above or due to changes made to the equip-
ment affecting the safety of the given system.
The details stipulated in the Operating Instructions in respect of the operation and
repair of the system require strict observance. Neither the manufacturer nor the
supplier assumes any liability for personal injury, damage to property or consequential
injury or damage occurring as a result of non-compliant actions.
DISPOSAL
The packaging must be disposed of in the local recyclable containers. According to the European
Directive 2002/96/EC on waste electrical equipment, this device must be properly disposed of, after
usage in order to ensure a recycling of the materials used. Old accumulators and batteries may not
be disposed of in the household waste, since they contain pollutants and must be properly disposed
of in municipal collection points or in the containers of the dealer provided. Country-specific regulations must
be observed.
1

01
OPEN
STOP
CLOSE
A
B
C
Single
en
CR2430
3V
2
1 2 3 4
5 6 7 8
Group
