BOX CONTENTS

•
Miniak
•
Gooseneck microphone
•
Power adapter
•
Quickstart Guide
•
Reference Manual
•
Safety Instructions & Warranty Information Booklet

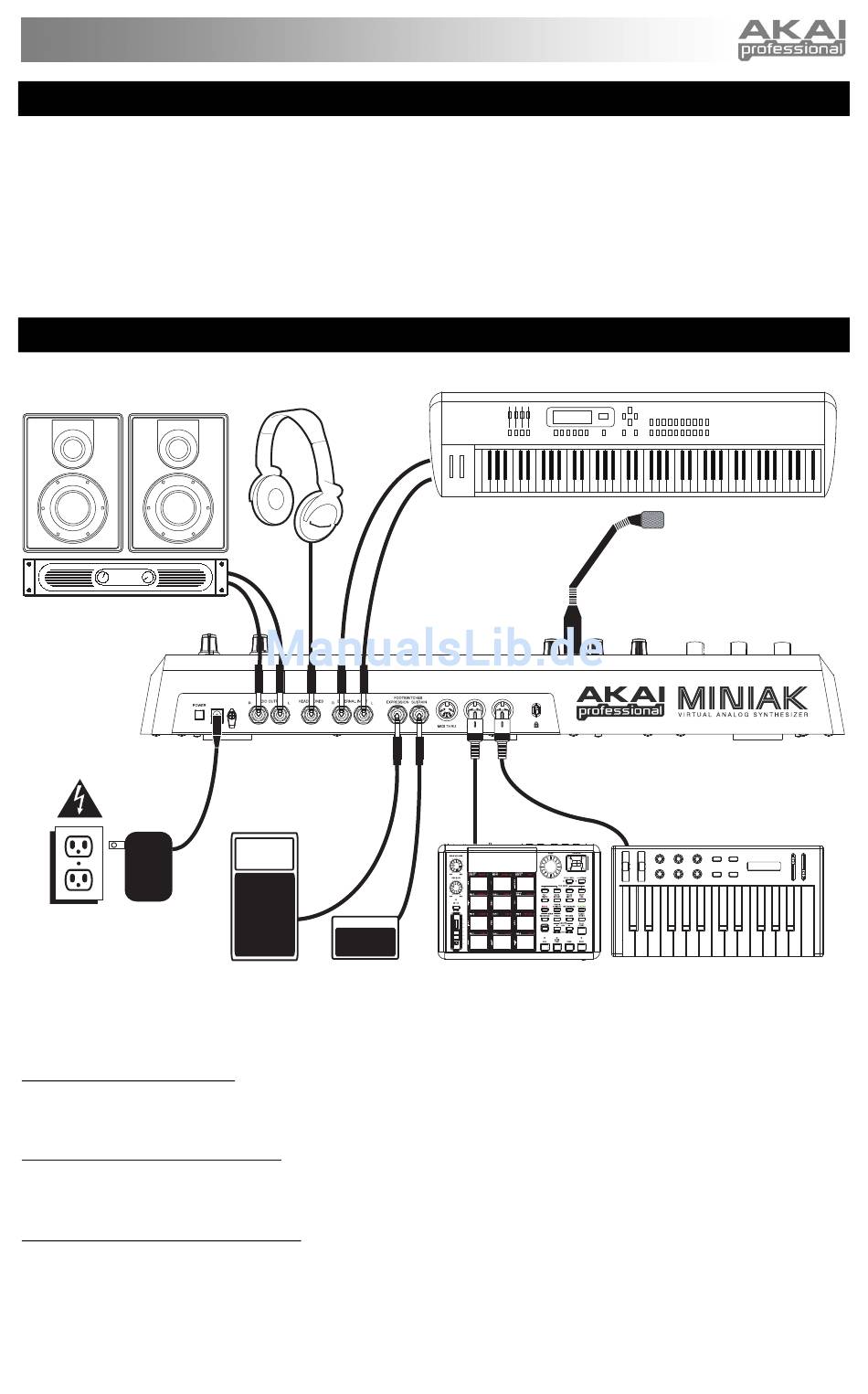

CONNECTION DIAGRAM

Stereo Amp
Power
CONNECTING AC POWER
Before making any power connections, make sure the Miniak's power switch is turned off. Then, plug the
power adapter into the Miniak's power input and into a power outlet.
MAKING AUDIO CONNECTIONS
STEREO: Connect two cables from the Miniak's left and right outputs to two inputs of an amp or mixer.
HEADPHONES: Plug a set of headphones into the headphone jack on the rear panel.
CONNECTING THE FOOT PEDALS
Connect a keyboard sustain pedal (not included) to the (SUSTAIN) input. When you turn the Miniak on, the
Miniak will automatically sense and calibrate itself to the pedal.
You can plug an optional continuous controller expression pedal into the (EXPRESSION) input.
Headphones
Footswitch
Expression
Pedal
External Instrument
External Sound
Module
1
Gooseneck
Microphone
External MIDI Device
