Operating manual
talis II RC IR10 – service remote control
General
EN
• talis II RC IR10 is a service remote control
for commissioning and flexible adjustment
of individual parameters. It is suitable for the
following presence detectors:
− talis II P 360-24-1i
− talis II PHB-20-1i
− talis II PC 40-5-1i
• Interventions in and modifications to the device
shall result in loss of warranty and guarantee.
• Read and observe this manual in order to
ensure trouble-free functioning of the device
and safe work.
For more information:
http://qrc.graesslin.de/801015327
Commissioning
Before using the product, remove the protective foil
between the battery and the contact (Fig. 2).

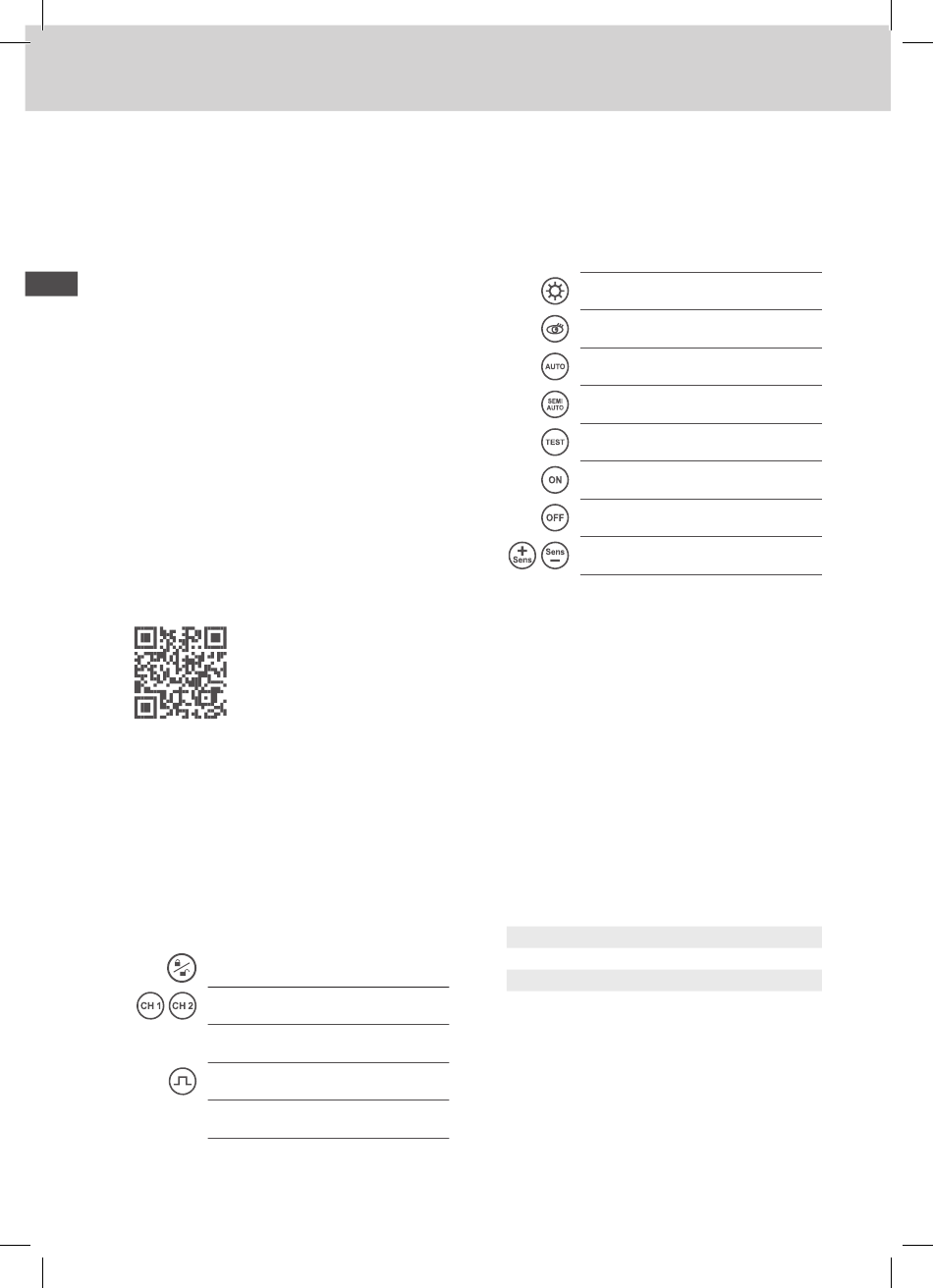

Operation
Lock/unlock the IR receiver
Select channel CH1 or CH2
TIME: Set time for delay time of 30 s to 60 min
Brief pulse
LUX: Set lux from 10 lux to 2000 lux
4
Daylight; the sensor switches at any
brightness
Teach-in mode for switching at any
ambient light
Automatic mode
Semi-automatic mode
Test mode
10 hours ON mode
10 hours OFF mode
Set the sensitivity
Menu sequence
1. Unlock the IR receiver.
The LED on the IR receiver flashes twice.
2. Select the channel.
3. Make the desired settings.
4. Lock the IR receiver.
The LED on the IR receiver lights up for two
seconds.
If no button is pressed for 30 seconds, the menu
sequence is terminated and the IR receiver is
locked again.
Technical data
Battery 3 VDC lithium CR2032
Transmission range < 15 m (Fig. 3)
Transmission angle 30° (Fig. 3)
Ambient temperature 0 °C to +40 °C
