Connection procedure – socket no. 1:
1. Current and input power – check the appliance's label to make
sure it uses the appropriate current and input power in mA and
W. The value must be equal or lower than 2,250 mA and 27 W;
valid for plugging in the cable via connector 1.
2. Output voltage can be adjusted – use the turn switch to set the
desired voltage based on the appliance. The turn switch is located
on the bottom side of the power supply so that there is no risk
of accidental switching of the voltage value during operation.
3. Output connector – choose a connector suitable for your
appliance (you can test by plugging into the socket in the
appliance first).

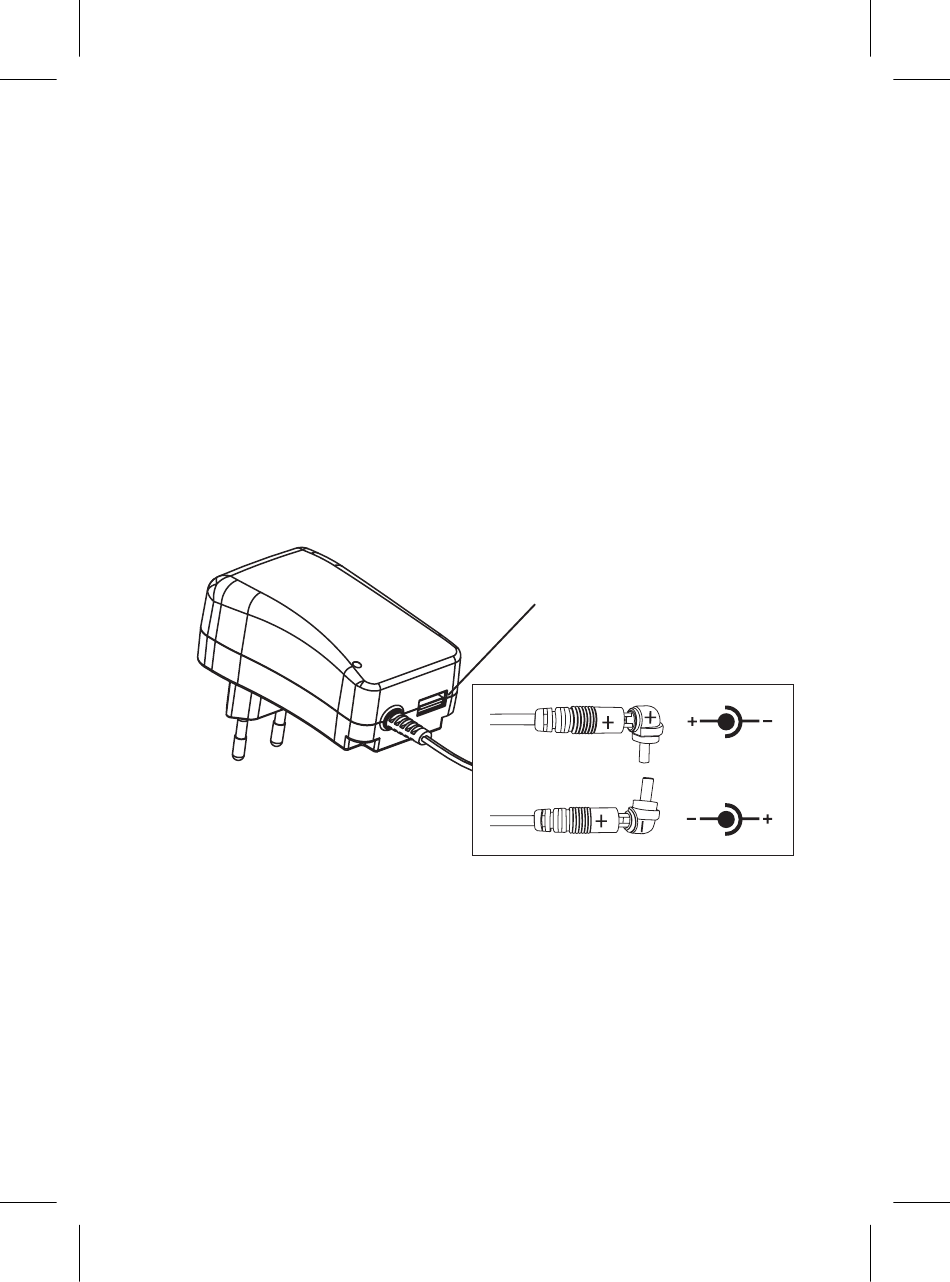

4. Choose the connector's correct polarity according to the label
on your appliance. Then insert it into the socket at the end of the
cable of the AC adapter. See the scheme below:
5. If the appliance is not being charged or it doesn't work, the most
probably the voltage polarity of the charging source needs to be
changed. Disconnect the charging connector immediately from
the socket of the charging source, turn it about 180 degrees and
insert it into the cable again.
6. If the appliance does not run or runs incorrectly, immediately
disconnect the power supply from the appliance.
