HAA80 -- SECURITY PANEL WITH KEY SWITCH
1. Introduction and Characteristics
Thank you for buying the HAA80 ! The HAA80 was designed for security applications with ON/OFF control. The
keypad is equipped with universal connection terminals and can be therefore be used with most alarm systems.
The HAA80 is equipped with a N.O. contact, an anti-tamper switch and 2 LEDs to be connected at will.
2. Description
1-2 : N.O. contact of the key switch (max. 3A). Turn the key clockwise 90° in order to establish contact.
3-8 : Green LED with an internal resistor of 1Kohm, connected in series. Connect the positive (+) power supply of
12VDC with 3 and the ground connection (-) with 8.
4-7 : Red LED with an internal resistor of 1Kohm, connected in series. Connect the positive (+) power supply of
12VDC with 4 and the ground connection (-) with 7.
5-6 : The N.C. contact of the anti-tamper switch (max. 0.5A) is closed when the housing is closed. Slide the flexible
sleeve (included) over the lever of the anti-tamper switch, ensuring that the latter is pressed down when the
housing is closed.

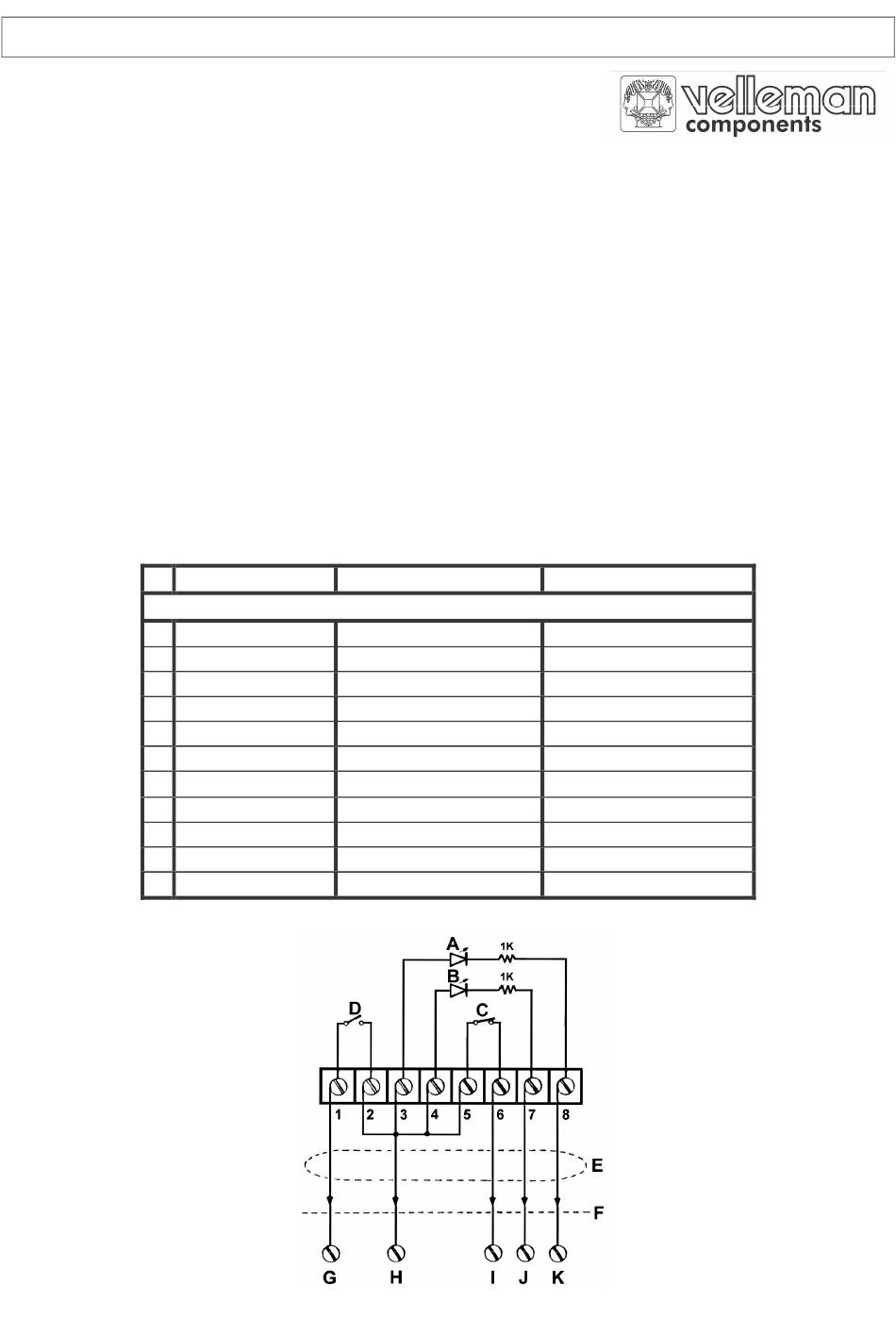

3. Connection Terminals
A
B
C
D
E
F alarm control panel
G
H
I
J
K
HAA80
ENGLISH
green
red
tamper switch anti-sabotage schakelaar interrupteur anti-sabotage
key switch
5-core wire
ON/OFF control
+12V supply
tamper
red LED (-)
green LED (-)
NEDERLANDS
groen
rood
sleutelschakelaar
5-aderige kabel
controlepaneel
ON/OFF controle
+12V voeding
anti-sabotage
rode LED (-)
groene LED (-)
1
FRANÇAIS
vert
rouge
interrupteur à clé
câble à 5 brins
panneau de commande
contrôle ON/OFF
alimentation +12V
anti-sabotage
LED rouge (-)
LED verte (-)
