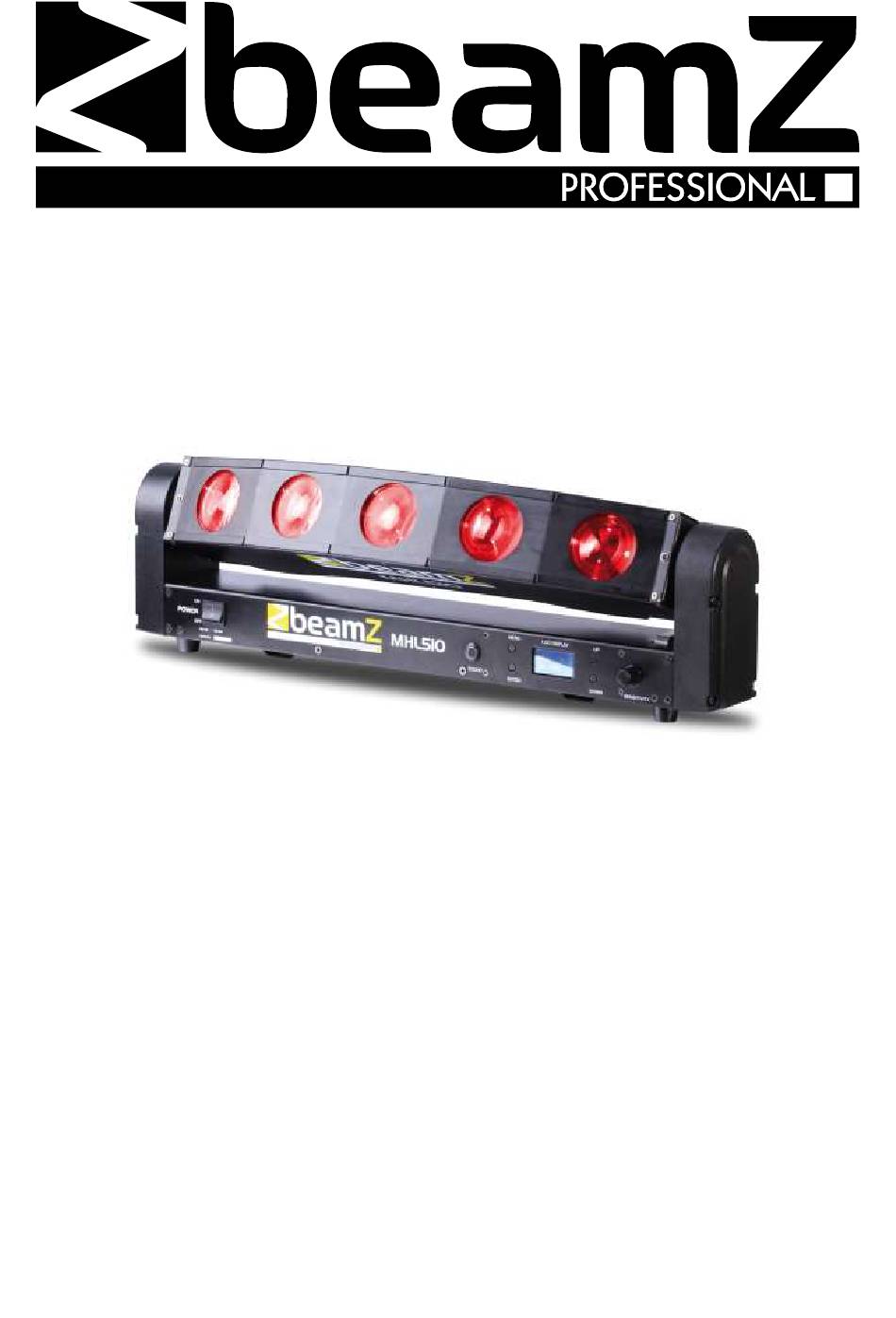

- Seite 1 MHL510 LED Beam Bar 5x10W Quad Ref. nr.: 150.516 INSTRUCTION MANUAL GEBRUIKSAANWIJZING GEBRAUCHSANLEITUNG MANUAL DE INSTRUCCIONES V1.3...
- Seite 2 ENGLISH Congratulations to the purchase of this Beamz light effect. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features. Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock.
- Seite 3 NEDERLANDS Hartelijk dank voor de aanschaf van dit Beamz lichteffect. Neemt U a.u.b. een paar momenten de tijd om deze handleiding zorgvuldig te lezen, aangezien wij graag willen dat u onze producten snel en volledig gebruikt. Lees deze handleiding eerst door alvorens het product te gebruiken. Volg de instructies op anders zou de garantie wel eens kunnen vervallen.
- Seite 4 DEUTSCH Vielen Dank für den Kauf dieses Beamz gerat. Nehmen Sie sich einen Augenblick Zeit, um diese Anleitung sorgfältig durchzulesen, damit sie die Möglichkeiten, die unser Produkt bietet, sofort voll ausnutzen können. Lesen Sie erst die Anleitung vollständig vor der ersten Inbetriebnahme durch. Befolgen Sie die Anweisung, da sonst jeglicher Garantieanspruch verfällt. Treffen Sie stets alle Sicherheits-vorkehrungen um Feuer und/oder Stromschlag zu vermeiden.
- Seite 5 ESPAÑOL Enhorabuena por la compra de este efecto de luces Beamz. Por favor lea atentamente este manual antes de usar el aparato para disfrutar al completo de sus prestaciones. Seguir las instrucciones le permite no invalidar la garantía. Tome todas las precauciones para evitar que se produzca fuego o una descarga eléctrica.
-
Seite 6: Installation
INSTALLATION CAUTION: Please consider the respective national norms during the installation! The installation must only be carried out by an authorized employee or dealers! Attention: The installation of the fixture has to be built and constructed in a way that it can hold 10 times the weight for 1 hour without any harming deformation. - Seite 7 FIXTURE CLEANING The cleaning of internal and external optical lenses and/or mirrors must be carried out periodically to optimize light output. Cleaning frequency depends on the environment in which the fixture operates: damp, smoky or particularly dirty surrounding can cause greater accumulation of dirt on the unit’s optics. ...
-
Seite 8: Control Menu
CONTROL MENU Operation Display Description Dmx512 MENU1: UP/DOWN to choose start-address 1-512, press ENTER to save Dmx512 17CH: xxx PRESS Dmx512 UP/DOWN to choose start-address 1-512, press ENTER to save ENTER 12CH: xxx MENU2: Tilt Tilt turns clockwise, press ENTER to save Tilt PRESS Tilt... - Seite 9 DMX SETTING 12 Channels Channel Function Value Description 000-255 Y-16bit 000-255 Dimming 000-255 From dark to bright 000-255 From dark to bright Green 000-255 From dark to bright Blue 000-255 From dark to bright White 000-255 From dark to bright Strobe 000-255 From slow to fast...
- Seite 10 17 Channels Channel Function Value Description 000-255 Y-16bit 000-255 Dimming 000-255 From dark to bright 000-255 From dark to bright Green 000-255 From dark to bright Blue 000-255 From dark to bright White 000-255 From dark to bright Strobe 000-255 From slow to fast Stand-alone/sound- 001-007...
-
Seite 11: Dmx-512 Connection
122-151 Red + Green 152-181 Red + Blue 182-211 Green + Blue 212-241 Red + Green 242-255 Red + Green + Blue White LED 3 002-031 032-061 Green 062-091 Blue 092-121 White 122-151 Red + Green 152-181 Red + Blue 182-211 Green + Blue 212-241... -
Seite 12: Dmx Mode
DMX MODE This mode allows you to use universal DMX-512 console to operate. 1. Install the units in a suitable position. 2. Use standard XLR cable to connect your units together via the XLR connector on the rear of the units. For longer cable we suggest a terminator at the last fixture. -
Seite 13: Technical Specification
TECHNICAL SPECIFICATION Rated voltage : AC110～240V 50/60Hz Rated power : 120W 5x 10W RGBW 4in1 Control Signal : DMX signal DMX Channel : 12/17 Channels Function : DMX, Auto, Sound active and Master-Slave. Dimensions per unit : 85 x 600 x 165mm Weight (per unit) : 7.15Kg The specifications are typical. - Seite 15 CE Declaration of Conformity Manufacturer: TRONIOS BV Bedrijvenpark Twente 415 7602 KM - ALMELO Tel : 0031546589299 Fax : 0031546589298 The Netherlands Product number: 150.516 Product Description: MHL510 LED Beam Bar 5x 10W Quad Regulatory Requirement: EN 60598-1:2015 EN 60598-2-17:1989+A2:1991 EN 62493:2015 EN 62031:2008+A1:2013+A2:2015 EN 62471:2008...
- Seite 16 Specifications and design are subject to change without prior notice.. www.tronios.com Copyright © 2014 by TRONIOS the Netherlands...
