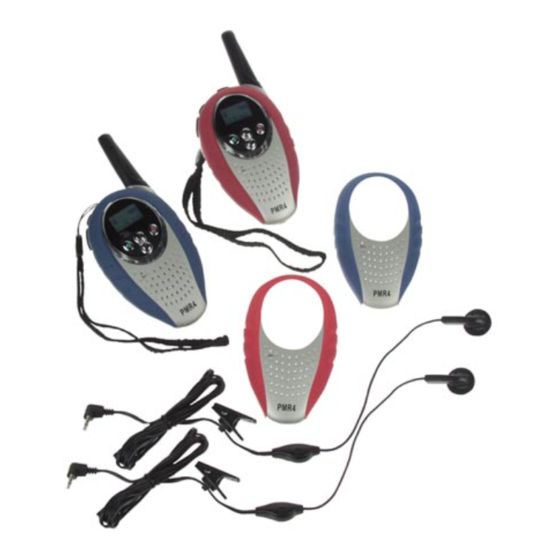

PMR4SET – PMR TRANSMITTER/RECEIVER SET
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the
environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised company for
recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the PMR4SET. Read this manual carefully before using your PMR4SET.
Only for use in following countries: Austria, Belgium, Bulgaria, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece,
Hungary, Iceland, Ireland, Italy, Latvia, Czech Republic, Liechtenstein, Lithuania, Luxemburg, the Netherlands, Norway,
Portugal, Slovenia, Spain, Sweden, Switzerland, Turkey, United Kingdom.
2. Features
a. Buttons and Controls
1. Earphone/mic jack
2. Call key
3. PTT key
4. Volume control
5. Microphone
b. Display
1. Normal status
VOX status
2. Key lock
3. Battery level indicator:
Batteries OK
Batteries low: when this icon is blinking, it is recommended to install new or recharged batteries
4. Sub code:
CTCSS code (1-38 sub codes)
No display (no code)
5. Band: PMR 1-8
6. Indicator:
"R": indicates the unit is receiving
"T": indicates the unit is transmitting
3. Installing / Recharging Batteries
1) Make sure the unit is switched off. Press the button on the belt clip and turn it counter clockwise.
2) Open the battery compartment.
3) Insert 4 AAA-batteries, respecting the polarity.
4) Put the battery compartment cover back on & lock it by rotating the belt clip back into its normal position
NOTE: Make sure you use rechargeable batteries when placing the PMR4 in the PMR4AP Twin Set charger (sold separately).
4. Operation
a. Switching the Unit On/Off – Unlocking and Locking the Unit
•
To switch the unit on, press the
•
To switch the unit off, press the
PMR4SET
6. Speaker
7. Channel up ( ) and down ( ) key
8. ON/OFF button + Confirm key
9. LCD display
10. Antenna
key for 5 seconds. You will hear a beep meaning the unit is ready for use.
key for 2 seconds.
