SlimPAR™ 56 IRC IP QRG

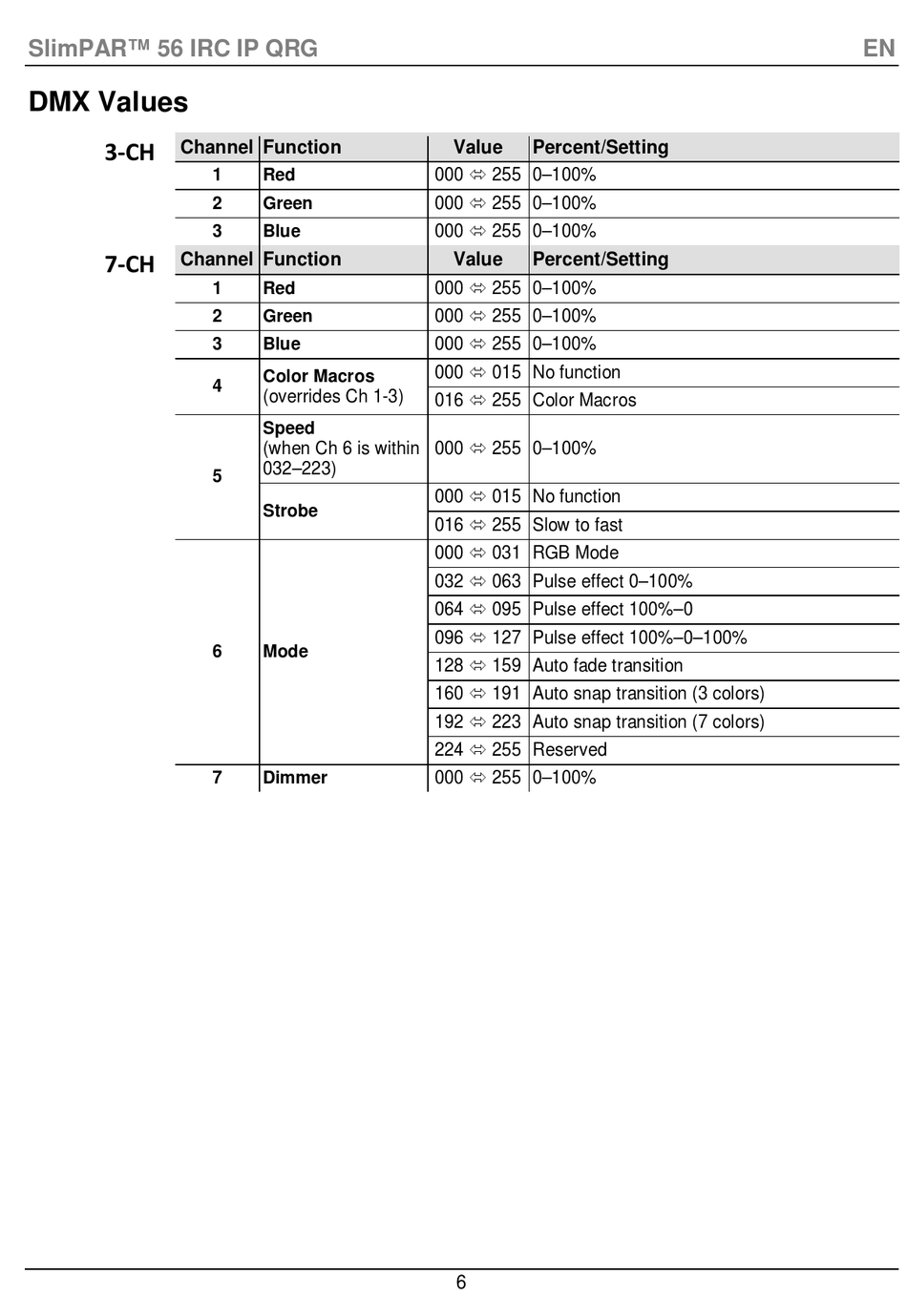

DMX Values

3-CH
Channel Function
7-CH
Channel Function
1 Red
2 Green
3 Blue
1 Red
2 Green
3 Blue
Color Macros
4
(overrides Ch 1-3)
Speed
(when Ch 6 is within
032–223)
5
Strobe
6 Mode
7 Dimmer
Value Percent/Setting
000  255 0–100%
000  255 0–100%
000  255 0–100%
Value Percent/Setting
000  255 0–100%
000  255 0–100%
000  255 0–100%
000  015 No function
016  255 Color Macros
000  255 0–100%
000  015 No function
016  255 Slow to fast
000  031 RGB Mode
032  063 Pulse effect 0–100%
064  095 Pulse effect 100%–0
096  127 Pulse effect 100%–0–100%
128  159 Auto fade transition
160  191 Auto snap transition (3 colors)
192  223 Auto snap transition (7 colors)
224  255 Reserved
000  255 0–100%
6
EN
