VSCP1 – CAMERA MOTOR CONTROLLER
1. Introduction & Features
Thank you for buying the VSCP1! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, don't install or use it and contact your dealer.
2. Specifications:
Tilt control
Pan control
Power control
Input Voltage
Output Voltage to Scanner
Operating Temperature
Connector
Construction
Dimensions
Weight

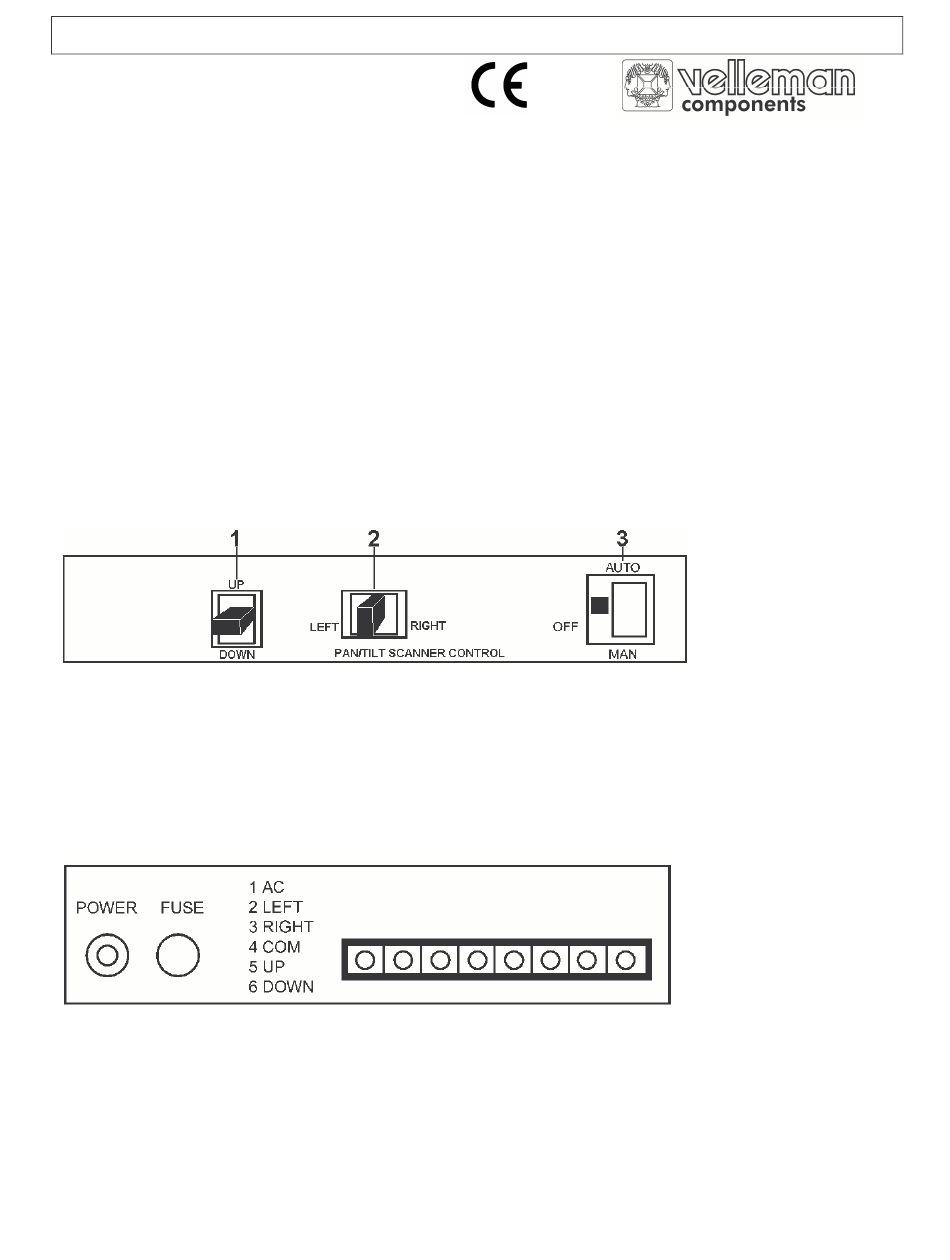

3. Front Panel
1. UP AND DOWN:
2. LEFT AND RIGHT:
3. Power:
4. Rear Panel
1. AC POWER: Terminal block no. 1
2. LEFT: Terminal block no. 2
3. RIGHT: Terminal block no. 3
4. COM: Terminal block no. 4
5. UP: Terminal block no. 5
6. DOWN: Terminal block no. 6
The information in this manual is subject to change without prior notice.
VSCP1
Paddle switch, UP/DOWN
Paddle switch, LEFT/RIGHT
Slide Switch MAN/OFF/AUTO
220-230Vac
24Vac
-10°C to +60°C
Screw Terminal-Detachable
Steel, Off-White
212 x 218 x 45mm
1.2Kg
Paddle switch, UP/DOWN
Paddle switch, LEFT/RIGHT
"AUTO" (green LED on): motor automatically turns left and right.
"MAN" (red LED on): motor can be controlled manually
"OFF" (middle position - LED off)
