MML16C – MULTICOLOURED MESSAGE BOARD
1. Introduction & Features
Thank you for buying the MML16C! It features eight colours (a total of 16 colour combinations when using coloured
backgrounds) and the ability to store up to 100 messages. Other features include:
• 30 graphic symbols such as phone, car, sunglasses, etc. to shorten messages
• 24 methods of displaying a message (scroll up from bottom to top, opened from centre, explode, etc.)
• 8 display speeds
• 3 different beep sounds can be added anywhere in the message
• the ability to display multiple messages in a defined sequence and to include the current date and time
A mounting bracket is included to enable ceiling or wall mounting.
Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit,
don't install or use it and contact your dealer.
2. Safety Instructions
• Mount the MML16C close to an electrical outlet and make sure the adapter matches the mains voltage.
• Unplug the mains lead before cleaning. Do not use liquid or aerosol cleaners ; use a damp cloth.
• Take the device to a qualified technician when the device and/or the power cord look(s) damaged.
• The MML16C is to only be used indoors. Keep it away from direct sunlight, excessive heat, moisture and dust.
• The warranty does not cover damage as a result from improper maintenance, unauthorised modification and misuse.
• Do not put heavy objects on your MML16C or spill liquids on it.
3. Remote Control
The remote control allows you to program messages into the unit. It eliminates unnecessary wiring
and enables you to edit messages from a distance. Aim the remote control straight at the MML16C
in order to ensure that it receives your commands. The device emits an audible beep each time it
receives a signal to confirm reception.

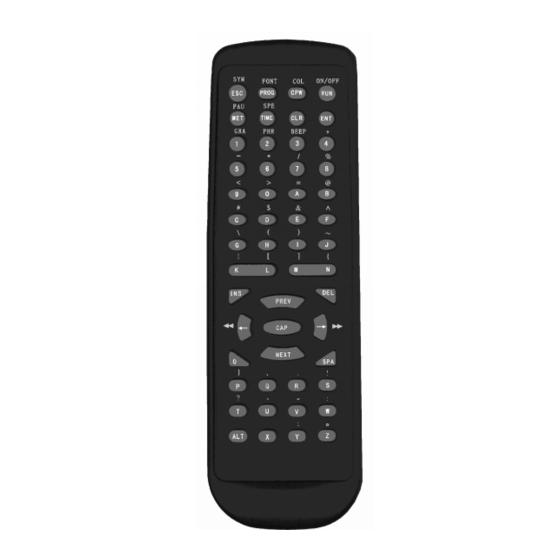

Refer to the figure at the right to view the remote control layout. The keys at the top are function
keys (i.e. for colour change or letter style change). Due to the limited space on the MML16C, the
control signal may not be shown in its exact wording.
4. Programming Functions
INS Insert a command or character.
PREV Select the previous option.
DEL Delete the command or character at the right of the screen.
← Move to the left.
CAP Toggle between upper and lower case.
→ Move to the right.
NEXT Select the next option.
SPA Insert a space in the message.
ALT (at the bottom left) To be used with another key to obtain what is printed above that
MML16C
- 1 -
key.
