iWeld CUT 80 CNC PILOT Bedienungsanleitung Seite 53

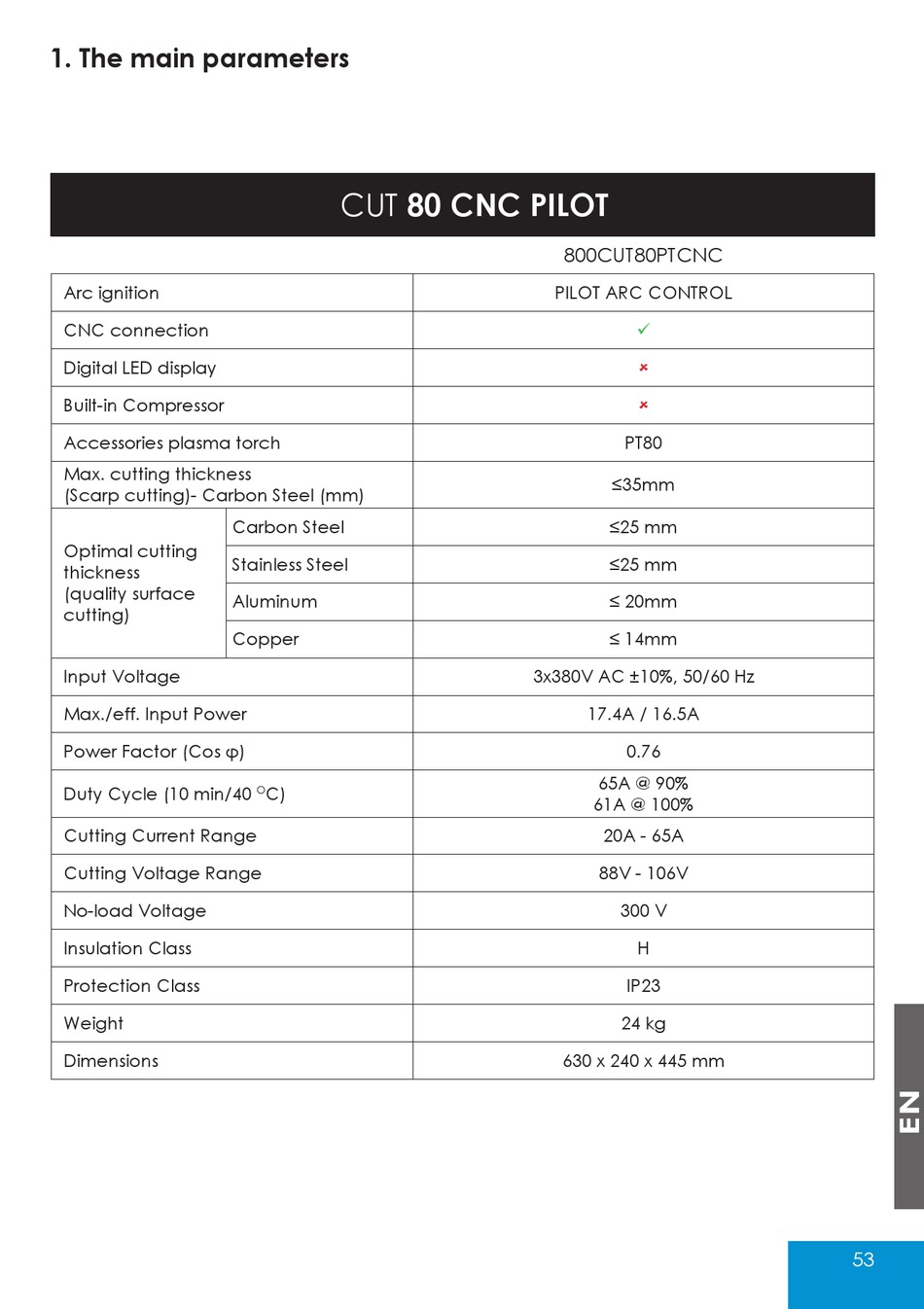

1. The main parameters
Arc ignition
CNC connection
Digital LED display
Built-in Compressor
Accessories plasma torch
Max. cutting thickness
(Scarp cutting)- Carbon Steel (mm)
Optimal cutting
thickness
(quality surface
cutting)
Input Voltage
Max./eff. Input Power
Power Factor (Cos φ)
Duty Cycle (10 min/40
Cutting Current Range
Cutting Voltage Range
No-load Voltage
Insulation Class
Protection Class
Weight
Dimensions
CUT 80 CNC PILOT
Carbon Steel
Stainless Steel
Aluminum
Copper
C)
O
800CUT80PTCNC
PILOT ARC CONTROL



PT80
≤35mm
≤25 mm
≤25 mm
≤ 20mm
≤ 14mm
3x380V AC ±10%, 50/60 Hz
17.4A / 16.5A
0.76
65A @ 90%
61A @ 100%
20A - 65A
88V - 106V
300 V
H
IP23
24 kg
630 x 240 x 445 mm
53
