PSSMV13 – SWITCHING MODE UNIVERSAL REGULATED ADAPTER 150W
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialised
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the PSSMV13! Please read the manual thoroughly before bringing this device into service. If the
device was damaged in transit, don't install or use it and contact your dealer.
Velleman will not be held responsible for damaged or lost software or damage to a connected device.
Before connecting a device you should make sure that both the voltage and polarity are correct. Do not
change either voltage or polarity during operation. Contact your local dealer if in doubt.

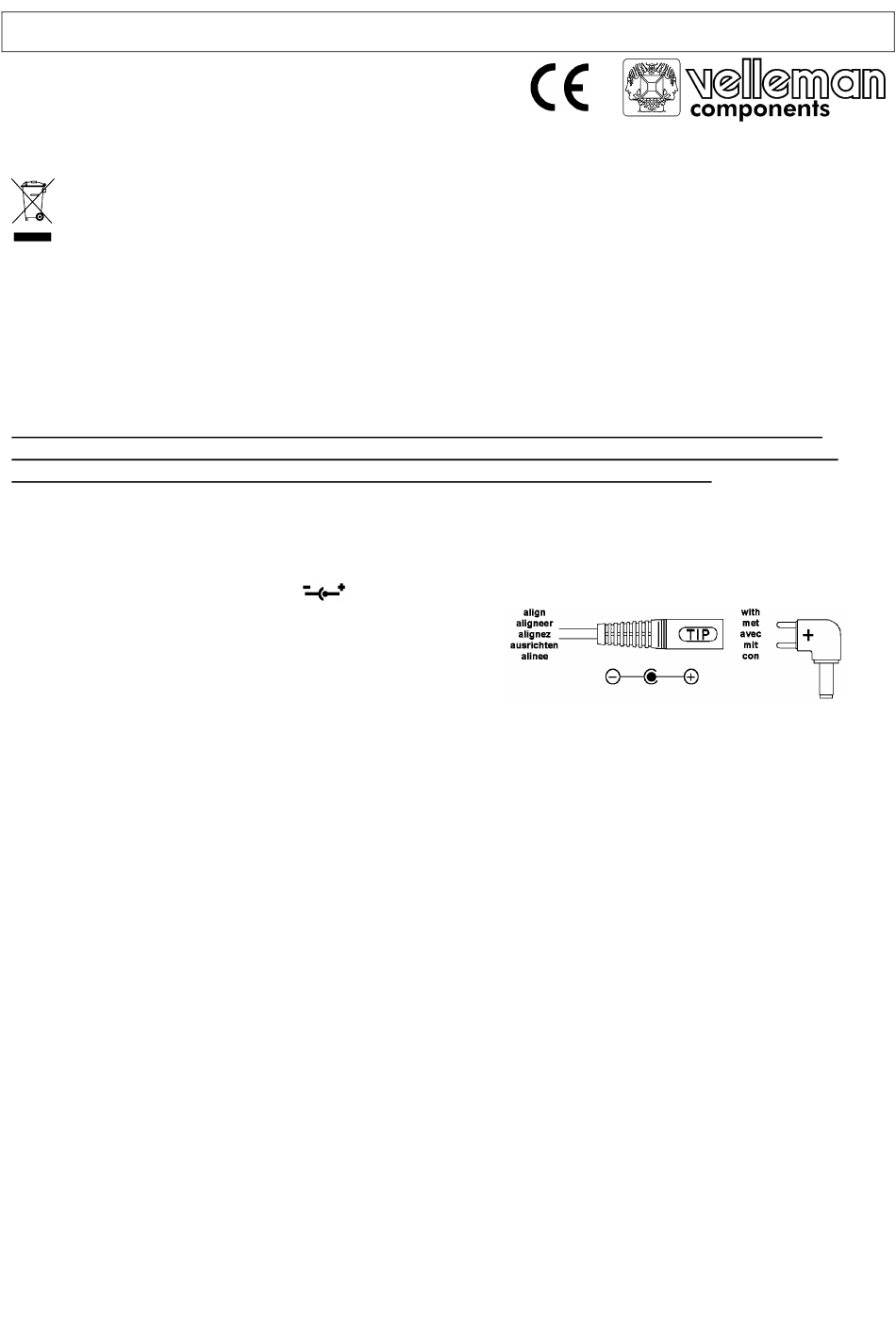

2. Polarity
• Ensure correct polarity. The plugs can only be connected so as to obtain a positive tip voltage.
• For appliance with positive polarity (
symbol appears in front of the word "TIP".
3. Voltage
• Set the DC voltage selector at the desired voltage position before connecting to your appliance. 6 voltages are
available: 15VDC, 16VDC for a consumption of 8.5A; 18VDC and 19VDC for a consumption of 8A; 20VDC for a
consumption of 7.5A; 22VDC for a consumption of 6.5A; 24VDC for a consumption of 6A. Find the required
voltage in your appliance manual.
An incorrect voltage setting can damage your connected appliance. Consult with your local dealer if in
doubt.
4. Use
• Insert the appropriate DC outlet plug into your appliance socket.
• Connect the power supply into the mains. The LED indicator will light instantly.
• Switch on your appliance.
• The indicator will light and stay on only when set to a certain voltage.
5. Caution
• Do not short circuit the terminals.
• Ensure the correct voltage is used as continuous excess voltage could damage your equipment.
• Do not try to use this power supply with appliance requiring more than the rated power of the power supply.
• Make sure the total loading does not exceed the rated output current of the power supply.
• Do not attempt to open this unit.
• Remove from the mains when not in use.
• Only have an authorised dealer replace the power cord it if necessary.
• It is essential that the device be earthed.
PSSMV13
), connect the adapter in such a manner that the adapter's positive
- 1 - VELLEMAN
